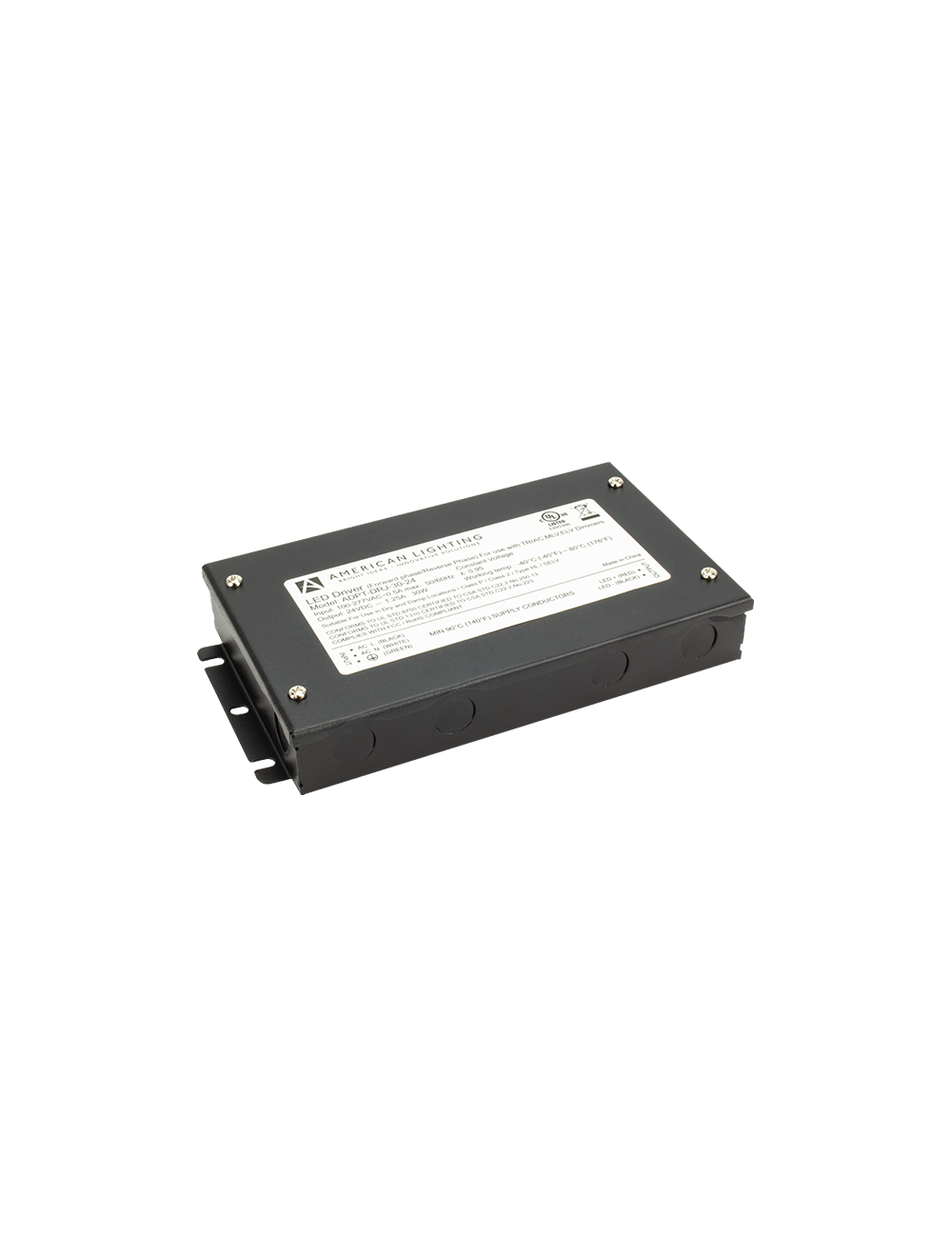

American Lighting ADPT-DRJ-30-12 30 Watt 12 Volt Constant Voltage Driver with Junction

Be the first to review this product

The American Lighting ADPT-DRJ-30-12 is a 30W constant voltage LED driver designed for 12V DC applications.

$94.86

Lead Time

In Stock - Quick Ship

Return Policy

30 Days +Fee Terms

SKU

ADPT-DRJ-30-12

Details

Features
• Input Voltage: 100–277V AC
• Output Voltage: 12V DC
• Wattage: 30W
• Output Current: 2.5A
• Minimum Load: 3W
• Power Factor: 0.99 at 120V, 0.94 at 277V
• Dimming Compatibility: Works with standard TRIAC, MLV, and ELV dimmers; forward and reverse phase compatible
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Certifications: cULus Listed, FCC Compliant, Wet Location Rated
• Housing: Slim aluminum design (1.02" height) with integrated junction box and knockouts for easy wiring
• Cooling: Free air convection
• Dimming Control: PWM output with 10–100% load operation
• Length: 6.49 inches
• Width: 3.54 inches
• Height: 1.02 inches
• Weight: 1.80 lbs

Specifications

More Information
Part Number	ADPT-DRJ-30-12
Manufacturer	American Lighting
Watts	30 Watts
Input Voltage	100V-277V
Output Voltage	12V
Minimum Operating Temperature	-40°F
Maximum Operating Temperature	140°F
Dimmable	Yes
Dimensions	6.49" x 3.54" x 1.02"
Certifications	, ,
Warranty	2 Year
Specification Sheet	ADPT-DRJ spec Sheet
Lead Time	In Stock - Quick Ship
UPC Code	714176015781
