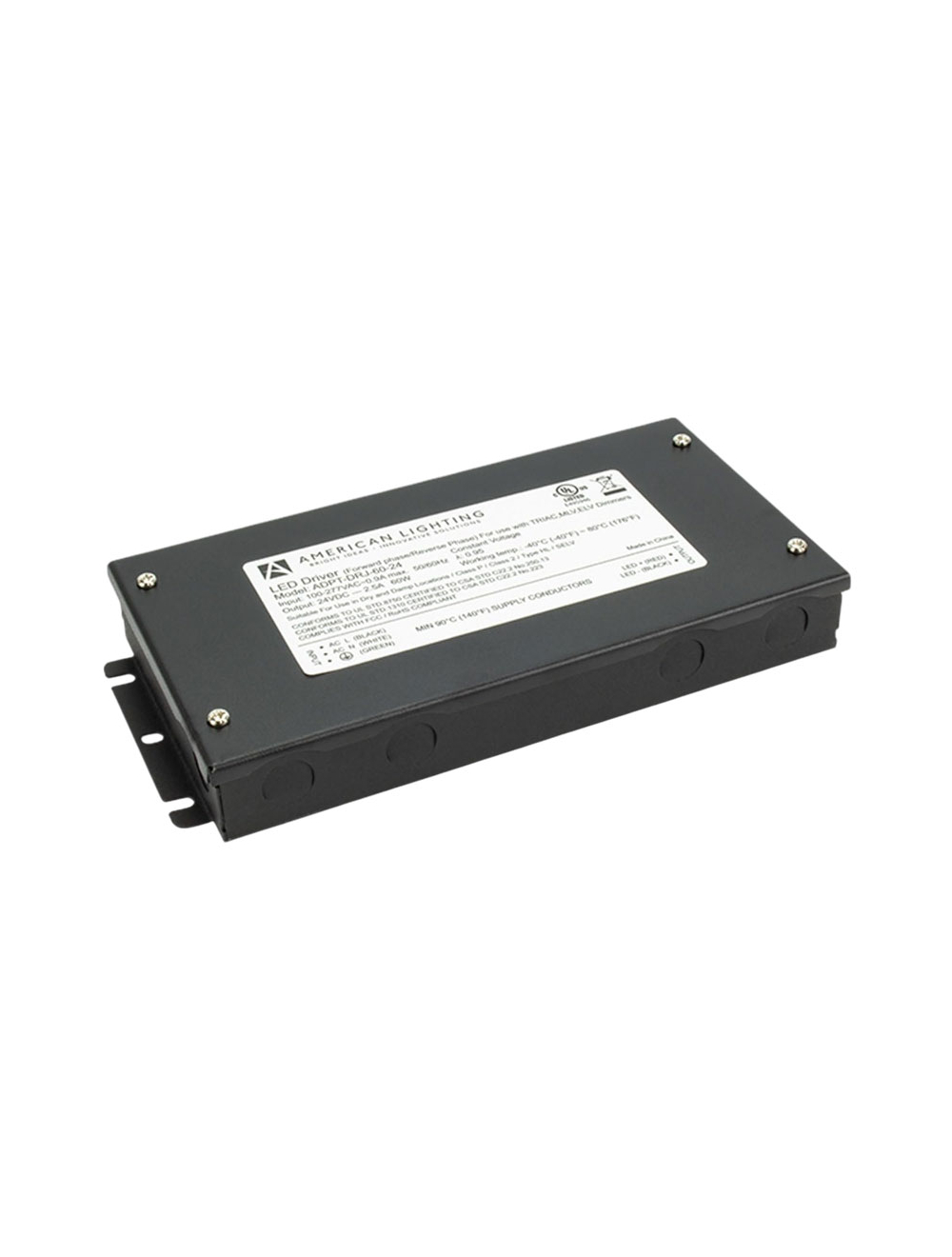

American Lighting ADPT-DRJ-60-12 30 Watt 12 Volt Constant Voltage Driver with Junction

Be the first to review this product

The American Lighting ADPT-DRJ-60-12 is a 60W constant voltage LED driver designed for 12V DC applications.

$143.55

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days +Fee Terms

SKU

ADPT-DRJ-60-12

Details

Features
• Input Voltage: 100–277V AC
• Output Voltage: 12V DC
• Wattage: 60W
• Minimum Load: 6W
• Power Factor: 0.98 at 120V AC, 0.95 at 277V AC
• Dimming Compatibility: Compatible with standard TRIAC, MLV, and ELV dimmers; forward and reverse phase compatible
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Certifications: cULus Listed, FCC Compliant, Wet Location Rated
• Housing: Slim aluminum design with integrated junction box and knockouts for easy wiring
• Cooling: Free air convection
• Dimming Control: PWM output with 10–100% load operation
• Length: 6.49 inches
• Width: 3.54 inches
• Height: 1.02 inches
• Weight: 1.80 lbs

Specifications

More Information
Part Number	ADPT-DRJ-60-12
Manufacturer	American Lighting
Watts	60 Watts
Input Voltage	100V-277V
Output Voltage	12V
Minimum Operating Temperature	-40°F
Maximum Operating Temperature	140°F
Dimmable	Yes
Dimensions	6.49" x 3.54" x 1.02"
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
