IP54 Tunable CCT, 24V High Output, 2700k to 6000k, 16.4ft

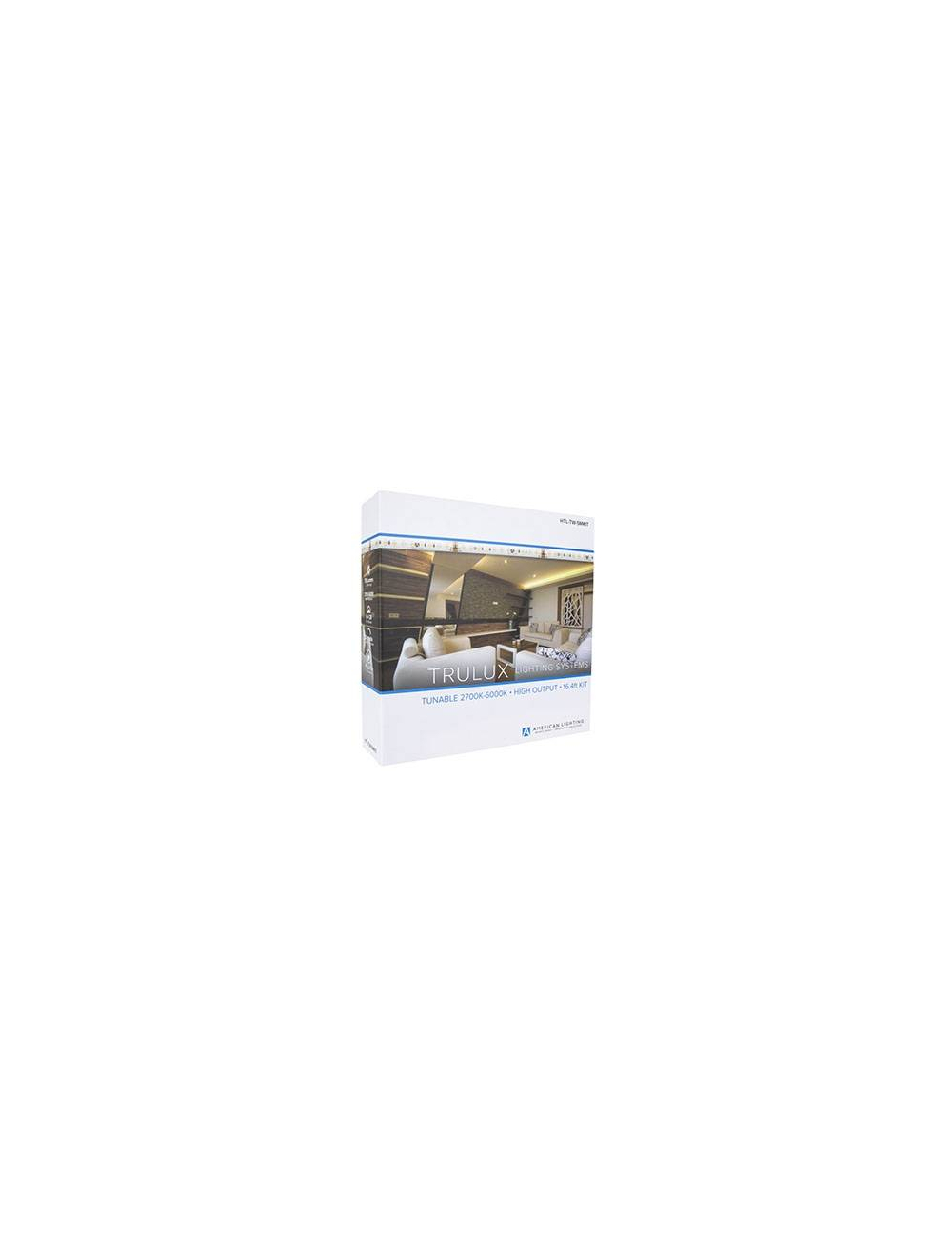

American Lighting Trulux Kit, HTL-TW-5MKIT
TRULUX KITS
Trulux tape light kits come with everything you need to create linear lighting effects in your home or commercial property. No more piecing together a system or calculating wattage loads because each kit comes standard with hand-held remote, driver, receiver, connectors, and tape light.
IP54 Tunable CCT, 24V High Output, 2700k to 6000k, 16.4ft
American Lighting Trulux Kit, HTL-TW-5MKIT
TRULUX KITS
Trulux tape light kits come with everything you need to create linear lighting effects in your home or commercial property. No more piecing together a system or calculating wattage loads because each kit comes standard with hand-held remote, driver, receiver, connectors, and tape light.
PRODUCT DETAILS
• Ready to install 24V DC kit with plug and play connection
• Available in Single Color, Tunable CCT, RGB, and RGB+WW kits
• Each tape light kit has a maximum run of 16.4 feet (included plug-in power supply is rated for 2A -STL or 3A-HTL)
• Wireless remote features brightness and color adjustment settings
• cULus Listed (dry location)
Trulux Kits Include:
(1) 16.4ft (5m) Reel of Trulux® IP54 (unjacketed) tape light
(1) Inline LED Controller/Receiver
(1) Radio Frequency Remote Control
(1) 24V DC Power Supply (2A for STL and 3A for HTL)
(1) 15ft Reel of wire (22AWG for Single Color & 20AWG for TW/RGB/RGBW)
(3) Tape-to-Tape snap connectors
(6) Tape-to-Wire snap connectors
Part Number | HTL-TW-5MKIT |
---|---|
Manufacturer | American Lighting |
Input Voltage | 24V |
CRI | 90+ |
Color Temperature | 2700 Kelvin, 2800 Kelvin, 2900 Kelvin , 3000 Kelvin, 3500 Kelvin, 4000 Kelvin, 4100 Kelvin, 4500 Kelvin, 4700 Kelvin, 5000 Kelvin, 5100 Kelvin, 5300 Kelvin, 5500 Kelvin, 5700 Kelvin, 6000 Kelvin |
Lumens | 155lm/ft |
Rated Life | 50,000 hours + |
Dimmable | Yes |
Beam Angle | 120° |
Minimum Operating Temperature | -25°C (-13°F) |
Maximum Operating Temperature | 40°C (104°F) |
Dimensions | 16.4ft |
Certifications | |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
UPC Code | 714176014265 |
