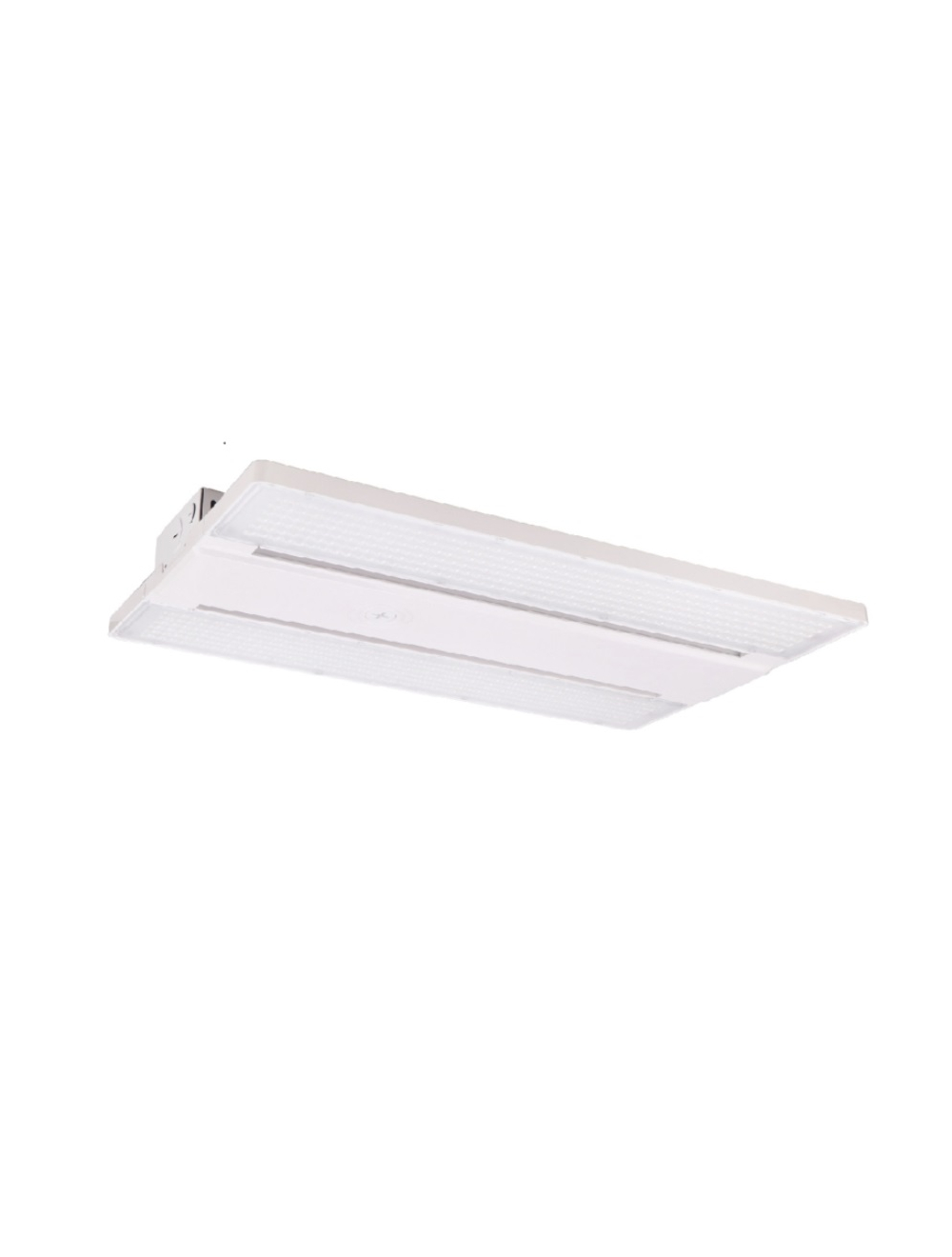

ATG HBLI160 Stellar 160W LED Linear High Bay 5000K
ATG HBLI160 Stellar 160W LED Linear High Bay 5000K
Product Description:
ATG’s Stellar Linear High Bay is engineered for high-performance illumination in large indoor environments. The Linear High Bay’s luminous efficacy and uniform light distribution stand out in the class, with a diffusing lens carefully selected to minimize glare. To maximize light quality across applications, the fixture is available with both clear and frosted lenses. The housing’s elegant and versatile design has seen demand in venues ranging from large retailers, indoor gymnasiums, and high-ceilinged shopping centers, to industrial warehouses and distribution centers.
ATG HBLI160 Stellar 160W LED Linear High Bay 5000K
Technical Specifications:
Input Voltage: 120-277VAC, 347-480VAC
Power Consumption: 103.9W, 162.3W, 239.4W, 321.3W
Dimensions: 23.6*14.6*4.5 in, 35.4*14.6*5.2 in
Lumens: 13300 lm, 21200 lm, 32000 lm, 43500 lm
CCT: 5000 K
Color Accuracy: CRI 85
PF/THD: >0.9/<20%, >0.9/<10%
Housing: Aluminum & PC
| Part Number | HBLI160-5K |
|---|---|
| Manufacturer | ATG Electronics |
| Lumens | 21200 |
| CRI | 85 |
| Color Temperature | 5000 Kelvin |
| Beam Angle | 180° |
| Rated Life | 150,000 hours + |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 104°F |
| Dimensions | 23.6*14.6*4.5 |
| Certifications |  ,  ,  ,  ,  |
| Warranty | 10 Year |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
