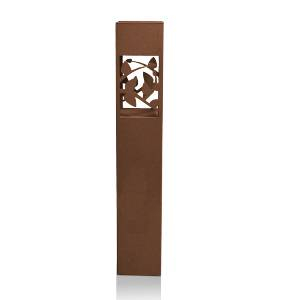

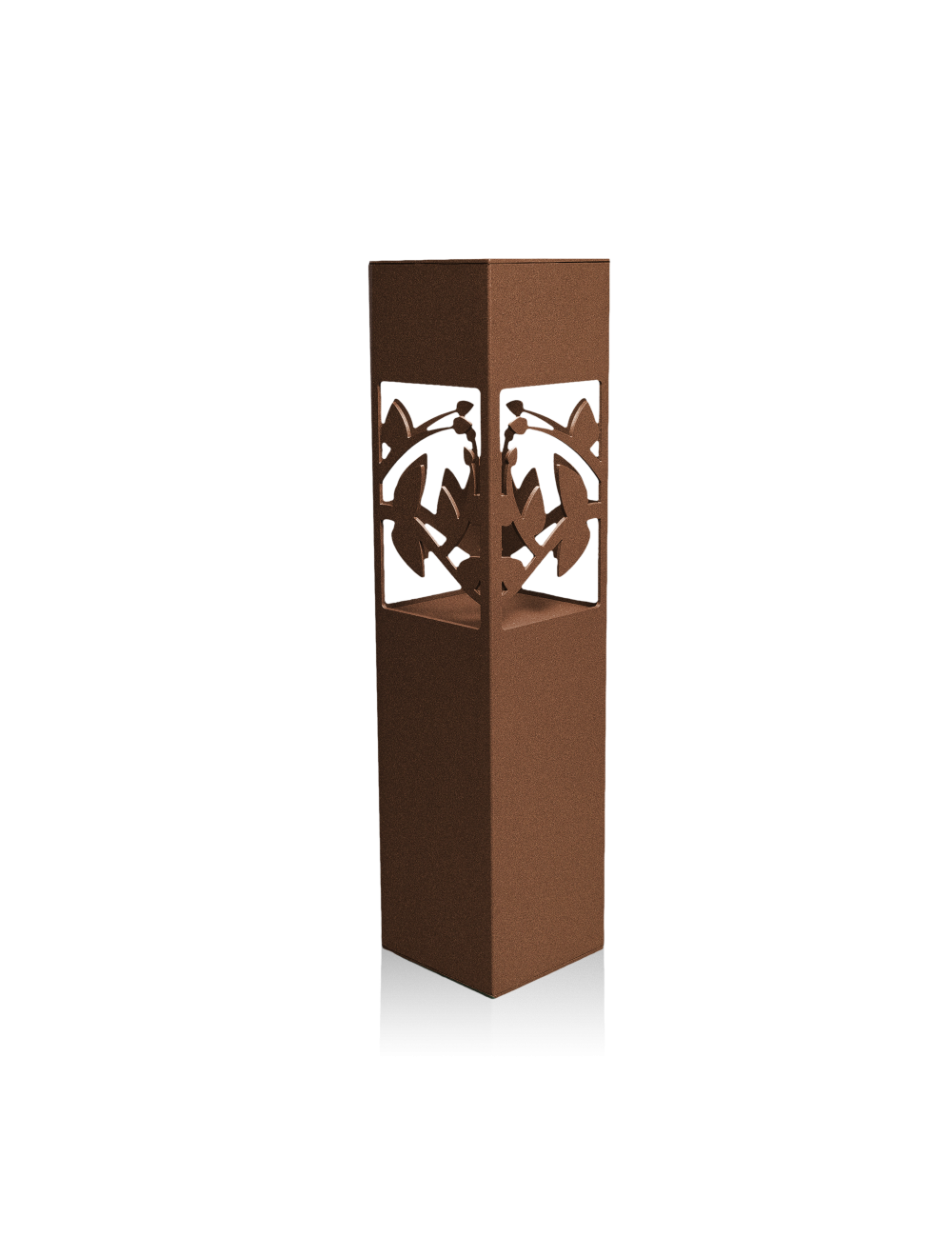

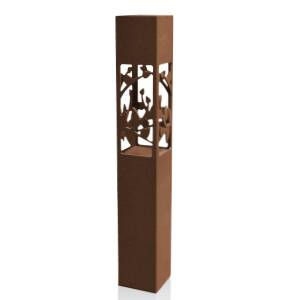

From Dauer’s Silhouette Collection, D-Vine bollards are crafted in America from architectural-grade aluminum for lifelong service. Six-inch-square (6x6x25 and 6x6x42) and four-inch-square (4x4x25) models available. Anchors securely and easily to decks or concrete. Lawn-stake mounting base available. Variety of powdered-coated colors available. Available with one or more blacked-out sides, or designs on all four sides is standard. Powered by two watts of warm-hued, energy-saving 12-volt Dauer LED technology. UL-listed.
ORDERING CODE:
489529
SPECIFICATIONS SIZE:
6” X 6” X 25”
HOUSING: Architectural-grade (6063-T6) 1/8” aluminum. 3/16”-thick aluminum base plate.
STANDARD POWDER COAT COLORS:
PPG PCT23104 Vintage Bronze Texture is standard for the D-Vine. Available in additional colors per the chart below. Other custom colors are also available.
SOCKET AND LAMP:
12V 2W 100° 2700K MR8 Dauer LED replaceable lamp (486801) included. ZINC ANODE: 3/8-16 NPT replacement zinc anode (502021) included.
MOUNTING OPTIONS:
Standard: Mounts to decking with included deck mount.
Kit 489600: 18-inch turf mounting stake option with marine-grade stainless bolts, washers, nuts.
Kit 489601: Poured concrete kit. Galvanized anchor hardware (four ½” X 8” bent anchor bolts, with 12 nuts, 4 washers, polycarbonate bolt-pattern template/insulator, and PVC electrical sweep).
OTHER OPTIONS:
Available in unpainted 3/8” steel with stainless-steel base. Four-sided design is standard, but can be ordered with black-out on 1, 2, or 3 sides. Any custom color is available. Custom designs and logos available. Interior kit available.
WIRING:
Prewired with 5-foot 18/2 lead.
WARRANTY:
Lifetime on fixture. Ten-year warranty on powdercoating. Five-year warranty on replaceable LED lamp.
Part Number | 489529 |
---|---|
Manufacturer | Dauer |
Input Voltage | 12V |
Dimmable | No |
Dimensions | 6" x 6" x 25" |
Certifications | |
Warranty | 10 Year |
Lead Time | Not Specified |
