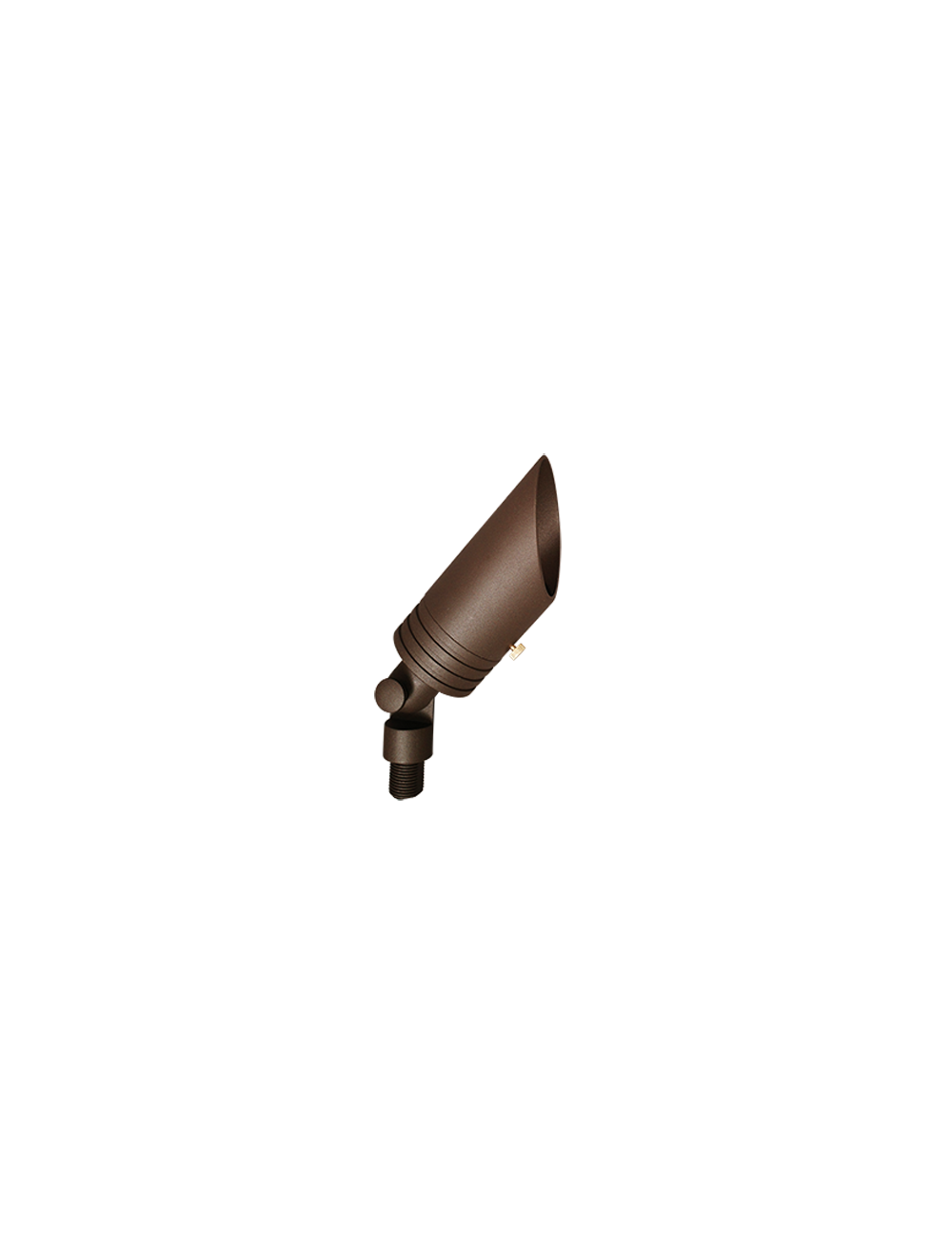

Dauer LEX Uplight Fixture 490105
The Lex uplight has a shroud to control glare. A very wide range of MR16 lamp intensities, beam spreads, and hues are available to maximize your creative expression. Made out of cast aluminum. Five-year warranty.
SPECIFICATIONS
HOUSING:
Cast aluminum. Threaded housing with O-ring.
FINISH:
Architectural bronze. Custom powder coated colors available.
LENS:
Clear flat tempered glass.
SOCKET/LAMP HOLDER:
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 6W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with 5’ pigtail of 18/2 cable.
WARRANTY:
Five years.
| Part Number | 490105 |
|---|---|
| Manufacturer | Dauer |
| Watts | 2 Watts, 4 Watts, 5 Watts, 6 Watts, 7 Watts |
| Color Temperature | 2700 Kelvin, 3000 Kelvin |
| Input Voltage | 12V |
| Dimmable | Yes |
| Dimensions | 3.125" x 8" |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
