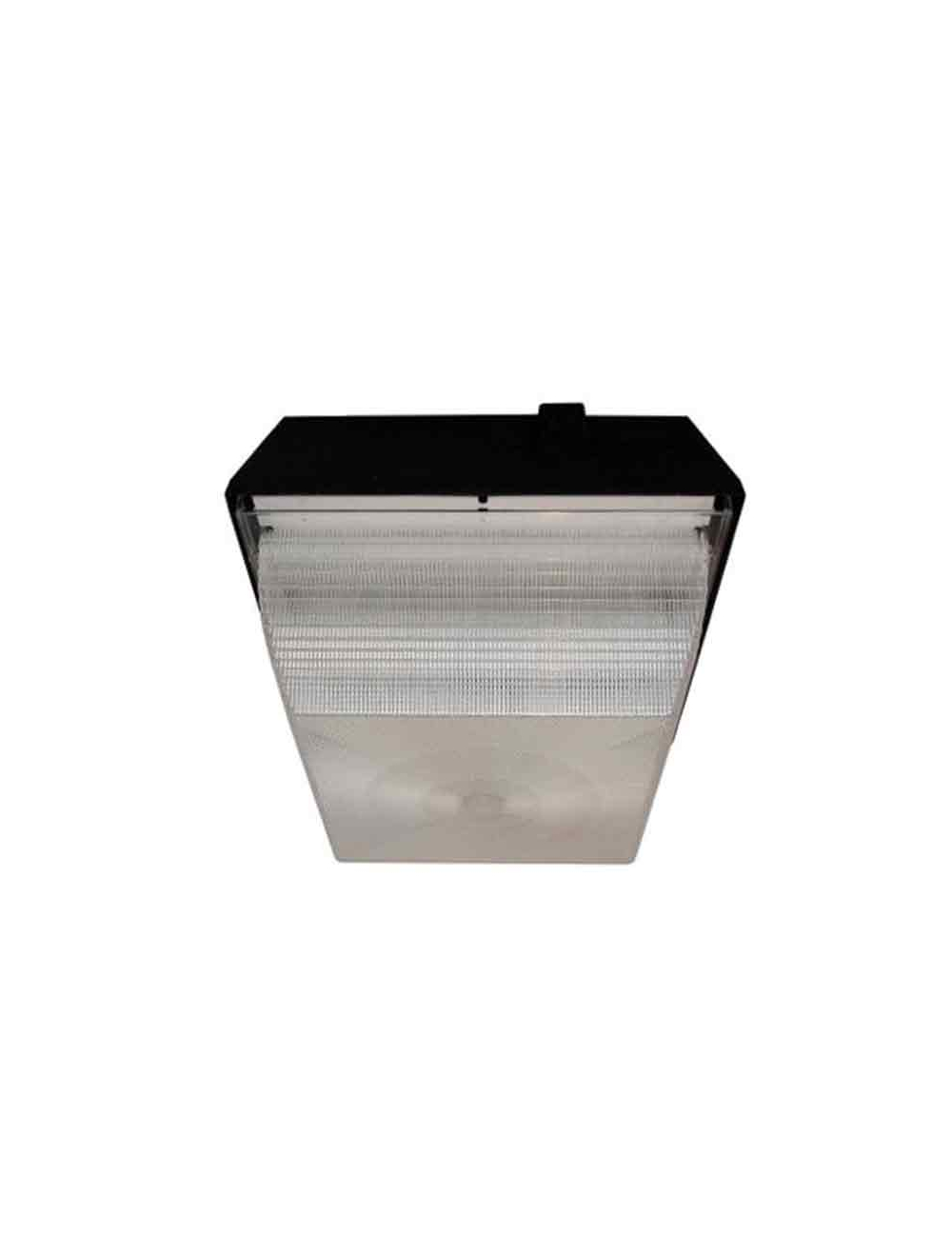

Product Description: The DuraGuard 12X12Q Medium Vandal Resistant Ceiling Canopy luminaire is available for surface or pendant mounting configurations with an optical distribution designed specifically to replace HID lighting systems up to 175w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 12 to 20 feet can be used based on light level and uniformity requirements.
** Accessories such as Replacement Parts, Custom Finishes, Photocells, Emergency Battery Backup and Surge Protection are available upon request. Please inquire for more information. Fees Apply.
Description: The DuraGuard 12X12Q Medium Vandal Resistant Ceiling Canopy luminaire is available for surface or pendant mounting configurations with an optical distribution designed specifically to replace HID lighting systems up to 175w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 12 to 20 feet can be used based on light level and uniformity requirements.
Specifications and Features:
Housing: Die Cast Aluminum Housing, ½˝ Coin Plugs with O-rings for Conduit & Photocell on Two Sides & Back, Nickel-Plated Stainless Steel Hardware.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750. (Damp Locations When Used with QM.) IP65 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Standard Clear UV-Stabilized Polycarbonate Prismatic or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens.
Mounting Options: Mount Directly Over a 4 ̋ Recessed Outlet Box, or Use 1⁄2 ̋ Surface Conduit or Quick-Mount Bracket.
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Wattage: Array: 45.4w, System: 52.6w (175w HID Equivalent)
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with DuraGuard Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Part Number | 12X12Q |
---|---|
Manufacturer | DuraGuard |
Watts | 45 Watts |
Lumens | 5000K: 3,344; 4000K: 3,211 |
Lumens Per Watt | 5000K: 134; 4000K: 128 |
CRI | 80 |
Color Temperature | 4000 Kelvin, 5000 Kelvin |
Beam Angle | 360° |
Input Voltage | 120V-277V |
Rated Life | 150,000 hours + |
Minimum Operating Temperature | -40°F |
Maximum Operating Temperature | 104°F |
Dimensions | Width (D) 9˝ Length (B) 9˝ Height (A) 7¼˝ |
Certifications | |
Warranty | 5 Year |
