Product Description:

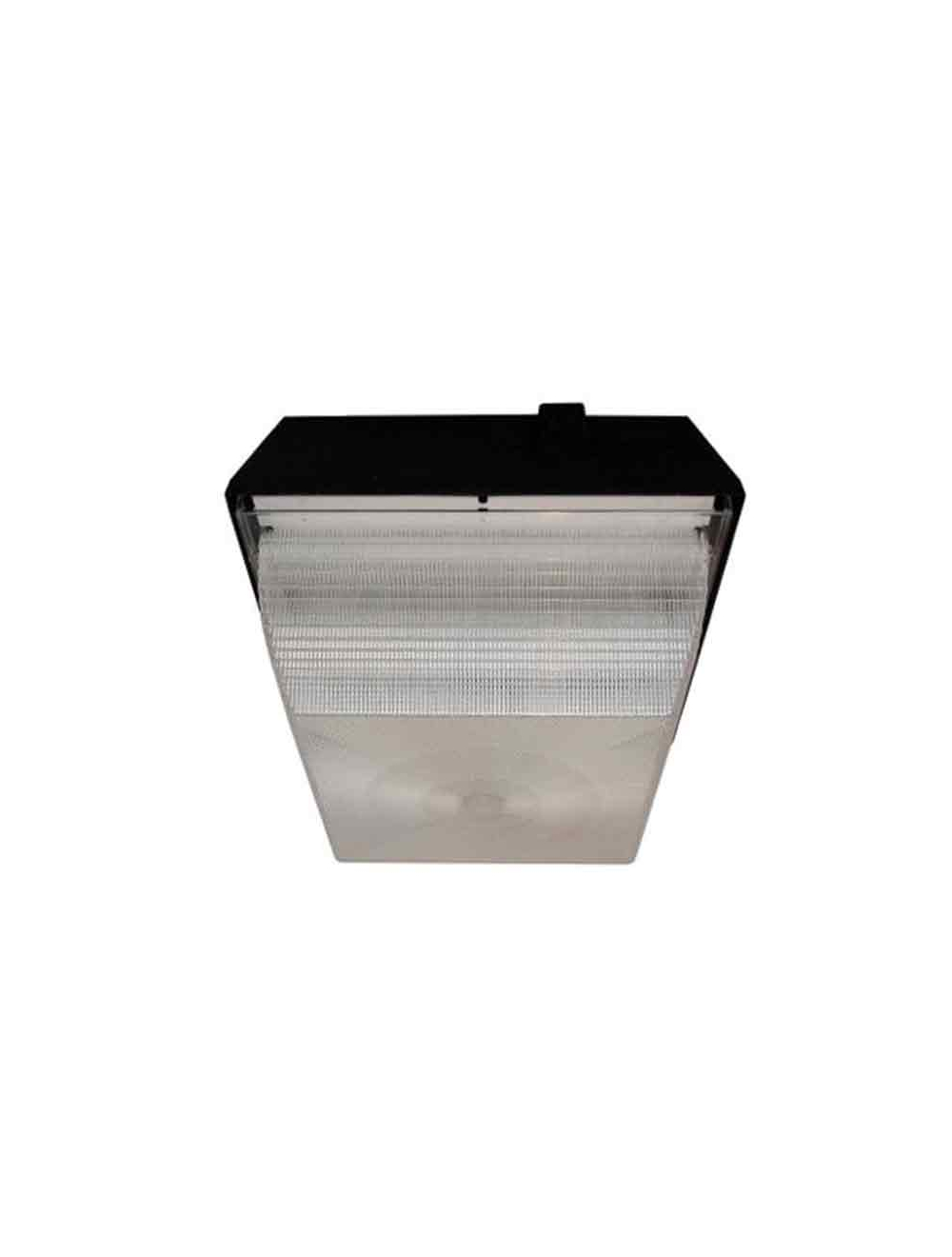

The DuraGuard 9X9Q Small Vandal Resistant Ceiling Canopy luminaire is available for surface or pendant mounting configurations with an optical distribution designed specifically to replace HID lighting systems up to 100w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 14 feet can be used based on light level and uniformity requirements.
** Accessories such as Replacement Parts, Custom Finishes, Photocells, Emergency Battery Backup and Surge Protection are available upon request. Please inquire for more information. Fees Apply.
Specifications and Features:
Housing: Die Cast Aluminum Housing, ½˝ Coin Plugs with O-rings for Conduit & Photocell on Two Sides & Back, Nickel-Plated Stainless Steel Hardware.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750. IP55 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Standard Clear Polycarbonate Prismatic Lens
Mounting Options: Mount Directly Over a 4˝ Recessed Outlet Box, or Use ½˝ Surface Conduit.
Dimensions: Width: (D) 9˝ Length: (B) 9˝ Height: (A) 7¼˝
Part Number | 9X9Q |
---|---|
Manufacturer | DuraGuard |
Watts | 23 Watts |
Lumens | 5000K: 3,344; 4000K: 3,211 |
Lumens Per Watt | 5000K: 134; 4000K: 128 |
CRI | 80 |
Color Temperature | 4000 Kelvin, 5000 Kelvin |
Beam Angle | 360° |
Input Voltage | 120V-277V |
Rated Life | 150,000 hours + |
Minimum Operating Temperature | -40°F |
Maximum Operating Temperature | 104°F |
Dimensions | Width (D) 9˝ Length (B) 9˝ Height (A) 7¼˝ |
Certifications | |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
