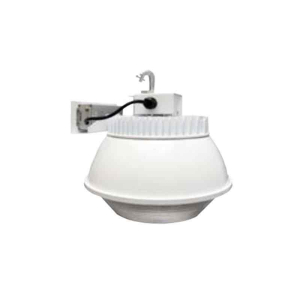

The DuraGuard HB31 Astra Low Profile 16" Highbay is available with a choice of LumaLens and clear UV-stabilized polycarbonate upper reflector and lower lens combinations to provide up to 30% uplight component and reduce direct glare. The fixture is designed to replace HID lighting systems up to 400w MH. Typical high bay lighting applications include convention centers, gymnasiums, natatoriums indoor sports facilities, retail stores and manufacturing facility lighting. Suitable for 14 to 40 foot mounting heights based on light level and uniformity requirements.
Description: The DuraGuard HB31 Astra Low Profile 16" Highbay is available with a choice of LumaLens and clear UV-stabilized polycarbonate upper reflector and lower lens combinations to provide up to 30% uplight component and reduce direct glare. The fixture is designed to replace HID lighting systems up to 400w MH. Typical high bay lighting applications include convention centers, gymnasiums, natatoriums indoor sports facilities, retail stores and manufacturing facility lighting. Suitable for 14 to 40 foot mounting heights based on light level and uniformity requirements.
Specifications and Features:
Housing: Die Cast Aluminum Housing with External Heat Sinks for Cooler Operating Temperatures. Externally Mounted Driver.
Listing & Ratings: CSA: Listed for Dry Locations, ANSI/UL 1598, 8750 IP65 (with Lenses); IP44 (Open)
Finish: White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Clear UV-Stabilized Polycarbonate or SoftLED LumaLens UV-Stabilized Polycarbonate Vandal- Resistant Refractors. Can be Used Open or with Clear Prismatic UV-Stabilized Polycarbonate or SoftLED LumaLens Prismatic UV-Stabilized Polycarbonate Bottom Lenses.
Mounting Options: Mount with Included 3/4" Die Cast Hook. Adjustable Junction Box Also Accepts 3/4" Conduit.
Wattage: 120w: COB: 120w; System: 123w (250w HID Equivalent)
200w: COB: 200w; System: 197w (400w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz (200w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Part Number | HB31C3 |
---|---|
Manufacturer | DuraGuard |
Watts | 120 Watts, 200 Watts |
Lumens | 22,873-26,997 |
CRI | 80 |
Color Temperature | 5000 Kelvin |
Input Voltage | 120V-277V, 480V |
Dimmable | Yes |
Minimum Operating Temperature | -40 ° F |
Maximum Operating Temperature | 122 ° F |
Dimensions | 16" Diam. x 18" H |
Certifications | |
Warranty | 5 Year |
Lead Time | In Stock - Quick Ship |
