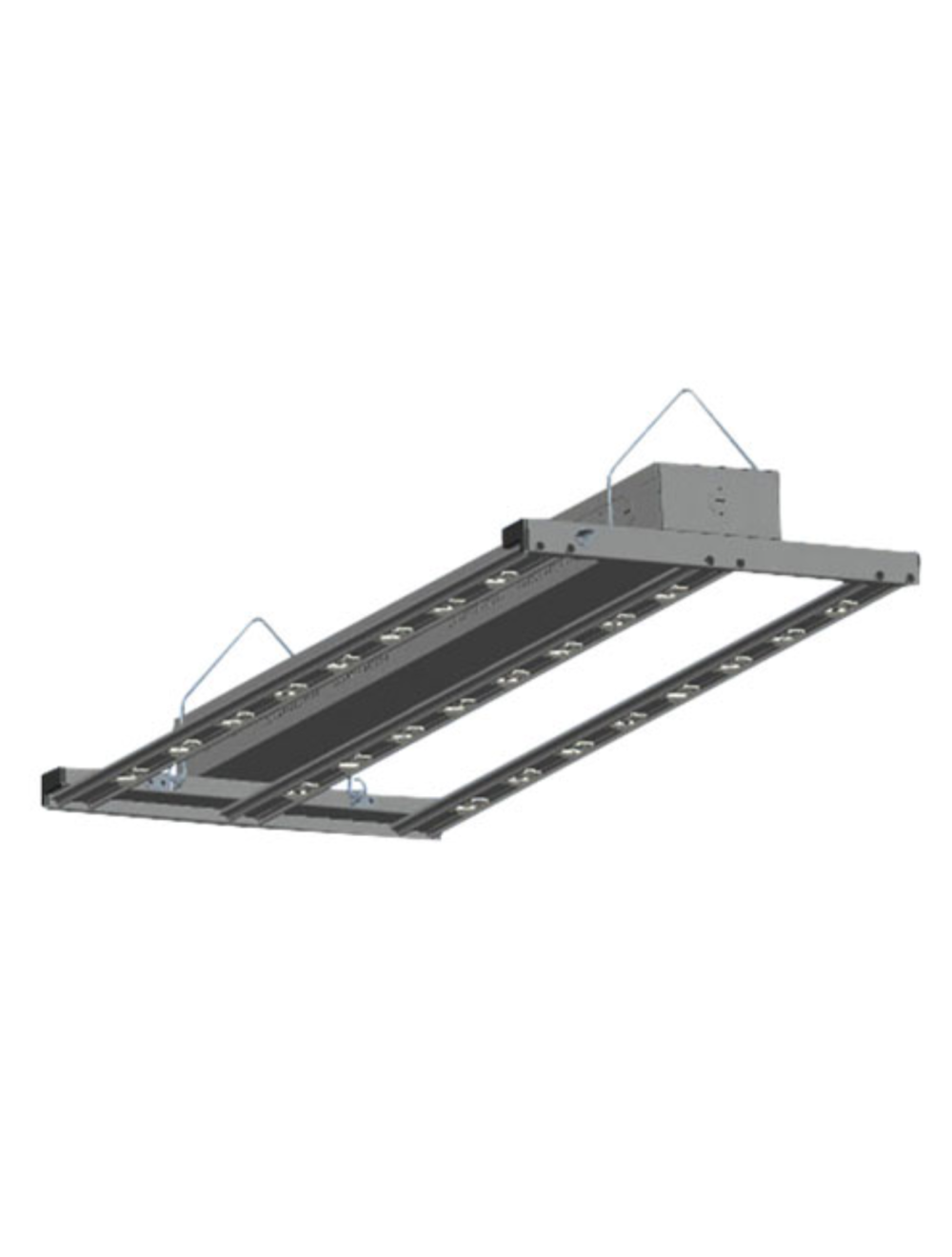

The low profile DuraGuard HBLC3 Linear LED Highbay features a wide optical distribution designed to replace HID lighting systems from 250w to 1000w MH. Typical high bay lighting applications include warehouses, manufacturing facilities, gymnasiums, indoor sports facilities, and retail and big box store lighting. Suitable for 10 to 45 foot mounting heights based on light level and uniformity requirements.
Description: The low profile DuraGuard HBLC3 Linear LED Highbay features a wide optical distribution designed to replace HID lighting systems from 250w to 1000w MH. Typical high bay lighting applications include warehouses, manufacturing facilities, gymnasiums, indoor sports facilities, and retail and big box store lighting. Suitable for 10 to 45 foot mounting heights based on light level and uniformity requirements.
Specifications and Features:
Housing: Extruded Aluminum Rails for LEDs. The LEDs have UV-Stabilized Polycarbonate Lenses and are Potted with High Temperature Silicone Epoxy. Stamped Steel Driver Housing.
Listing & Ratings: CSA: Listed for Dry Locations, ANSI/UL 1598, 8750; IP54
Finish: Platinum Powdercoat Finish Over a Chromate Conversion Coating.
Mounting Options: Mount with Included V-Hangers. Includes a 3 ́ 3-Wire Cord with Leads.
Wattage:
120w COB: 120w; System: 117w; (250w HID Equivalent)
240w COB: 200w; System: 234w; (400w HID Equivalent)
320w COB: 320w; System: 312w; (400-1000w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Part Number | HBLC3 |
---|---|
Manufacturer | DuraGuard |
Watts | 120 Watts |
Lumens | 16,686-44,485 |
CRI | 80 |
Color Temperature | 5000 Kelvin |
Beam Angle | 100° |
Dimmable | Yes |
Minimum Operating Temperature | -40 ° F |
Maximum Operating Temperature | 122 ° F |
Dimensions | 36.25" L x 16" W x 3.5" H |
Warranty | 5 Year |
Lead Time | In Stock - Quick Ship |
