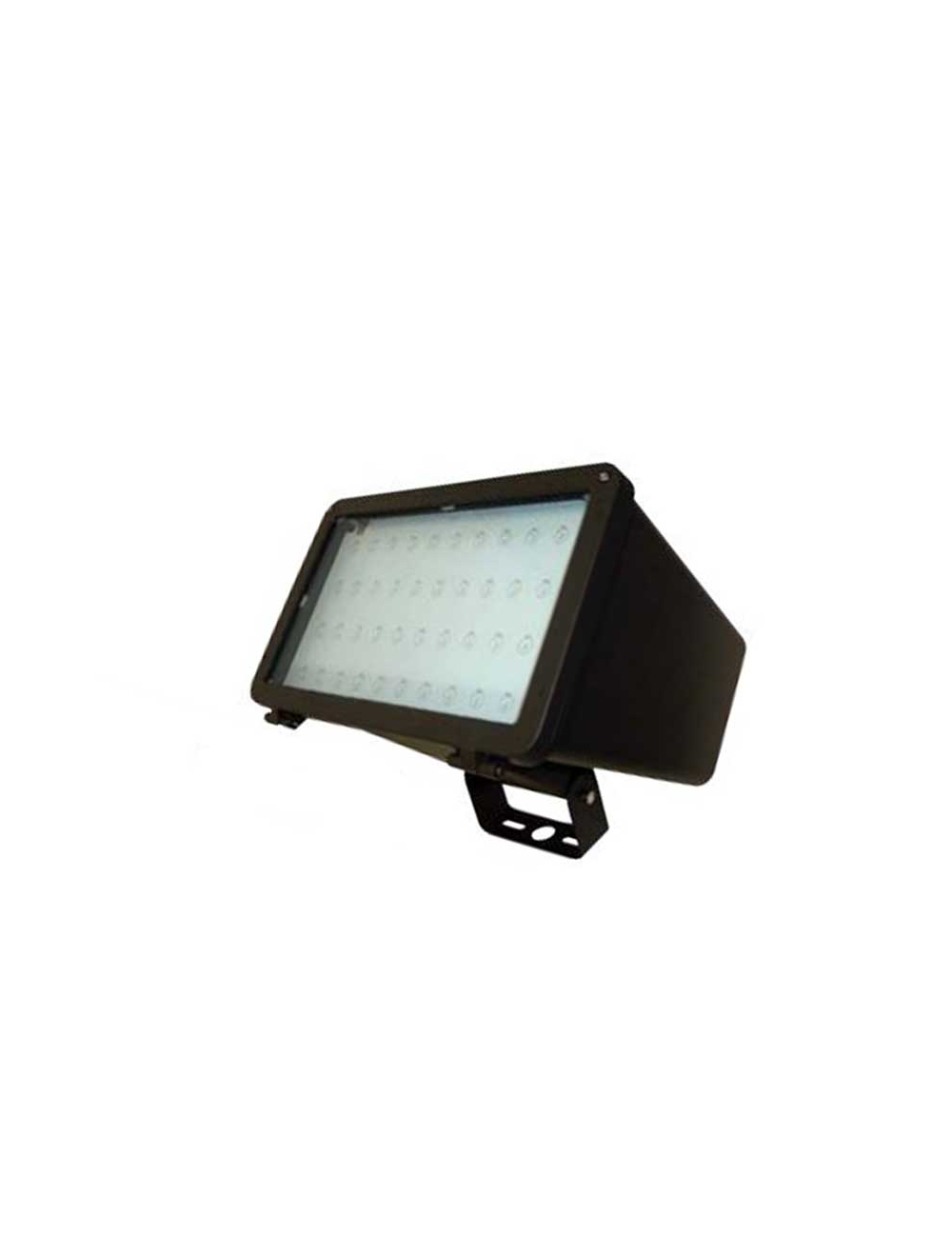

The DuraGuard HFLQ Horizontal Large Floodlight luminaire is available with a choice of yoke or slip fitter mounting configurations and medium flood optical distribution designed to replace HID lighting systems up to 400w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings, and medical facilities. Mounting can be accomplished using a wide variety of attachment accessories for wall, pole, and ground locations to heights of 25 feet based on light level and uniformity requirements.
Housing: Die-Cast Aluminum Housing & Hinged Gasketed Lens Frame. Nickel-Plated Stainless Steel Hardware.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens or Tempered Clear Flat Prismatic Glass Lens.
Mounting Options: Stamped Steel Small or Large Yoke, or Adjustable Die Cast Slipfitter with Angle Indicator.
DuraLED LED: Aluminum Boards
Wattage: Array: 68.2w, System: 75w (400w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with DuraGuard Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty: 5-Year Warranty for -40°C to +50°C Environment.
Part Number | HFLQ |
---|---|
Manufacturer | DuraGuard |
Watts | 68 Watts |
Lumens | 6772-7401 |
CRI | 80 |
Color Temperature | 4000 Kelvin, 5000 Kelvin |
Beam Angle | Not Specified |
Input Voltage | 120V-277V |
Rated Life | 345,000 hours + |
Minimum Operating Temperature | -40 ° F |
Maximum Operating Temperature | 122 ° F |
Dimensions | 16 1/8" W x 10 1/2" L x 10 1/8" H |
Certifications | , |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
