The DuraGuard MWPCOQ cutoff wall pack luminaire is available with a choice of optical distributions designed to replace HID lighting systems 175w to 400w MH or HPS. Typical wall mounted lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 12 to 18 feet can be used based on light level and uniformity requirements.

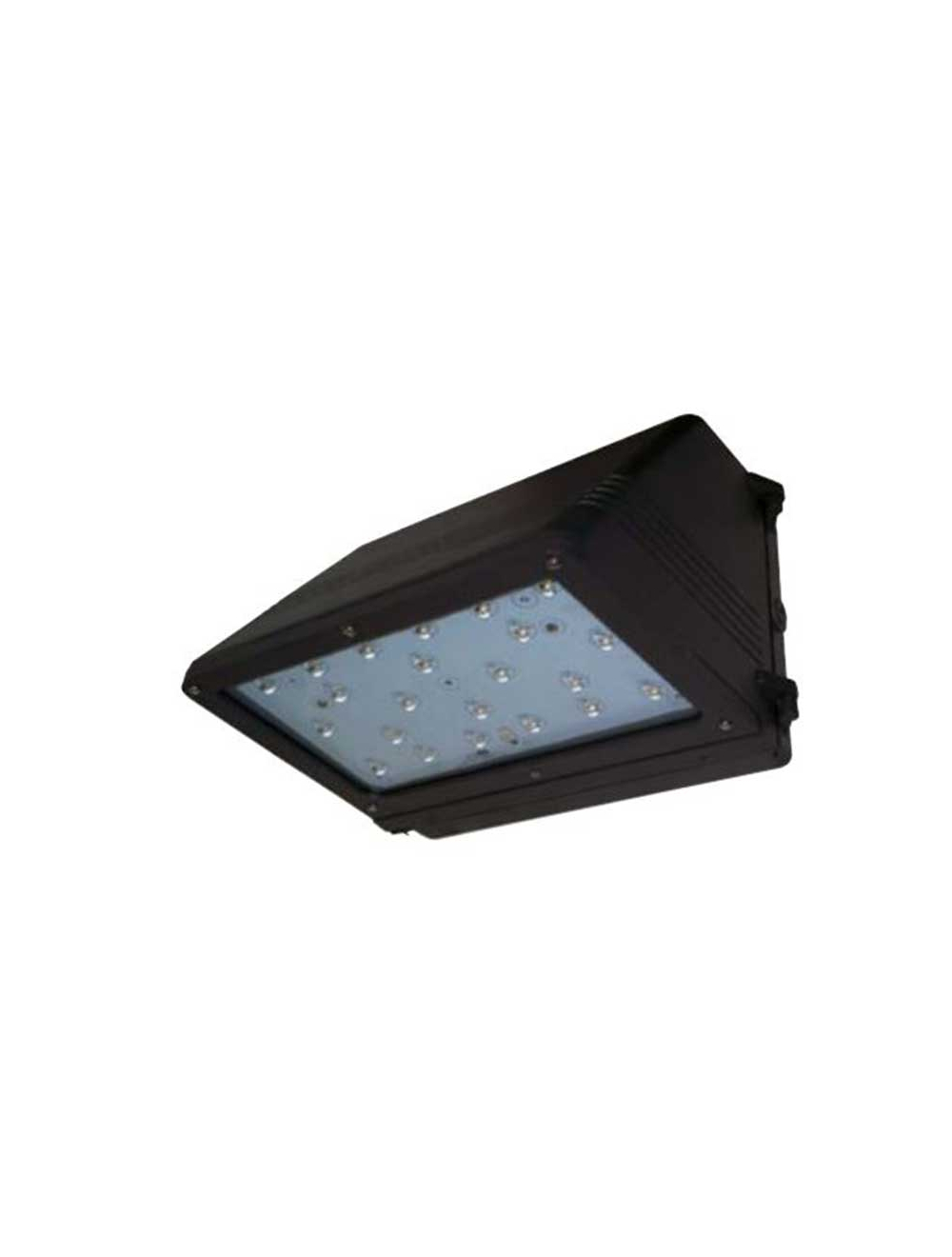

DuraGuard MWPCOQ DuraLED Medium Wallpack Full Cutoff Bronze Finish
Specifications and Features:
Housing: Die Cast Hinged and Gasketed Aluminum Front Frame and Housing with ½˝ Coin Plugs. NickelPlated Stainless Steel Hardware. Photocell Adaptable.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens or Tempered Clear Flat Prismatic Glass Lens.
Mounting Options: Cast-in Template for Mounting Directly Over a 4˝ Recessed Outlet Box, or Use ½˝ Surface Conduit.
DuraLED LED: Aluminum Boards
Wattage:
25w Array: 24.78w, System: 27.1w
37w Array: 37.2w, System: 40.6
50w Array: 50w, System: 54.2w
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with DuraGuard Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty: 5-Year Warranty for -40°C to +40°C Environment.
Part Number | MWPCOQ |
---|---|
Manufacturer | DuraGuard |
Watts | 25 Watts, 36 Watts, 50 Watts |
Lumens | Variable, See Spec Sheet |
CRI | 80 |
Color Temperature | 4000 Kelvin, 5000 Kelvin |
Input Voltage | 120V-277V |
Rated Life | 150,000 hours + |
Minimum Operating Temperature | -40 ° F |
Maximum Operating Temperature | 122 ° F |
Dimensions | 14 1/4" x 11 3/8" x 9 1/8" |
Certifications | , , , |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
