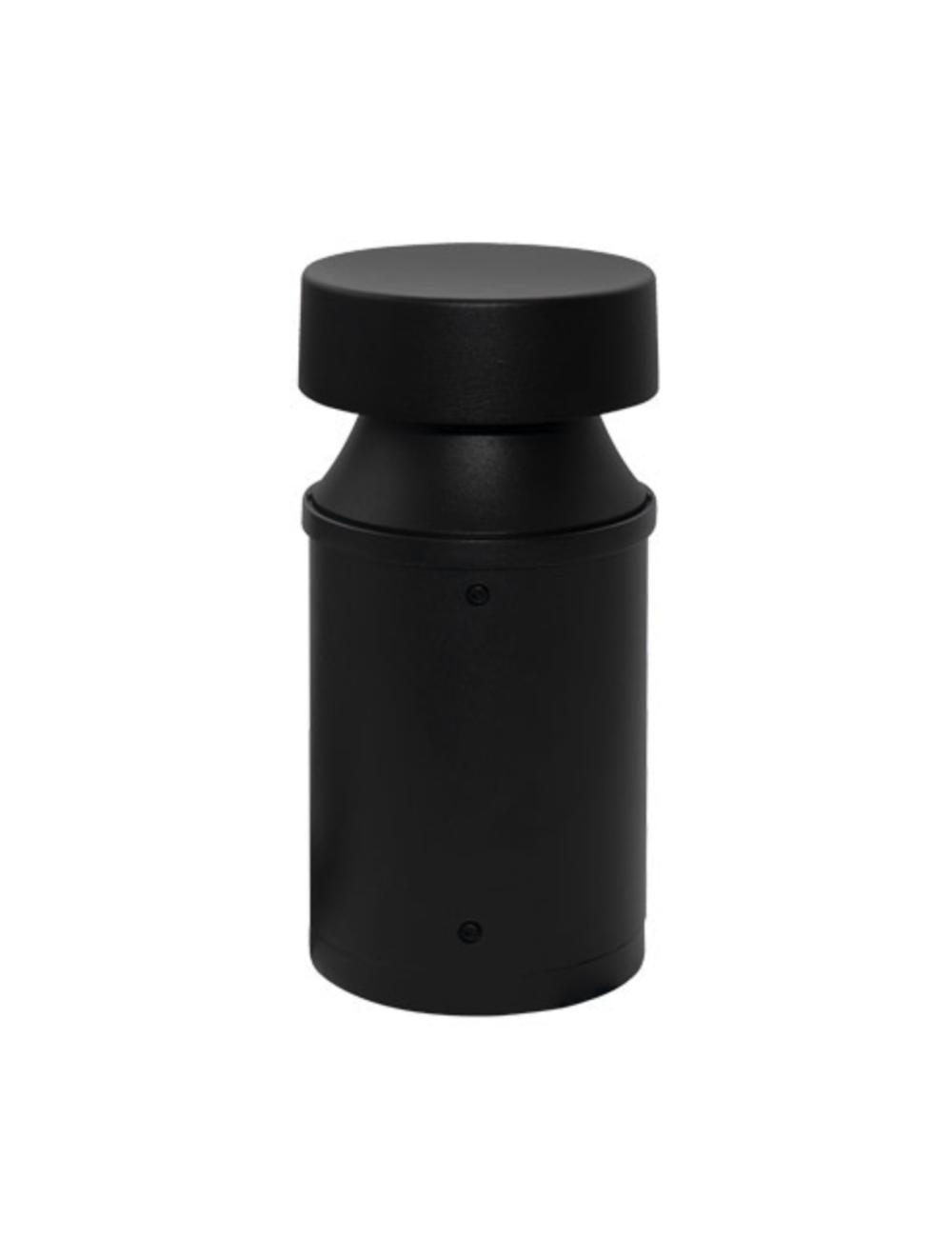

The DuraLED NB5Q Low Profile Pathway Bollard provides full cutoff lighting for outdoor path, walkways and landscape areas using wide spread optics designed to replace outdated Halogen and Compact Fluorescent lighting systems. These fixtures are ideal for landscaped areas at retail centers, parks, restaurants, hotels, schools and universities, office buildings and medical facilities.
Description: The DuraLED NB5Q Low Profile Pathway Bollard provides full cutoff lighting for outdoor path, walkways and landscape areas using wide spread optics designed to replace outdated Halogen and Compact Fluorescent lighting systems. These fixtures are ideal for landscaped areas at retail centers, parks, restaurants, hotels, schools and universities, office buildings and medical facilities.
Specifications and Features:
Housing: Die Cast Aluminum Housing Sealed Driver Compartment. 360° Distribution, or 120° or 180° Shield.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish: Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens
Mounting Options: Mounting Kit with 8 ̋ Zinc-Plated Anchor Bolts, Included.
Wattage:
360° Arrays: 12w & 16.6w, System: 12.9w & 18.9w
180° & 120° Arrays: 10w & 15.5w, System: 11.2w & 17w; (70w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Watts | 10 Watts, 12 Watts, 16 Watts, 17 Watts |
---|---|
Lumens | 338-758 |
Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
Beam Angle | 180°, 360° |
Rated Life | 150,000 hours + |
Certifications | |
Input Voltage | 120V-277V |
Manufacturer | DuraGuard |
Maximum Operating Temperature | 122 ° F |
Minimum Operating Temperature | -40 ° F |
Dimensions | 4.75" Diam x 10" H |
Warranty | 5 Year |
Lead Time | Not Specified |
