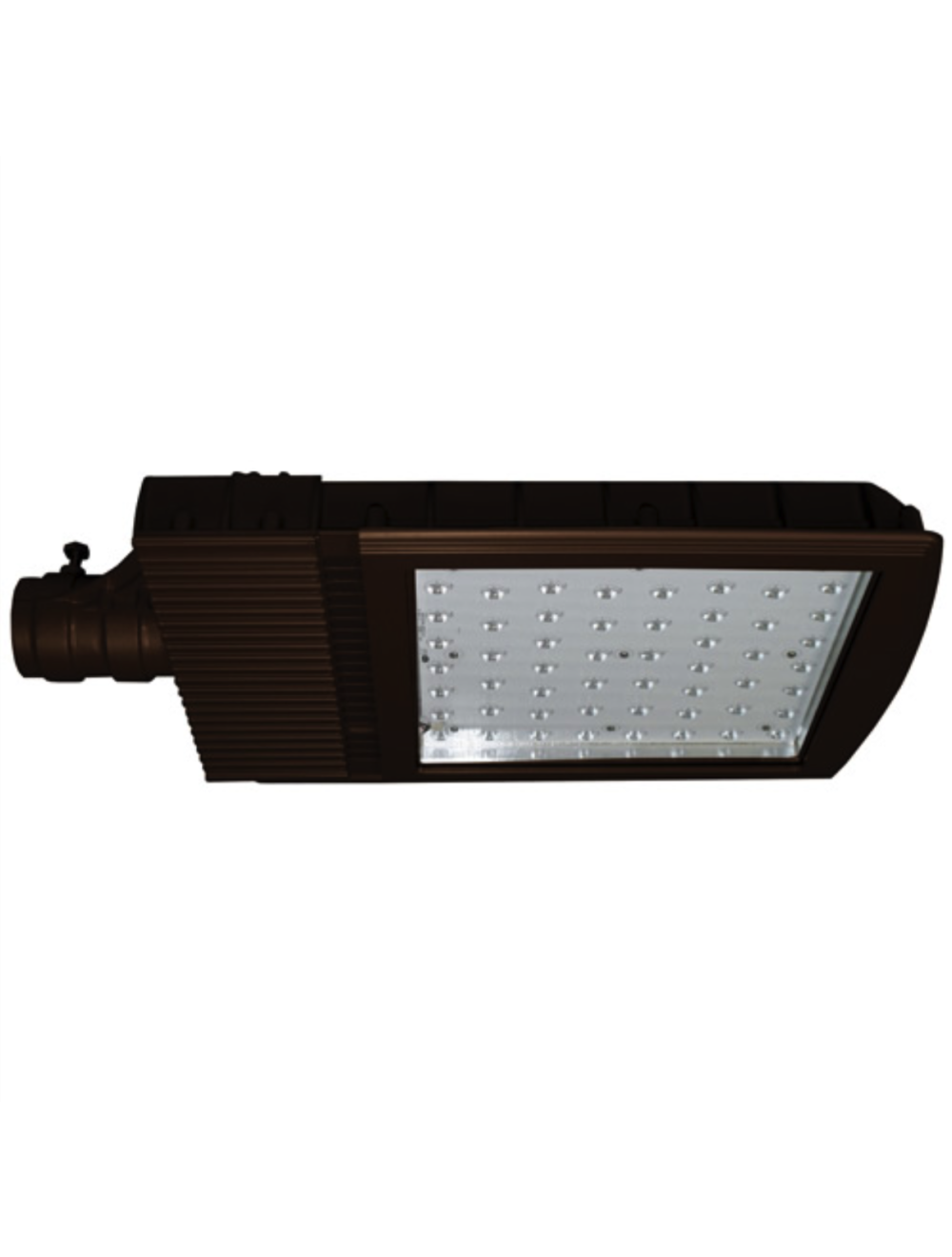

Duraguard ST30Q 167w DuraLED Small Hampton Area/Roadway
The DuraGuard ST30Q luminaire is available in a wide choice of mounting configurations and optical distributions designed to replace HID lighting systems up to 400w MH or HPS. Typical applications include general area, parking, flood, security, and accent lighting for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 12 to 30 feet can be used based on light level and uniformity requirements.
Description: The DuraGuard ST30Q luminaire is available in a wide choice of mounting configurations and optical distributions designed to replace HID lighting systems up to 400w MH or HPS. Typical applications include general area, parking, flood, security, and accent lighting for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 12 to 30 feet can be used based on light level and uniformity requirements.
Specifications and Features:
Housing: Heavy-Duty Low Profile Die Cast Housing with Integral Heat Sinking, Driver Compartment. Powder-coat Finish Over a Chromate Conversion Coating. Includes Twist Lock Photocell Receptacle.
Listing & Ratings: CSA: Listed for Wet Locations, Wall Mount Only, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.
Finish: Textured Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens or Tempered Clear Flat Prismatic Glass Lens
Mounting Options: 2 3/8" Diameter Mounting Arm Adapter, Adjustable Slipfitter, or Two-Piece Bracket
Wattage: 167w Array: 167.3w; System: 180w; (400w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming
Warranty: 5-Year Warranty for -40°C to +50°C Environment.
| Part Number | ST30Q |
|---|---|
| Manufacturer | DuraGuard |
| Watts | 166 Watts |
| Lumens | 17347-21084 |
| CRI | 80 |
| Color Temperature | 4000 Kelvin, 5000 Kelvin |
| Minimum Operating Temperature | -40 ° F |
| Maximum Operating Temperature | 122 ° F |
| Dimensions | 28" L x 15" W x 4" H |
| Warranty | 5 Year |
| Certifications |  ,  |
| Lead Time | In Stock - Quick Ship |
