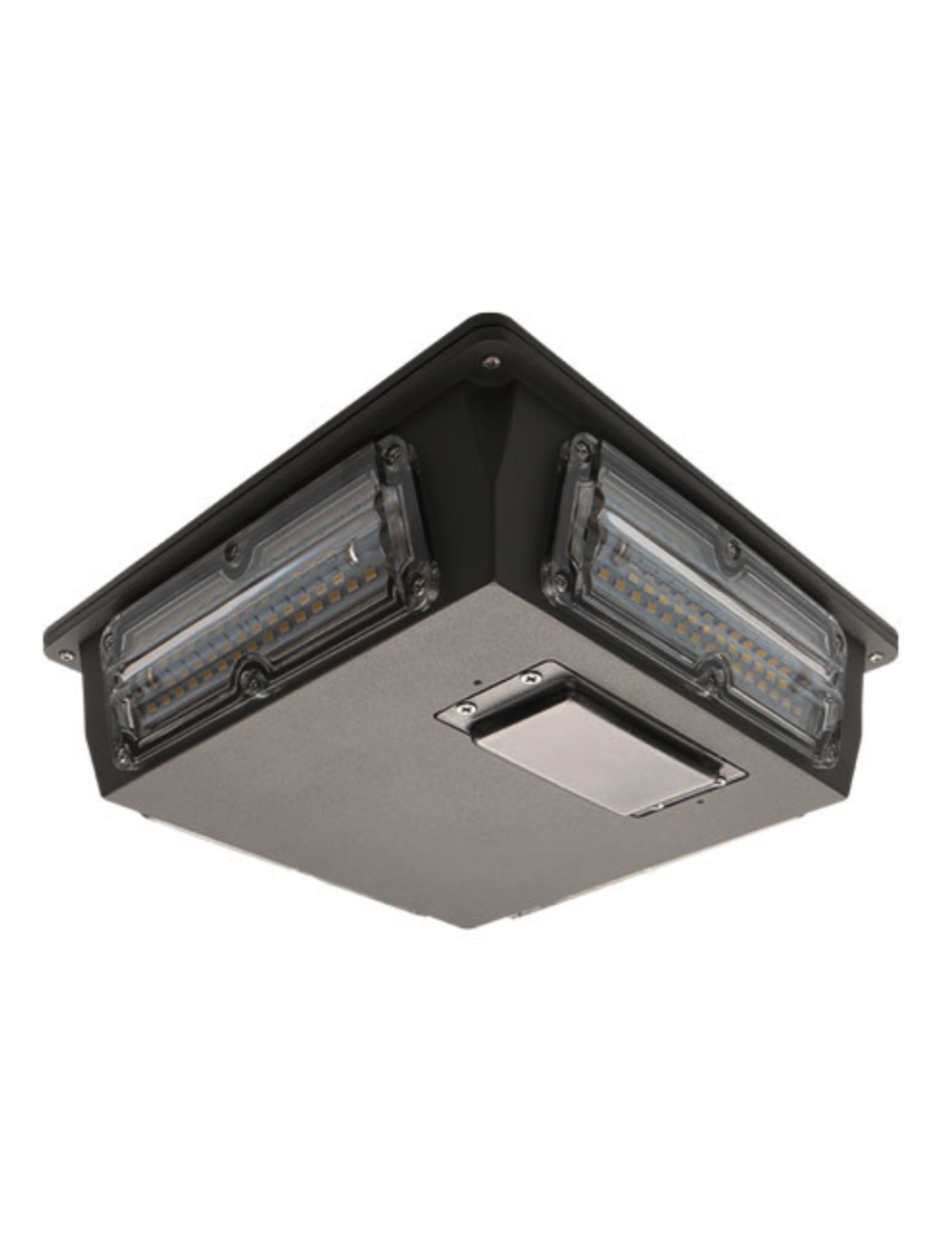

The DuraGuard VGS40Q garage square luminaire with optional integral sensor is available in three wattages with
an optical distribution designed to replace HID lighting systems up to 175w MH or HPS. Typical parking garage applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 16 feet can be used based on light level and uniformity requirements.
Description: The DuraGuard VGS40Q garage square luminaire with optional integral sensor is available in three wattages with an optical distribution designed to replace HID lighting systems up to 175w MH or HPS. Typical parking garage applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 16 feet can be used based on light level and uniformity requirements.
Specifications and Features:
Housing: Die Cast Aluminum Housing, 1⁄2" Coin Plugs with O-rings for Conduit or External Sensor. Built-in Sensor Housing with Color-Matched UV-Stabilized Polycarbonate Cover.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750. IP66 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Molded UV-Stabilized Polycarbonate Lens Optically Designed for Garage Lighting Applications.
Mounting Options: Surface Mount Model (NM) Includes Easy-Hang Bracket Allowing One-Person Installation, Fits Standard 4" Electrical Box. Adjustable Height Trunnion (T) and Pendant (PA) Models are Shipped Ready For Field Installation of the Mount. Mounts are Shipped in a Separate Carton.
Wattage:
40w Array: 37w, System: 40w; (Up to 100w HID Equivalent)
60w Array: 53w, System: 60w; (Up to 175w HID Equivalent)
84w Array: 74w, System: 84w; (Up to 175w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with DuraGuard Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Part Number | VGS40Q |
---|---|
Manufacturer | DuraGuard |
Watts | 40 Watts, 60 Watts, 84 Watts |
Lumens | 4836-10,158 |
Lumens Per Watt | 121 |
CRI | 80 |
Color Temperature | 4000 Kelvin |
Input Voltage | 120V-277V |
Rated Life | 120,000 hours + |
Minimum Operating Temperature | -40 ° F |
Maximum Operating Temperature | 122 ° F |
Dimensions | 11" W x 11" L x 5" H |
Certifications | |
Warranty | 5 Year |
Lead Time | In Stock - Quick Ship |
