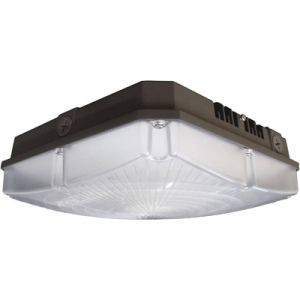

Duraguard VN34Q 23w DuraLED Low Profile Medium Surface Mount Shallow Canopy
The DuraGuard VN34Q Low Profile Medium Surface Mount luminaire is available with an optical distribution designed specifically to replace HID lighting systems up to 100w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 14 feet can be used based on light level and uniformity requirements.
Description: The DuraGuard VN34Q Low Profile Medium Surface Mount luminaire is available with an optical distribution designed specifically to replace HID lighting systems up to 100w MH or HPS. Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 8 to 14 feet can be used based on light level and uniformity requirements.
Specifications and Features:
Housing: Die Cast Aluminum Housing, 1⁄2 ̋ Coin Plugs with O-rings for Conduit & Photocell on Two Sides & Back, Nickel-Plated Stainless Steel Hardware.
Wattage: Array: 21.7w, System: 27w (100w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750. IP66 Sealed LED Compartment. ADA Compliant.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: SoftLED Low Profile LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens
Mounting Options: Mount Directly Over a 4" Recessed Outlet Box, or Use 1/2" Surface Conduit.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with DuraGuard Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
| Part Number | VN34Q |
|---|---|
| Manufacturer | DuraGuard |
| Watts | 23 Watts |
| Lumens | 2890 |
| Lumens Per Watt | 103 |
| CRI | 80 |
| Color Temperature | 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120V-277V, 480V |
| Rated Life | 150,000 hours + |
| Minimum Operating Temperature | -40 ° F |
| Maximum Operating Temperature | 104 ° F |
| Dimensions | 9" L x 9" W x 4" H |
| Certifications |  |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
