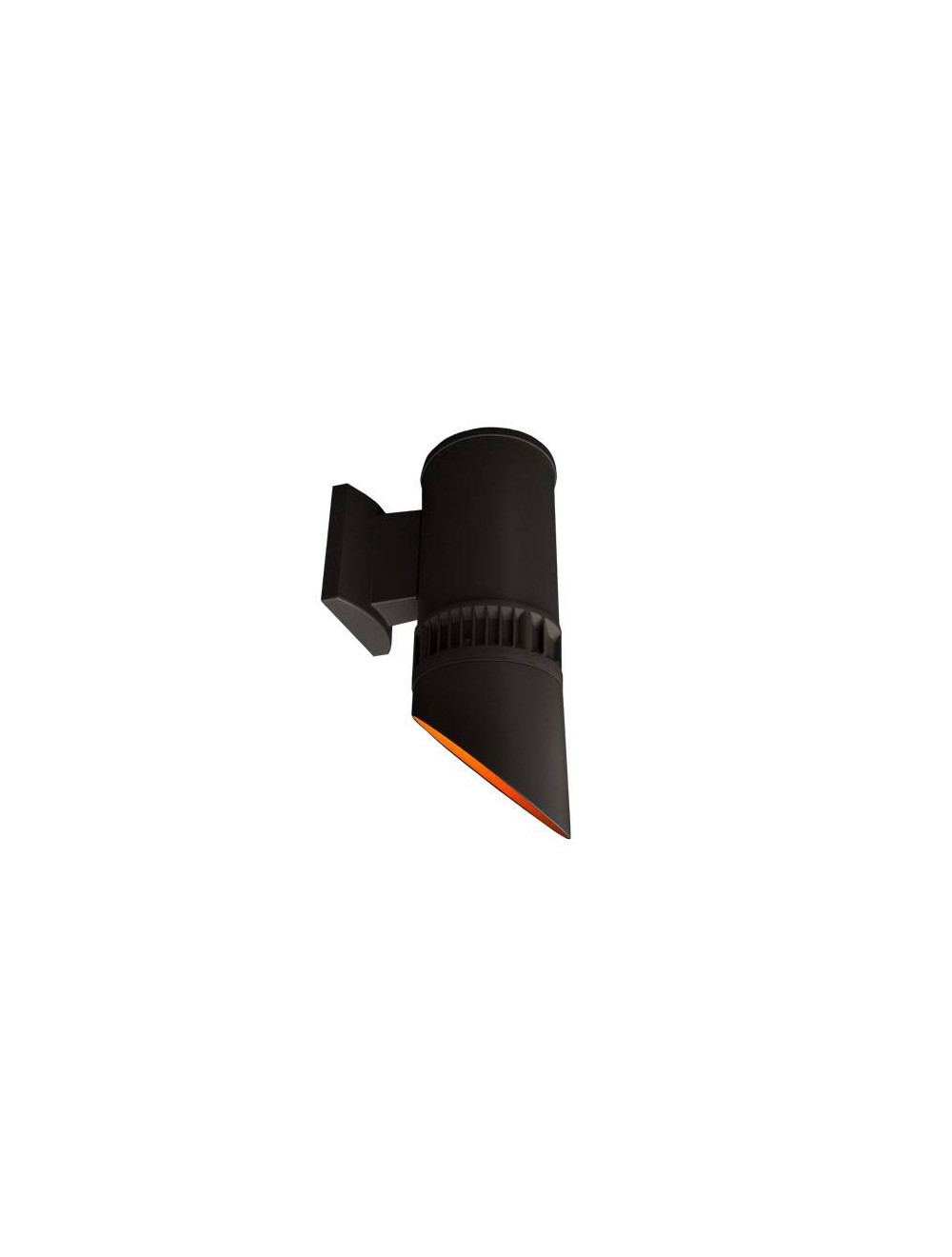

Duraguard WCTRS 20W Amber Astra LED Up or Down Wall Cylinder
Product Description: The DuraGuard WCTRS Astra Full Cut-off wall mount cylinder is available with a shielded IES Type V distribution, and is certified by the Florida Fish & Wildlife Conservation Commission (FWC) for wildlife applications that are directly visible from the shore requiring monochromatic AMBER light. LEDs operate between 585 and 595 nm, greater than 560nm required by FWC. Typical applications include retail centers, hotels, residential, parks, schools and universities, office buildings and medical facilities. Mounting heights of up to 12 feet can be used based on light level and uniformity requirements.
Duraguard WCTRS 20W Amber Astra LED Up or Down Wall Cylinder
Housing: Extruded Round Aluminum Housing with Built-in Heat Sinks. Includes Visor Required to Maintain FWC Certification
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Part Number | TV2C32X20UAM |
---|---|
Manufacturer | DuraGuard |
Watts | 20 Watts |
Lumens | See Specification Sheet |
CRI | See Specification Sheet |
Color Temperature | 2200 Kelvin |
Input Voltage | 120V-277V |
Rated Life | 90,000 hours + |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 114° F |
Dimensions | See Photos |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
