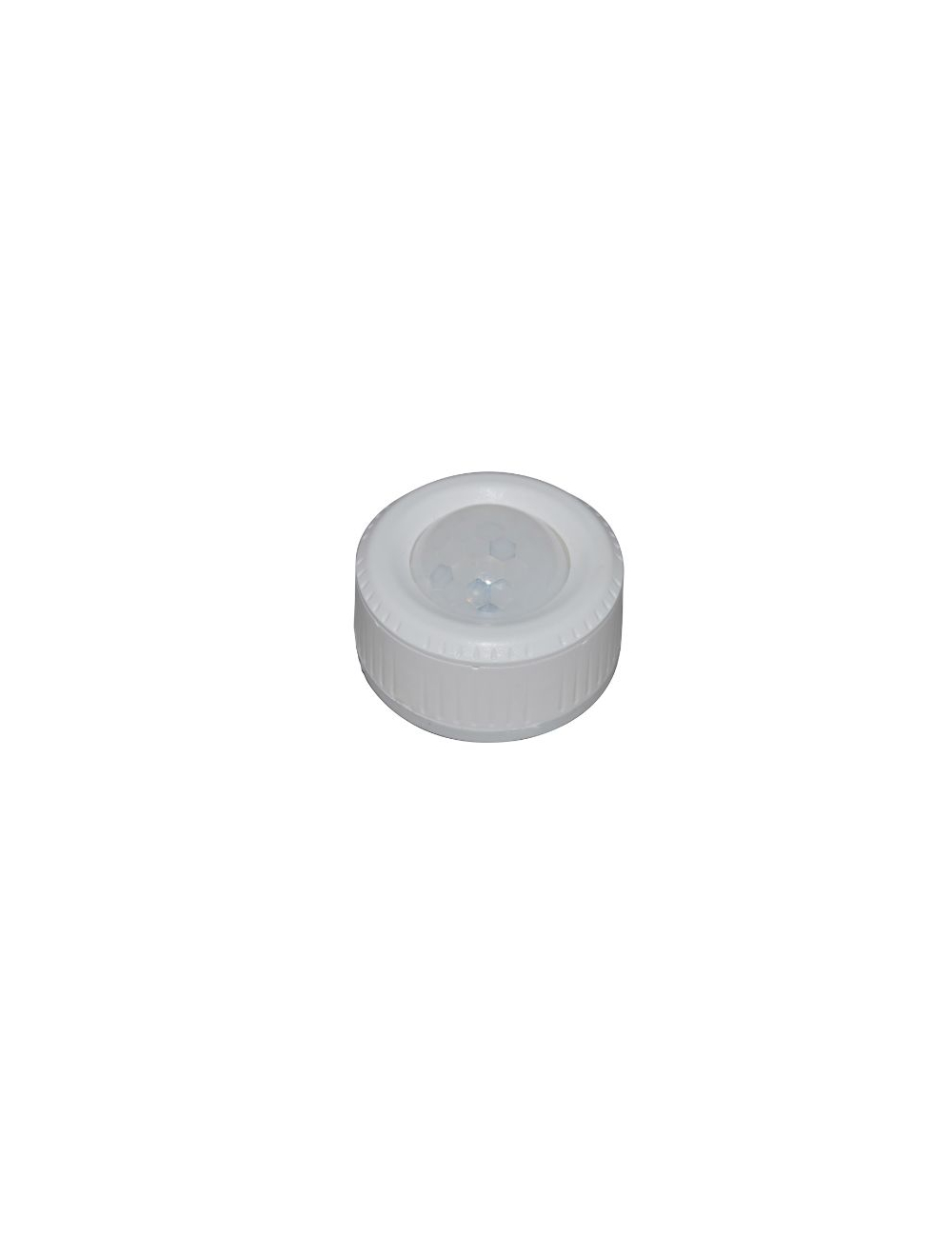

Eiko SEN5A-SZPR-WH Stand-alone PIR Motion Sensor 12-24 Volt Z10 0-10V Daylight Harvesting White IP65 13342

HIGHLIGHTS
• Z10 Twist Lock Microwave Motion Sensor for Stand-alone Controls
• Designed for use with EiKO’s Z10 Twist Lock receptacles for quick and easy installation in the field also compatible with screw-in receptacle using Z10 adapter (SENA-APZ-WH)
• Features microwave technology; used for automatically turning the lights on when occupancy is detected and off when there is no occupancy detected
• Field adjustable settings included: brightness (high-end trim), dim level, sensitivity, hold time, and dim time for customized lighting control
• Dual ambient and daylight sensing technology improves accuracy in outdoor applications when the sensor is within the range of artificial light emitted from the fixture, resulting in a more energy-efficient and reliable lighting system
• Daylight harvesting for energy efficiency*
• Occupancy detection can be disabled, and the sensor can function as a photocell alone
• Photocell function can be used as traditional dusk-to-dawn or two-stage dimming/ midnight dimming
• Robust design for reliable operation in various environments
• Supports maintenance-friendly features such as remote commissioning

CERTIFICATIONS
• cETLus listed for wet locations
• RoHS Compliant
• FCC Compliant
• IP65 Rated PERFORMANCE
• Mounting Height: 8-40ft
• 0-10V Bi-Level Dimming
• 360˚ Coverage Pattern

ELECTRICAL
• Input Voltage: 12-24VDC
• Input Current: 50mA
• Dimming: 0-10V
• Remote Control: SEN5A-ACT (Purchased Separately)

THERMAL
• -4°F to 140°F (-20°C to 60°C) operating temperature

CONSTRUCTION
• High strength, UV-resistant white polycarbonate housing
• Z10 twist lock installation

FACTORY DEFAULT SETTINGS
• Sensitivity: 100%
• Hold Time: 5 minutes
• Daylight Function: Disable
• Dim level: 30% • Dim Time: 60 minutes

WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Warehouse
• Manufacturing Plants
• Distribution Centers
• Gymnasiums
• Parking Garage
• Parking Lots
• Car Dealerships
• Athletic Facilities and Sports Field
• Big Box Retail
• Service Repair Center
