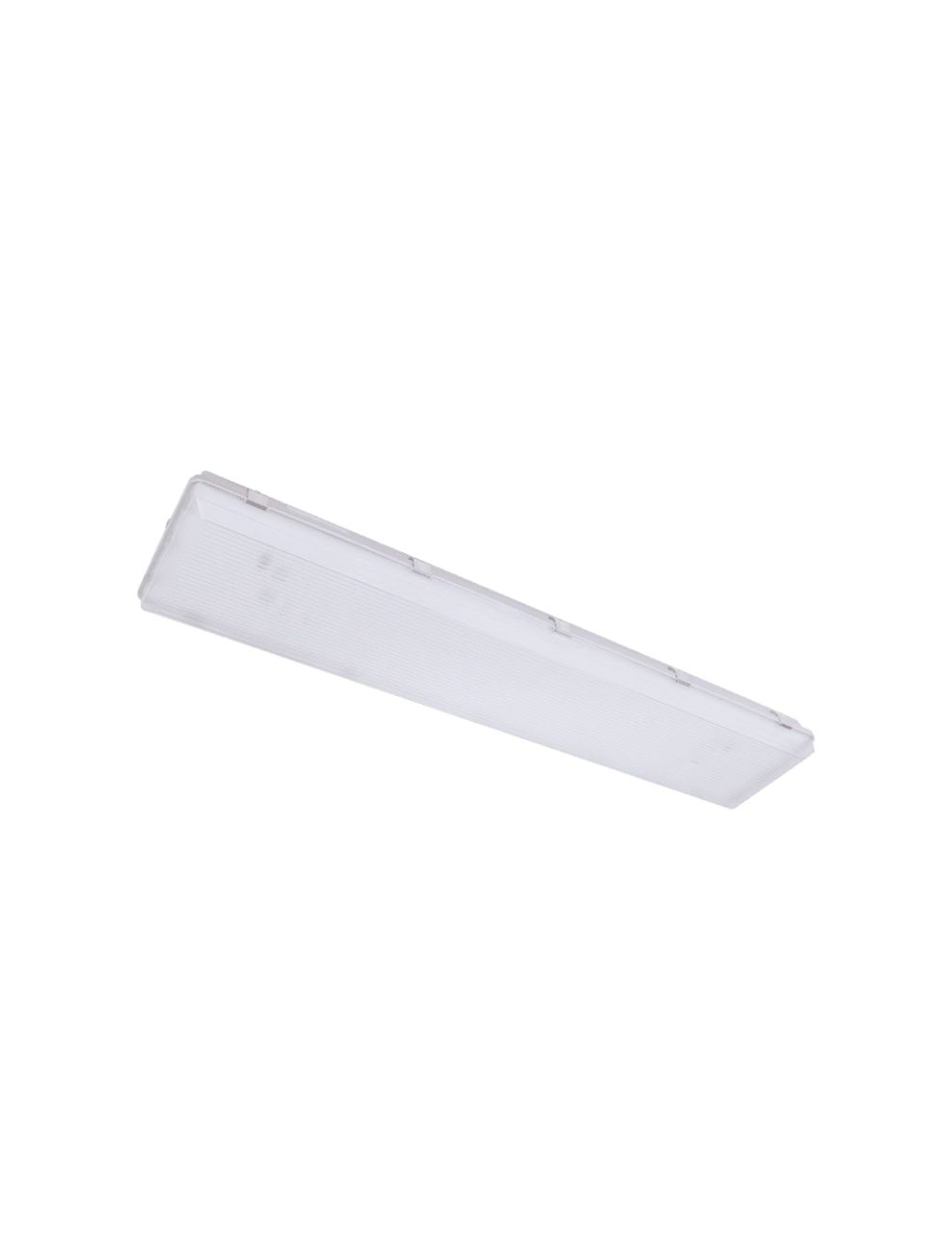

Eiko VPHB1-41504-3 Vapor Proof Linear Highbay 4' 150 Watt 4000K 120-347 Volt Dimmable 13125

HIGHLIGHTS
• Designed to be used in environments subject to high levels of moisture and dust
• Multiple knockouts make installation flexible and easy
• Stainless steel clips
• Cable gland included for sealing power cable entry, knockout plug accessory available
• Impact-resistant polycarbonate lens
• Surface mounting clips and v-hooks included

CERTIFICATIONS
• ETL
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Wet Location
• IP66 Rated
• IK10
• NEMA4X Rated
• DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance

PERFORMANCE
• High efficacy, up to 150 lm/W
• Available in fixed wattage models: 150 or 200W
• Available in single CCT models: 4000K or 5000K CCT
• CRI: >80
• Beam Angle: 110° for the 150W models, and 105° for the 200W models
• Estimated L70: 100,000 Hours

ELECTRICAL
• Input voltage: 120-347V
• 0-10V dimming
• 12VDC Aux, 200mA max
• Surge protection: 2.5 kV (150W) 6kV (200W)
• Power factor: >0.9
• THD: <20%

THERMAL
• -40°F to 104°F (-40°C to 40°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)

CONSTRUCTION
• Polycarbonate gray housing
• Polycarbonate lens
• Stainless steel lens clips

WARRANTY
• 5 Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Parking Garage
• Barns
• Utility Lighting
• Warehouses
• Industrial/Commercial
• Low Bay

KEY FEATURES

MULTIPLE MOUNTING OPTIONS
Comes with V-hook & surface mount clips; cable gland for sealing power cable; anchors and mounting screws and washers.

SENSOR COMPATIBILITY
Factory-installed behind-the-lens sensor available, other control solutions available using one of the 1/2" knockouts

ENVIRONMENTAL PROTECTION
IP66 rated, resistant to corrosion (NEMA4X), stainless steel clips.
