Designed for gardens, walkways, and landscapes, these pathway lights seamlessly integrate style and functionality in outdoor lighting.
• Custom Made Product • Non-Refundable • Terms and conditions: Click Here

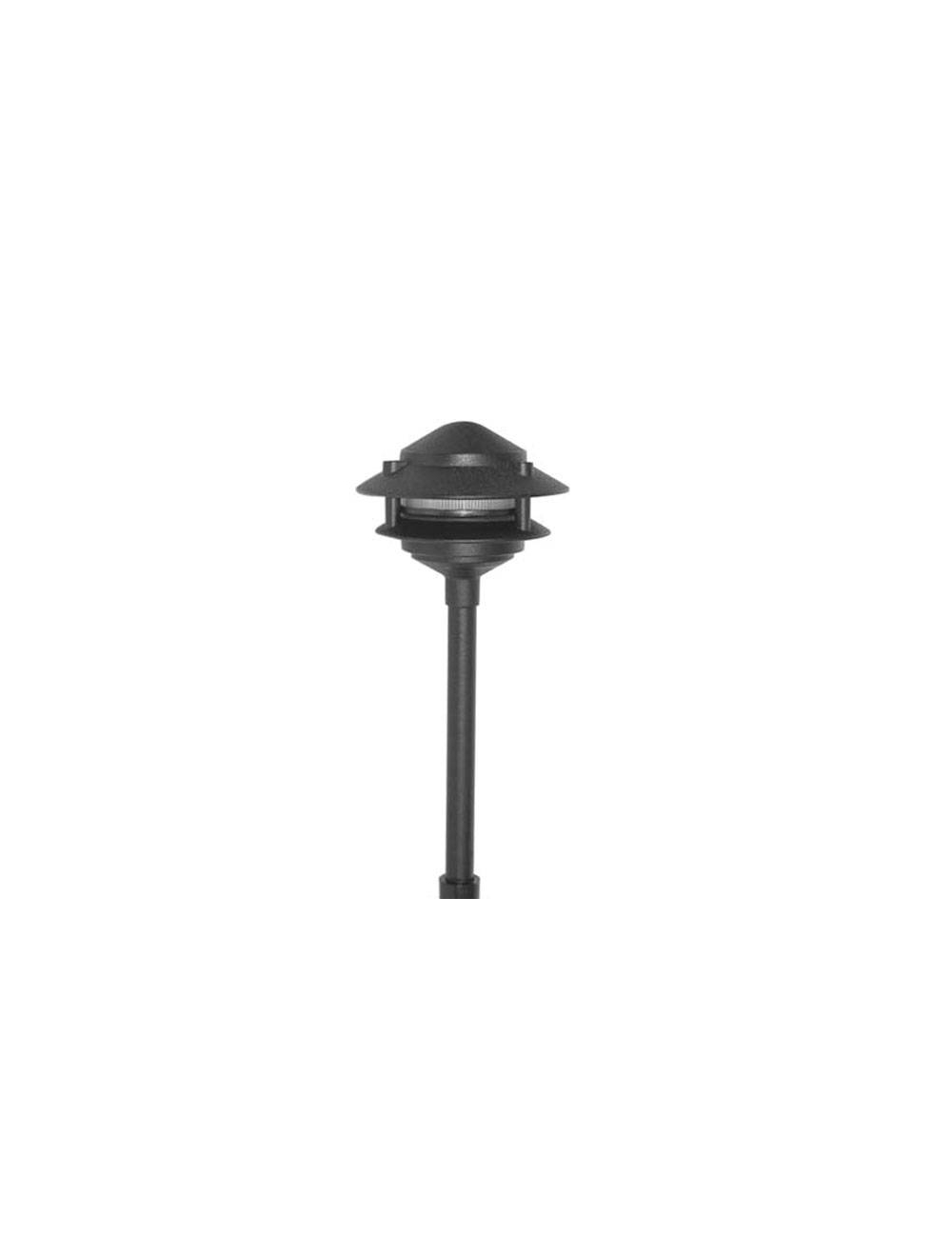

Construction: Cast aluminum Pagoda Hat with matching extruded aluminum stanchion. Two, Three, or Four tier models are available.
AL-03 Lens: 3.25" tall clear prismatic polycarbonate
AL-03-3T Lens: 5" tall clear tempered glass
AL-03-4T Lens: 7" tall clear tempered glass
Socket: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
Wiring: Black 3-foot 18/2 zip cord from base of fixture (12v only) For 25-foot 16/2 fixture lead wire add -25F to catalog number. 120v Standard wiring.
Connection: FA-05 Quick Connector (not supplied) from fixture to the main cable (12/2, 10/2, or 8/2 only) 12v only.
Mounting: FA-03 black 9" ABS stake, tapped 1/2" NPS
Finish: Black texture polyester powder coat. Optional finishes are available.
Part Number | AL-03-10-BLT |
---|---|
Manufacturer | Focus Industries |
Input Voltage | 120V, 12V |
Dimmable | No |
Dimensions | 6" x 14" |
Certifications | , , |
Warranty | 3 Year |
Lead Time | Build Item 3-4 Weeks |
