The Focus transformers are advanced electrical devices engineered to regulate voltage, optimize energy distribution, and enhance efficiency across industrial and commercial applications.

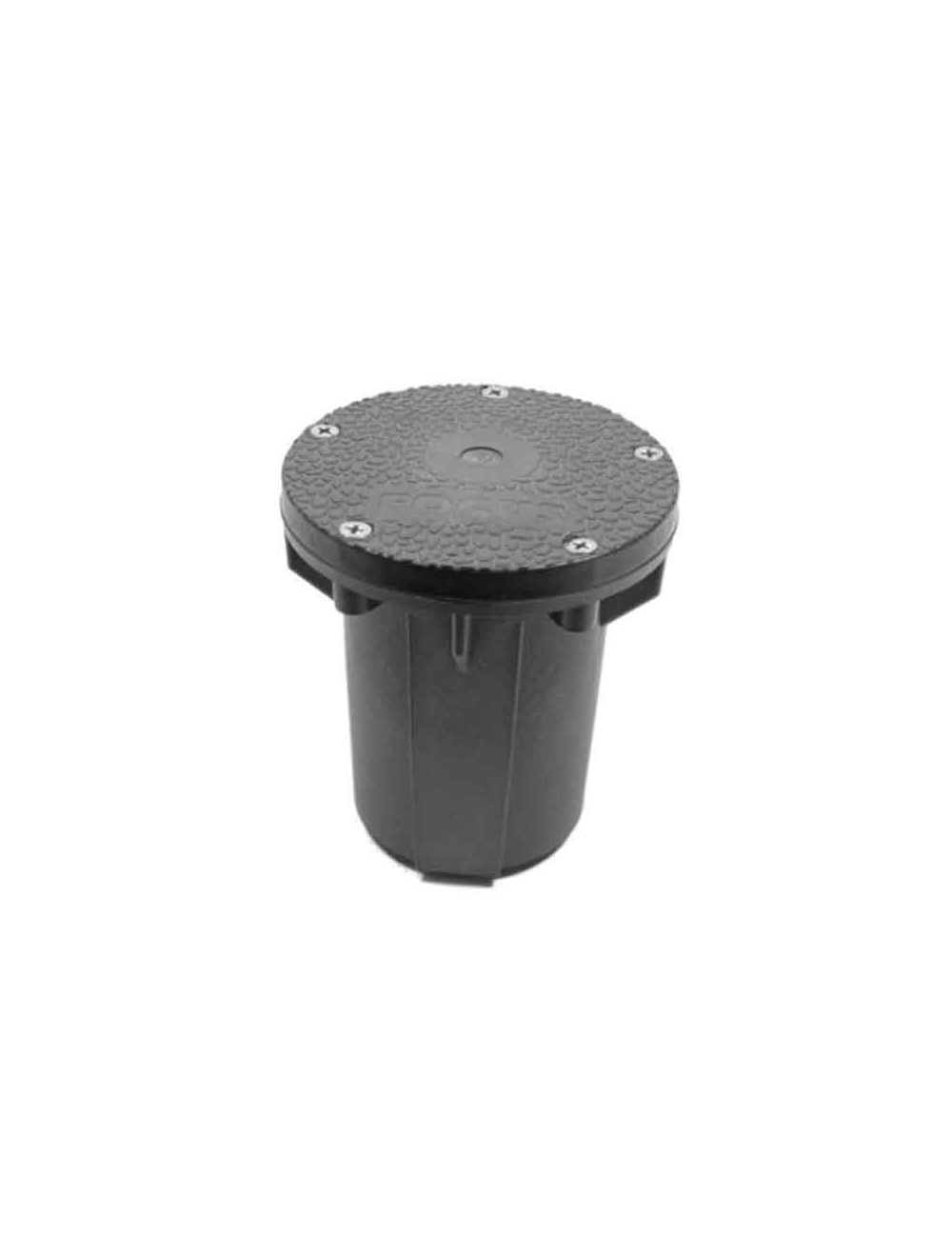

Focus DB-12-100M Direct Burial Transformer 100w 12v 1 circuit 1 core
Specifications
• Heavy duty bronze high temperature fiberglass reinforced composite
• 1/2" NPS & 3/4" NPS bottom hubs for line voltage input, feed through & low voltage output
• 1/2" NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
• 120 volt primary, 12.5v secondary, 50/60hz standard
• Multi Volt 12.5v / 13.5v / 14.5v options available (see Transformer Options below)
• Isolation type magnetic transformer - no contact between 120v and 12v windings (compact electronic transformers available, see ordering information below)
• Magnetic circuit breaker for secondary overload/short circuit protection
• Long life, high temperature (130°C) transformer core
• Single phase, open core and coil
• Completely potted for longer life, more efficiency and reduced noise
• 2 feet of 12/2 direct burial cable for low voltage connections (1 per circuit and/or voltage tap)
• 1/2" NPS mounting hubs available on cover (specify at time of order if tapping required)
• NEMA12 rated enclosure for below grade direct burial applications
• UL 1838 and UL 1598 certified
• 3 year warranty on enclosure and mechanical/electrical components
Part Number | DB-12-100M |
---|---|
Manufacturer | Focus Industries |
Number of Circuits | 1 Circuit |
Input Voltage | 120V |
Output Voltage | 12V |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 104° F |
Dimensions | 7.25" Diameter x 9.25" depth |
Certifications | |
Warranty | 3 Year |
Lead Time | Build Item 2-3 Weeks |
