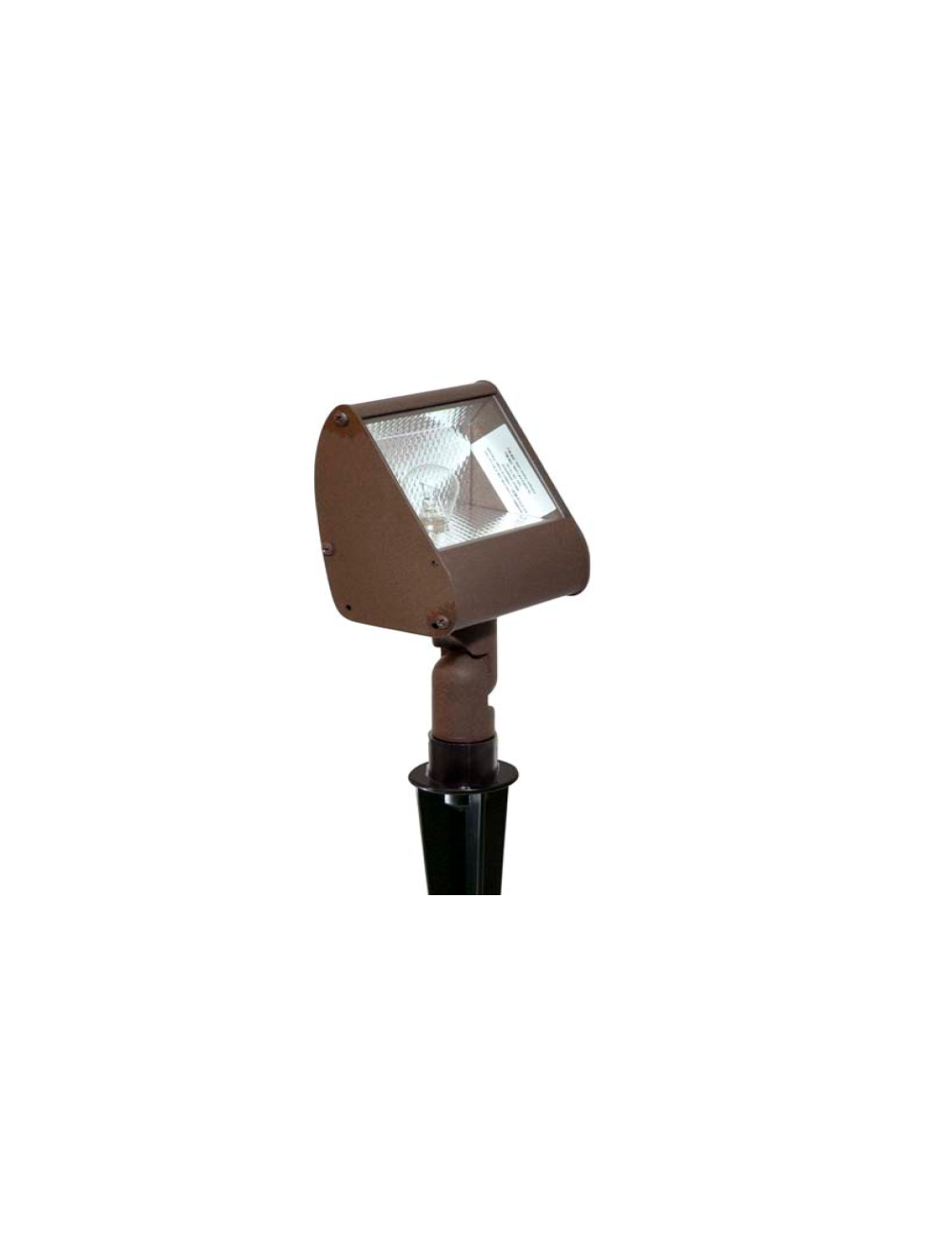

Focus DL-04 LED Aluminum Directional Light 12v
Specifications
Construction: Extruded aluminum; stamped brass, copper or stainless steel; matching cast aluminum or brass adjustable swivel (copper has cast brass swivel)
Reflector: Diamond embossed specular aluminum LENS: Brass/Copper/SS - clear tempered glass; Aluminum - high impact clear acrylic
Lamp Supplied: 18w S8 #1141; 1200 hours average rating (25w max.) Note: 35w max with DC socket
Lamp Options: We recommend 3w 50,000 hours average rating OMNI-3 LED (-LED3) or OMNI-3 Super Saver (-LED3SS) 10,000 hours average rating 20w Xenon (-X) or 20w Halogen (-H) SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v., both with 200°C silicone lead wires
Wiring: Black 3 foot 18/2 zip cord from base of fixture (12v. only) For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring
Connection: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v. only
Mounting: FA-03 black 9" ABS stake threaded 1/2" NPS
Finish: Aluminum-Black texture polyester powder coat. Optional finishes available Brass-Unfinished brass. Optional finishes available
Part Number | DL-04 |
---|---|
Manufacturer | Focus Industries |
Watts | 7 Watts |
Lumens | Lamp Dependent |
Lumens Per Watt | Lamp Dependent |
CRI | Lamp Dependent |
Color Temperature | 2700 Kelvin |
Beam Angle | 45° |
Input Voltage | 12V |
Dimmable | No |
Rated Life | 25,000 hours + |
Dimensions | 6.3" x 3.7" |
Warranty | 3 Year |
Lead Time | Build Item 2-3 Weeks |
