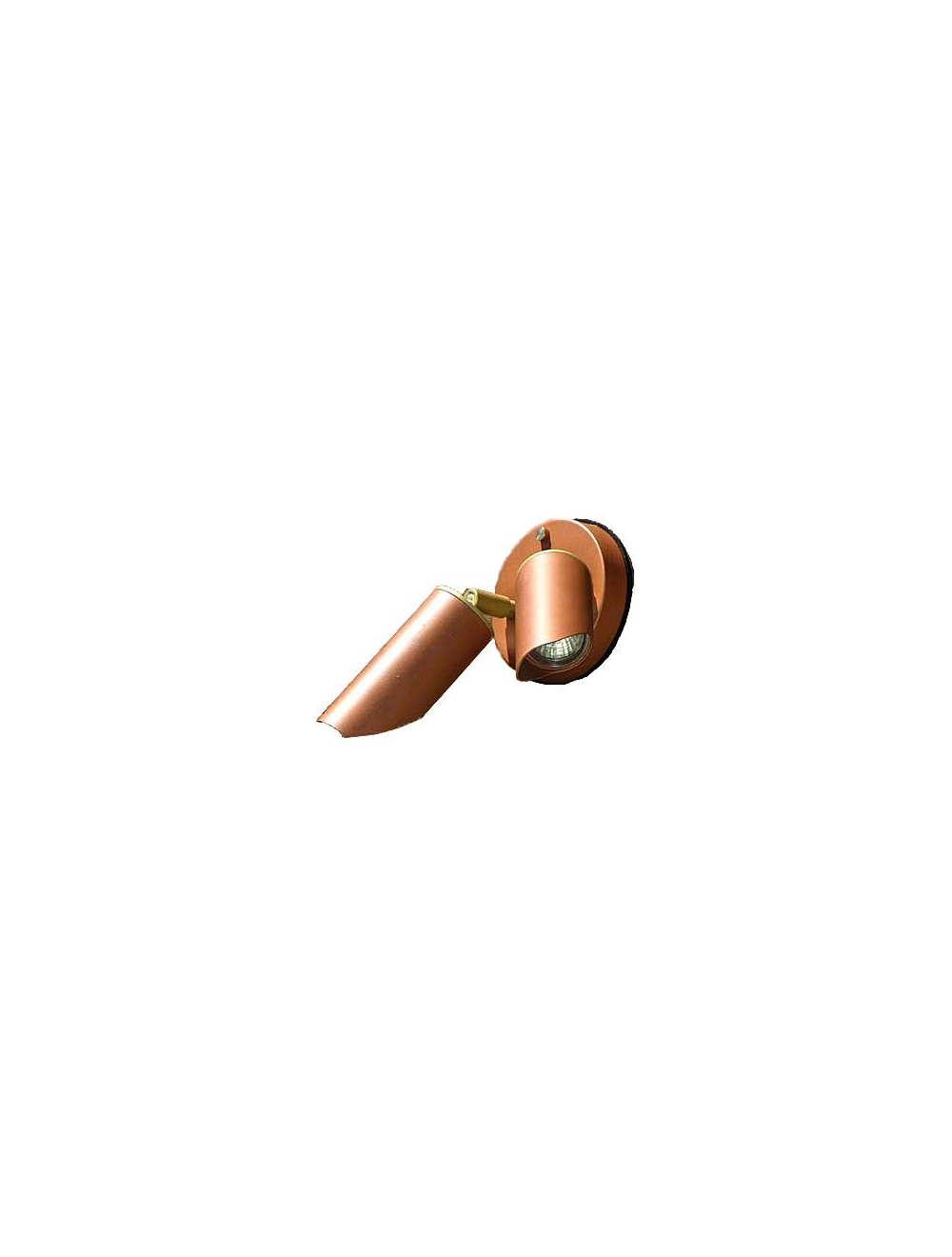

Focus DL-22-CWM2-NL-GU10-COP GU10 LED Copper Double Bullet Directional Light 120v

Focus DL-22-CWM2-NL-GU10-COP MR16 LED Copper Double Bullet Directional Light 120v, available lamp is LED 5 watt or 7 watt. Available in multiple aluminum finishes or a high end copper.

$261.41

Lead Time

Build Item 1-2 Weeks

SKU

DL-22-CWM2-NL-GU10-COP

Available Finishes

Copper (Standard)

Acid Rust + $29.81

Black Acid Treatment + $29.81

DL-20 Options

Copper Angle Cap, Flat Lens - Standard

Copper Flat Cap, Flat Lens + $19.69

Qty:

Details

Focus DL-22-CWM2-NL-GU10-COP MR16 LED Copper Double Bullet Directional Light 120v

CONSTRUCTION: Aluminum or Copper wall mount bullet with brass 360° adjustable swivel; single and double bullet versions available

LENS: High impact clear tempered convex glass

LAMP OPTIONS: GU10 LED (In specs)

SOCKET: High temperature ceramic GU10 with 250°C silicone lead wires

WIRING: Black 5 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.

CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)

MOUNTING: FA-24-LGSPUN-COP canopy with hardware and screws supplied

FINISH: Aluminum or Unfinished copper. Optional finishes available.

Specifications

More Information
Part Number	DL-22-CWM2-NL-GU10-COP
Manufacturer	Focus Industries
Watts	7 Watts
Lumens	500
Lumens Per Watt	71
CRI	82
Color Temperature	2700 Kelvin
Beam Angle	45°
Input Voltage	120V
Dimmable	No
Rated Life	25,000 hours +
Dimensions	5.5" x 4.5"
Warranty	3 Year
Specification Sheet	DL-22-CWM Data Sheet
Lead Time	Build Item 1-2 Weeks
