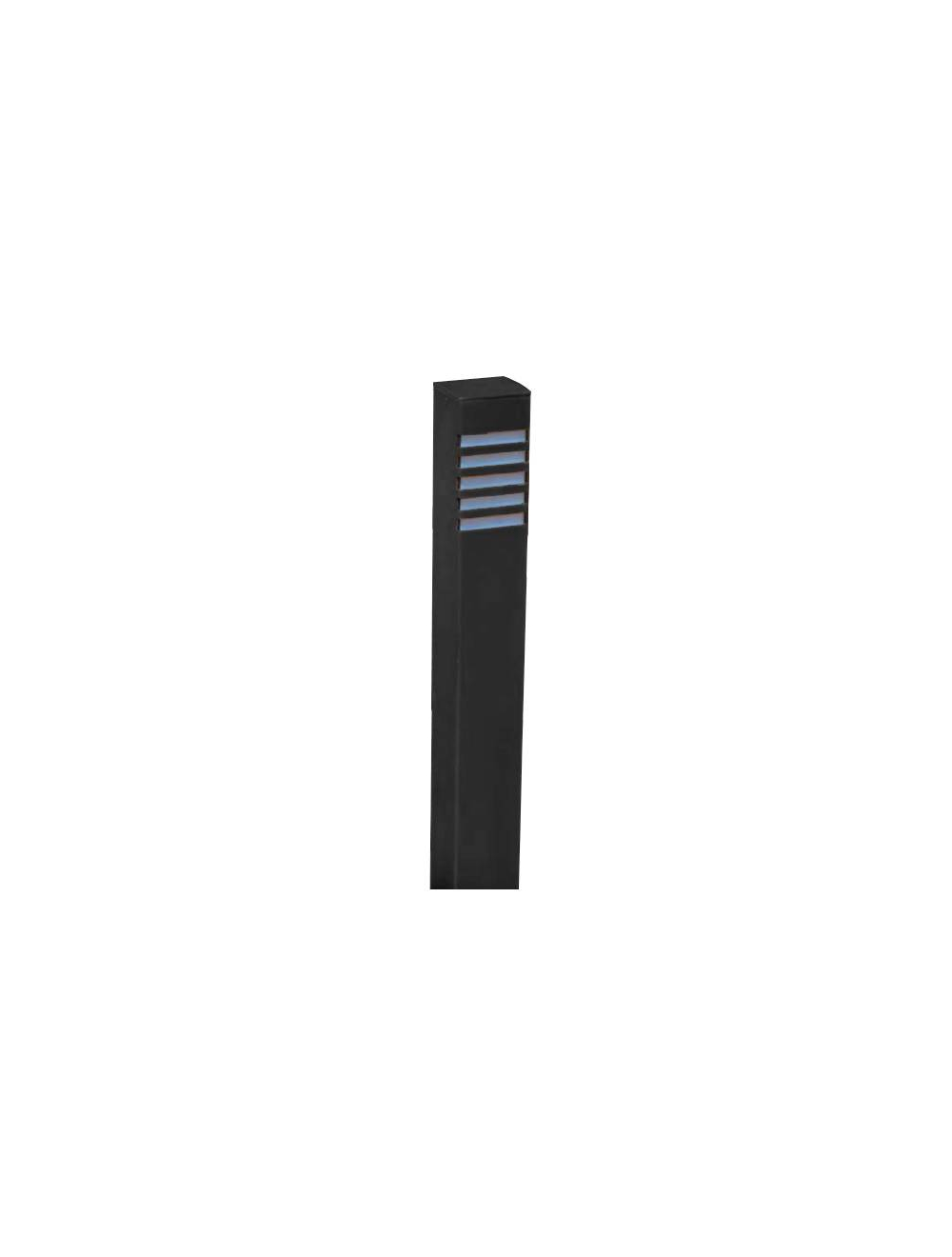

Focus PL-22 Square Aluminum Bollard Pathway 180° LED Light 12v/120v
Focus PL-22 Square Aluminum Bollard Pathway LED Light
Pathway LED lights are the perfect for illuminating walkways, pathways, terraces, patios and more. With exclusive LED technology, the lights use 1/4 of the energy, put out 6x the light and last 40x as long as traditional lights.
Our LED Advantage
The biggest difference between our LED lights is they feature replaceable LEDs using common socket types. Most other companies and brands have LEDs permanently attached or hardwired which can be difficult or impossible to replace. Our LED advantage system is as easy as changing the lamp.
Focus PL-22 Square Aluminum Bollard Pathway LED Light
CONSTRUCTION: Extruded 2.25" square aluminum or brass.
LENS: High temperature white acrylic
LAMP OPTIONS: LED 6 watt S8 type BA15s base, 12v, 50,000 hr, 500 lumens, 2200k warm, 3000k warm white or 6000k white (recommended, ships seperately, field installed), the difference between this LED and other brands LEDs is this lamp is replaceable in the future, keep the fixture, replace the lamp. Also available is an 18w Halogen
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
MOUNTING: Angle cut post (PL-22)
FA-03 black 9" ABS stake, tapped 1/2" NPS (PL-22-DM)
FINISH: Aluminum - Black texture polyester powder coat. Optional finishes available
Brass - Unfinished brass. Optional finishes available
| Part Number | PL-22 |
|---|---|
| Manufacturer | Focus Industries |
| Watts | 18 Watts |
| Lumens | Dependent on Lamp |
| Lumens Per Watt | Dependent on Lamp |
| Color Temperature | 3000 Kelvin |
| Beam Angle | Not Specified |
| Input Voltage | 12V |
| Rated Life | 10,000 hours + |
| Dimensions | 28" x 2.25" |
| Specification Sheet | |
| Lead Time | Build Item 2-3 Weeks |
