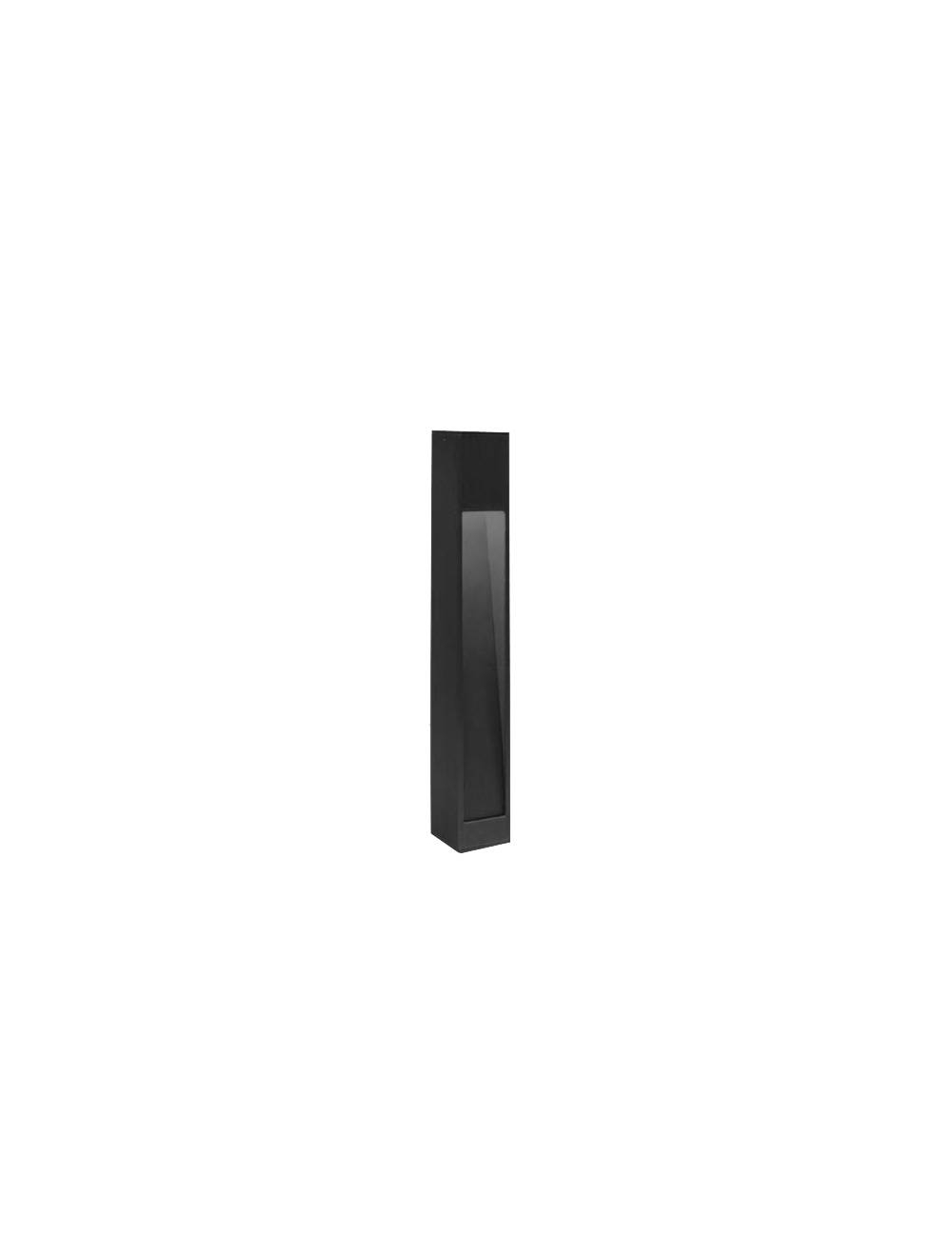

Focus PL-23-28BLT 28" Square Modern Aluminum Bollard Pathway LED 12v/120v
This fixture is designed to be placed into the dirt without a stake. It is 28" in total length and should be placed 10" into the ground leaving 18" showing. Use PL-23DM for the ground stake version.
Focus PL-23-28BLT 28" Square Modern Aluminum Bollard Pathway LED 12v/120v
CONSTRUCTION: Extruded 2.25" square brass.
LAMP OPTIONS: LED 6 watt S8 type BA15s base, 12v, 50,000 hr, 500 lumens, 2600k warm or 6000k white (recommended, ships separately, field installed) The difference between this LED and other brands LEDs is this lamp is replaceable in the future, keep the fixture, replace the lamp. Also available is an 18w Halogen
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
MOUNTING: FA-03 black 9" ABS stake, tapped 1/2" NPS (PL-22-DM)
FINISH: Aluminum - Black texture polyester powder coat. Optional finishes available
NOTE: Optional 120v to 277v drivers available. Must use FA-26 mounting post or junction box
| Part Number | PL-23-28BLT |
|---|---|
| Manufacturer | Focus Industries |
| Input Voltage | 120V, 12V |
| Dimmable | No |
| Rated Life | 50,000 hours + |
| Dimensions | 28.0" x 2.25" x 2.25" |
| Warranty | 3 Year |
| Specification Sheet | |
| Lead Time | Build Item 2-3 Weeks |
