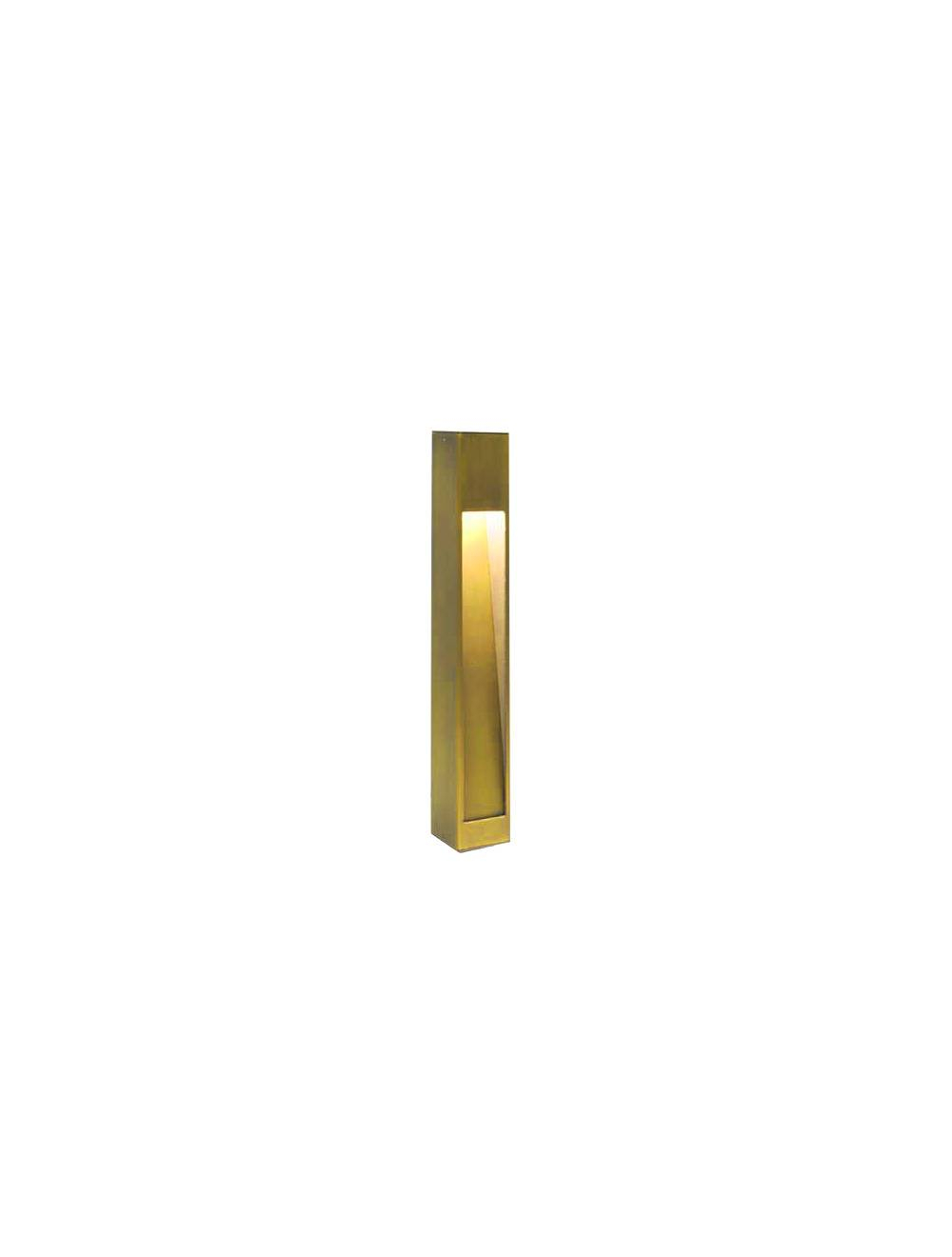

Focus PL-23-28BRS 28" Square Modern Brass Bollard Pathway LED 12v/120v

Focus PL-23-28BRS 28" Square Modern Brass Bollard Pathway LED 12v/120v

CONSTRUCTION:  Extruded 2.25" square brass.

LAMP OPTIONS: LED 6 watt S8 type BA15s base, 12v, 50,000 hr, 500 lumens, 2600k warm or 6000k white (recommended, ships separately, field installed)  The difference between this LED and other brands LEDs is this lamp is replaceable in the future, keep the fixture, replace the lamp.  Also available is an 18w Halogen

SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires

WIRING:  Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring

CONNECTION:  FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only

MOUNTING:  FA-03 black 9" ABS stake, tapped 1/2" NPS (PL-22-DM)

FINISH:  Brass - Unfinished brass. Optional finishes available

NOTE: Optional 120v to 277v drivers available. Must use FA-26 mounting post or junction box

NOTE: Angle cut version: No stake required; 10" of total length designed to go in the ground for the total above-ground height of 18" & 24"
