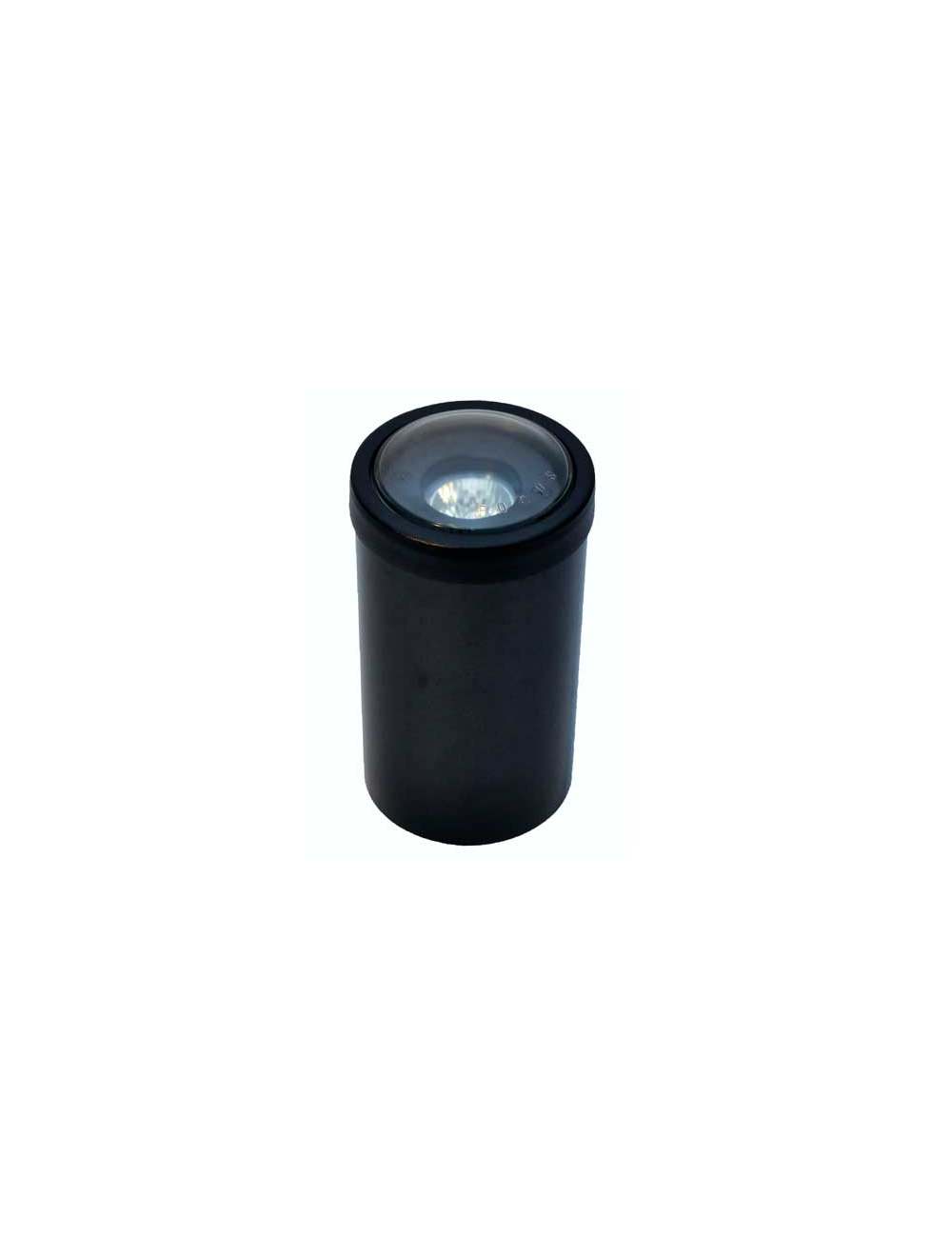

Focus SL-03 In Ground MR16 LED Well Light
CONSTRUCTION:
SL-03: Black extruded ABS housing; cast aluminum or cast brass fixture; cast aluminum or cast brass lens holder & high impact clear tempered convex glass lens
SL-03-AC: Black extruded ABS housing, angle cut; cast aluminum or cast brass fixture
SL-01-ECAC: Black extruded ABS housing, angle cut; cast brass fixture with cast brass angle cap
FIXTURE LENS:
SL-03: High impact clear tempered flat glass
SL-03-AC & SL-03-ECAC: High impact clear tempered convex glass
LAMP OPTIONS: 20w MR16 TITAN 18, 000 hours average rating or Maxlite 5 watt MR16 or 7 watt MR16
SOCKET: High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
FINISH:
Fixture Assembly: Unfinished brass; optional finishes available.
Aluminum Lens Holder: Black texture polyester powder coat. Optional finishes available.
Brass Lens Holder: Unfinished brass. Optional finishes available.
CATALOG NO. |
DESCRIPTION |
EST. SHIP WEIGHT |
---|---|---|
SL-03-BLT |
Well Light, Aluminum Fixture & Lens Holder |
3.0 lbs. |
SL-03-BRS |
Well Light, Brass Fixture & Lens Holder |
4.0 lbs. |
SL-03-AC-BLT |
Well Light, Angle Cut, Aluminum Fixture |
3.0 lbs. |
SL-03-AC-BRS |
Well Light, Angle Cut, Brass Fixture |
4.0 lbs. |
SL-03-ECAC-BRS |
Well Light, Angle Cut, Brass Fixture & Brass Angle Cap |
4.0 lbs. |
Part Number | SL-03 |
---|---|
Manufacturer | Focus Industries |
Watts | 7 Watts |
Lumens | 450 |
Lumens Per Watt | 71 |
CRI | 82 |
Color Temperature | 3000 Kelvin |
Beam Angle | 40° |
Input Voltage | 12V |
Rated Life | 25,000 hours + |
Dimmable | No |
Minimum Operating Temperature | -20° F |
Maximum Operating Temperature | 140° F |
Dimensions | 7.5" x 4.5" |
Warranty | 3 Year |
Lead Time | Build Item 1-2 Weeks |
