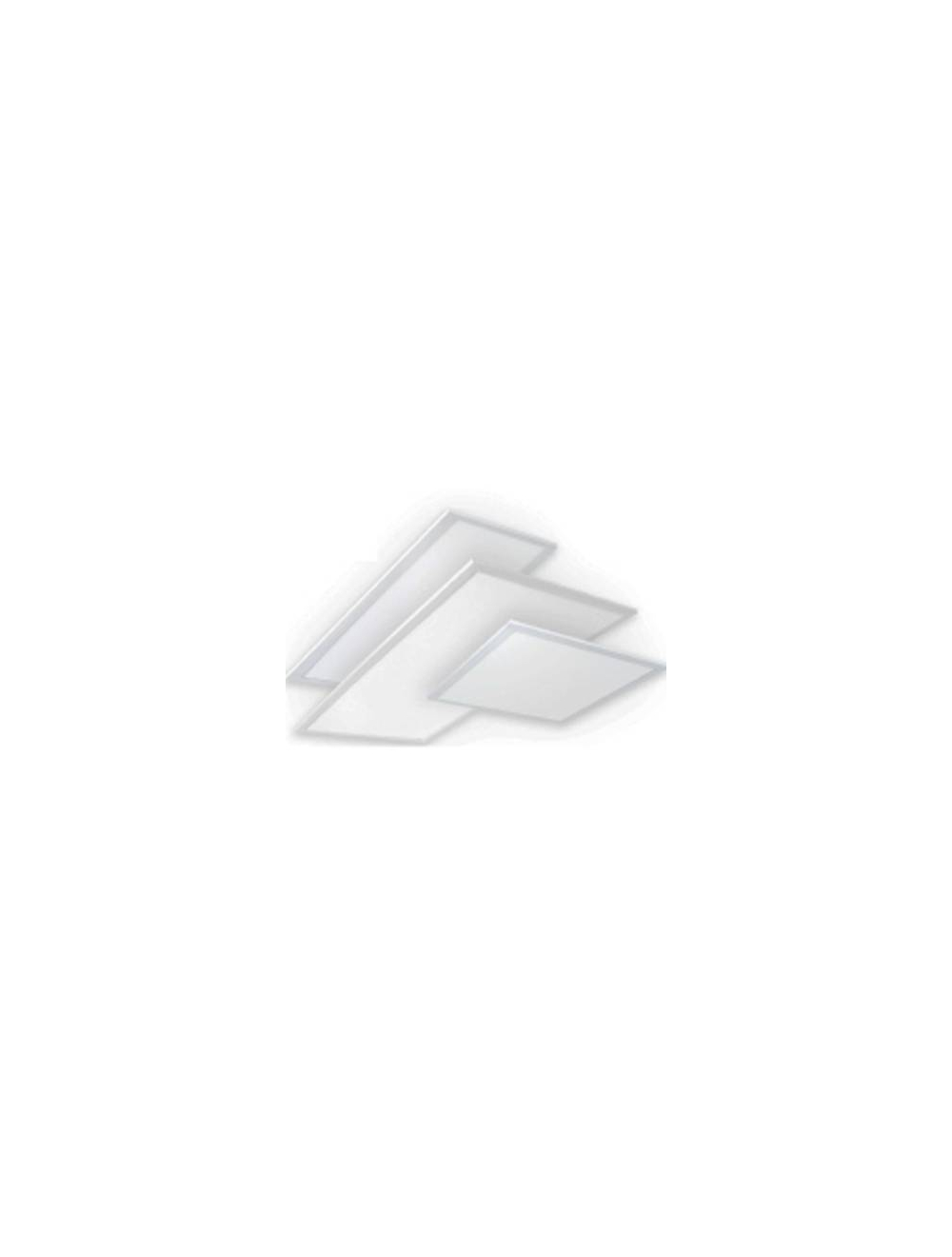

Halco 22FSEPL/8DU Field Selectable Edge Lit Panel 2X2, 25/30/40 watts Selectable CCT 3500/4000/5000K 10331

DESCRIPTION: Halco’s ProLED Select EdgeLit Panel is the ideal solution where lighting preferences vary from space to space. The EdgeLit Panel Series is Field Selectable, allowing the installer to select both the preferred light output and color temperature (via DIP Switch) on the product driver box. The benefit of this is that one luminaire can replace 9 SKUs of our regular EdgeLit Panels. Fewer luminaires mean less inventory and a more efficient job site. At Halco, we only use the highest quality material in our EdgeLit Panel Series design, eliminating the need to worry about yellowing, glare, or drooping after the product is installed. When applications like Healthcare facilities call for multiple lumen packages and color temperatures, the ProLED Select EdgeLit Panel Series is the ideal solution to simplify BOMs and increase customer satisfaction.

$62.94
Lead Time
In Stock - Quick Ship
SKU
22FSEPL/8DU

Performance

- Field Selectable Light Output
· 1x4 Selectable 25W, 30W, 40W
· 2x2 Selectable 25W, 30W, 40W
· 2x4 Selectable 30W, 35W, 45W
- Overall Efficacy >110 lm/W
- Field Selectable CCT
· 3500K, 4000K, 5000K
- CRI >80
- 0-10V Dimming Standard
- Universal 120-277VAC
- L70 Lumen Maintenance > 50,000 hours at 25°C

Design
- Designed for fast and easy install
- UGR <19
- Sleek and Modern Design

Certification
- UL Listed
- R0Hs Compliant
- Damp Location
- IC Rated
- IP40 Rated

Construction
- Field Adjustable Driver via DIP Switch
- PMMA Lens Material
- Die-Cast Steel Housing

More Information
Part Number 22FSEPL/8DU
Manufacturer Halco Lighting
Watts 25 Watts, 35 Watts, 40 Watts
Lumens 5000K
CRI 80
Color Temperature 3500 Kelvin, 4000 Kelvin, 5000 Kelvin
Input Voltage 0-10V, 120V-277V
Minimum Operating Temperature -40C, -40F
Maximum Operating Temperature 45
Rated Life 50,000 hours +
Dimensions 2' x 2'
Certifications ETL Listed
Warranty 5 Year
UPC Code 807154103317
Lead Time In Stock - Quick Ship
