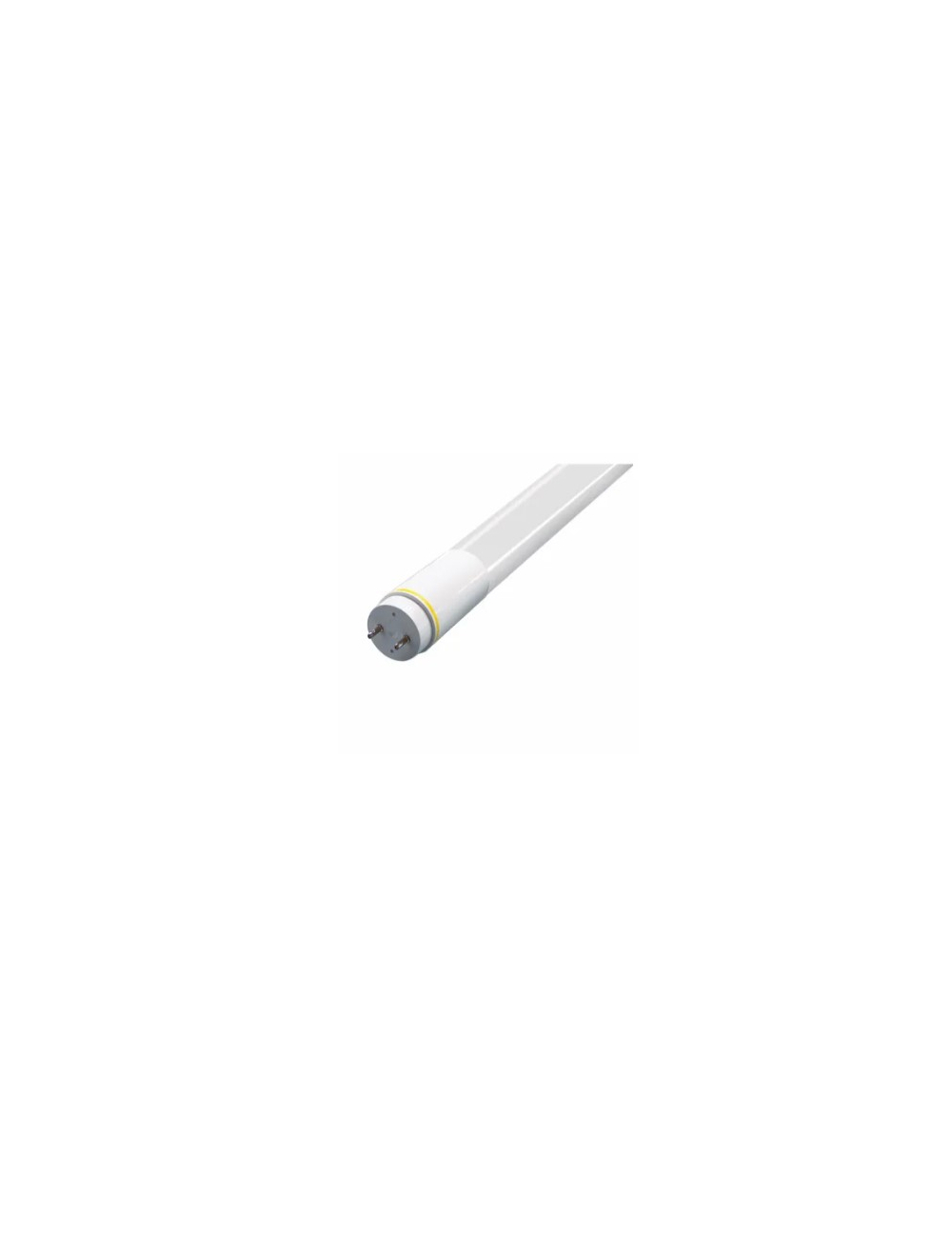

This Type B LED T8 is a reliable and efficient linear fluorescent T8 replacement that can be installed in a single or double ended ballast bypass application. This lamp's PET coated glass tube allows it to be used in applications that require food safe rated lamps, or in locations where shattered glass is a concern due to its NSF-2 Food Equipment Rating.
• Current leakage protection (UL 1993)
• PET Coated (NSF-2 Food Equipment Safe)
• Type B (Ballast Bypass)
• 120-277VAC (Single and Double Ended)
Performance:
• 14 watts (1800 lumens)
• Ambient temperature range: -20C to 45C
• 3500K, 4000K, 5000K, and 6500K
• L70 > 50,000 hours
• 80+ CRI
• 128+ lumens per watt
Certifications:
• UL classified (1598C retrofit kit)
• NSF-2 food equipment safe
• FCC compliant
• DLC 5.1 certified
• Suitable for dry and damp locations
• ROHS compliant
Construction:
• 48" Frosted PET coated glass tube
• Internal driver (Type B - ballast bypass)
• Internal fuse for current leakage protection
Part Number | 48T8-14-835-DSE-BYP-LED-CG |
---|---|
Manufacturer | Halco Lighting |
Watts | 14 Watts |
Color Temperature | 3500 Kelvin |
CRI | 80 |
Lumens | 1800 |
Lumens Per Watt | 128 |
Rated Life | 50,000 hours + |
Input Voltage | 120V-277V |
Dimmable | Yes |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 113° F |
Dimensions | 48" |
Lead Time | In Stock - Quick Ship |
Certifications | , , , |
Specification Sheet | Upon Request |
UPC Code | 807154872060 |
Warranty | 5 Year |
