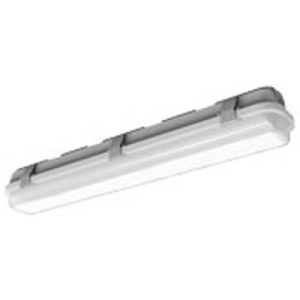

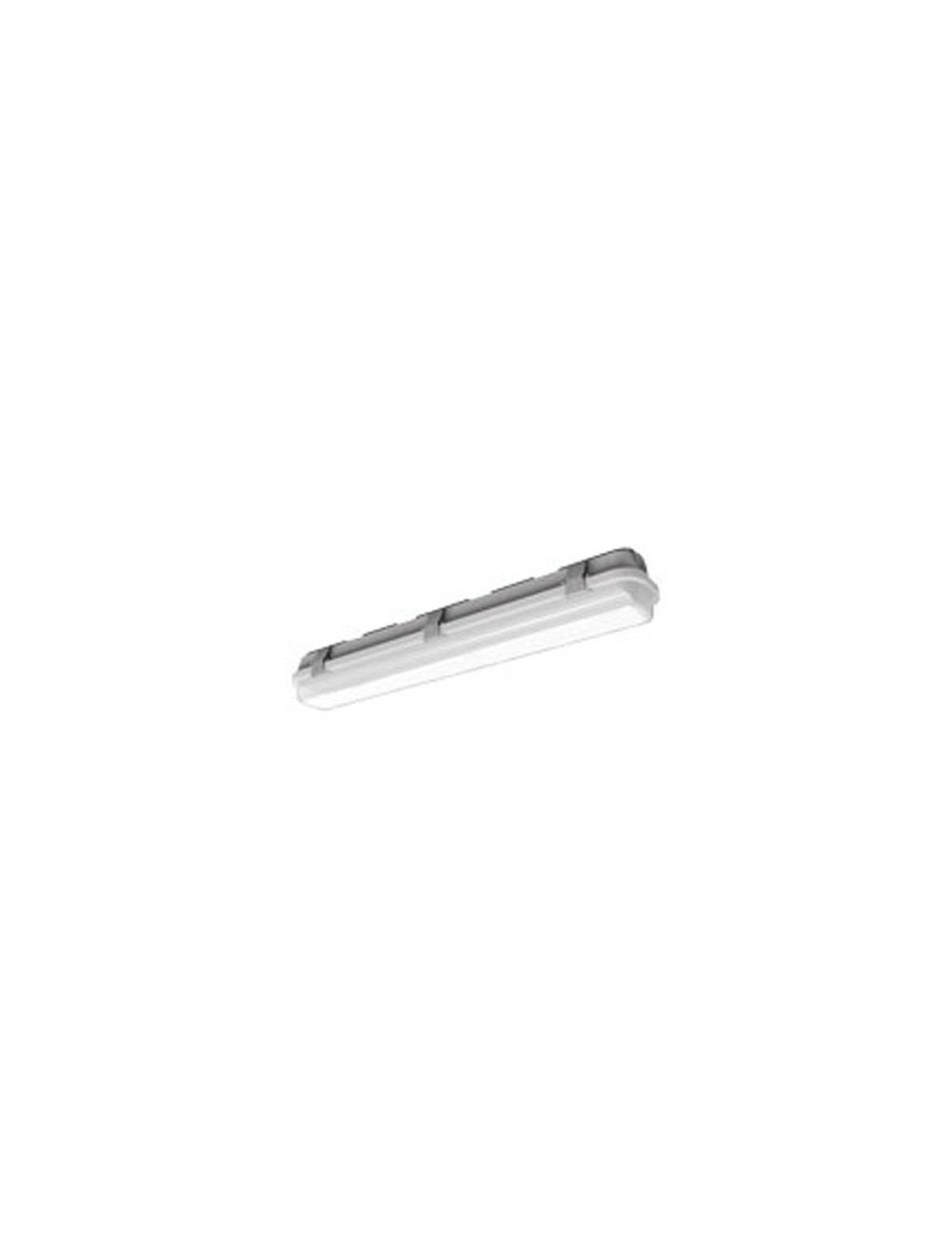

Halco HLVT4/40U40 Linear Vaportight 4FT 40W 120 277V 4000K 10316
Halco’s Linear Vaportight – HLVT Series offers outstanding value and features long lasting reliability. The product is easy to install, featuring stainless steel clips, tethered LED boards, and multiple mounting options. It is the ideal industrial solution aimed to meet demanding environment needs. The lens is designed to provide visual comfort while delivering the efficient light output. The HLVT Series is guaranteed to deliver immediate energy savings and low maintenance costs. This easy-to-install vaportight is a low-cost solution rated for wet locations and stands up to the elements with its IP66 rating.
Performance
- LEDs are rated for greater than 100,000 hour life with calculated lumen maintenance >70% (l70) at 25°c.
- 0-10V dimmable driver standard available in 120-277v
- -40° To +55°c ambient operating temperature
- Power factor > 0.9
- 4kV surge protection
Design
- Designed for the harshest elements: tamperproof, waterproof, corrosion proof, and inset-proof
- Tethers connect the housing to the LED Board
- High Penetration Lens with Prism Design and Ray Concentration
Environment
- IP66 rated
- UL wet location listed
- Rohs compliant
- Meets FCC part 15, subpart b, class a standards for conducted and radiated emissions
Certification
- All luminaires are built to UL1598 standards, and bear appropriate culus labels for wet location
- DLC® (designlights consortium) premium qualified - see www.Designlights.Org
- IP66
Options
- Aircraft Cables
- Cord and Plug Assembly
- Microwave Multi-Level Motion Sensors
- Emergency Battery Backup
Construction
- Durable, 5VA Impact-Resistant Polycarbonate Housing
- Stainless Steel Clips for Tooless Entry
- Non-Corrosive Polycarbonate Housing
- Completely Gasketed to maintain a true vaportight form
| Part Number | HLVT4/40U40 |
|---|---|
| Manufacturer | Halco Lighting |
| Watts | 40 Watts |
| Lumens | 5200 |
| CRI | 80 |
| Color Temperature | 4000 Kelvin |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| Rated Life | 50,000 hours + |
| Minimum Operating Temperature | -40C (-40F) |
| Maximum Operating Temperature | 55C (131F) |
| Dimensions | 49.5" x 4.4" x 4.0" |
| Certifications |  ,  ,  ,  |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 807154103164 |
