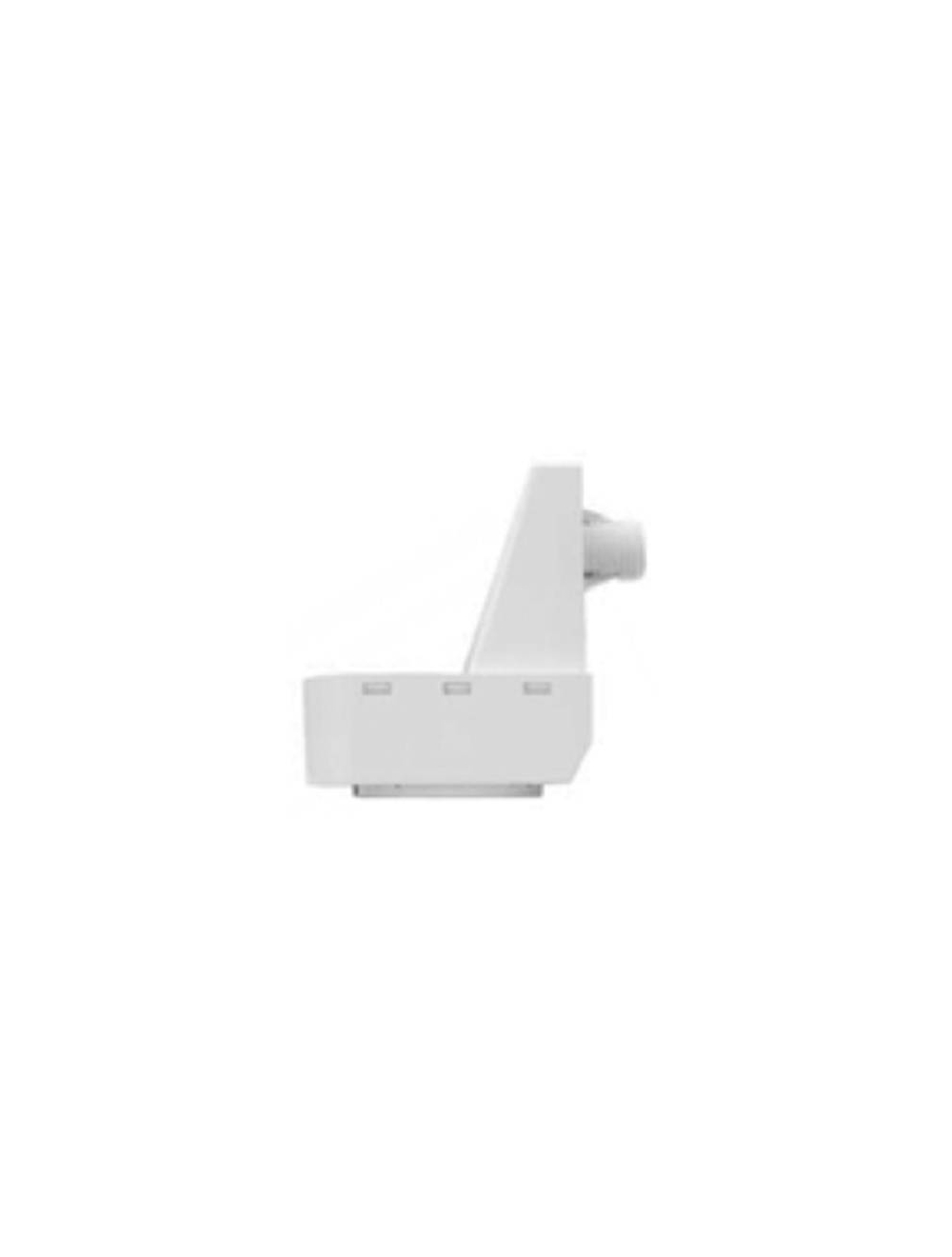

Halco LHB/MC (0-10V) Motion Control Sensor LSXR 610 HL 99986

The LXSR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR Family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements.

$70.77

Lead Time

In Stock - Quick Ship

SKU

LHB/MC

Details

FEATURES
- Four Interchangeable lenses- high mount 360 degrees, low mount 360 degrees, high mount aisleway, and small motion 360 degrees
- Integrated mounting bracket drops lense down 3" from chase nipple- no braket accessory required
- 100% digital PIR detection- provides excellent RF immunity
- No PIR field calibration or sensitivity adjustments required
- Single or dual relay versions- designed with robust protection from the harsh switching requirements of T5 flourescent and LED loads
- Powers from single or two-phase line connections
- Reversible hot & load wires- eliminates backwards wiring
- Photocell and 0-10 VDC dimming options
- Digital push-button programming- no tools or analog adjustments required
- Non-volatile settings memory
- Convenient test mode- quikens initial walk and/or photocell testing
- Green LED indicator
- LampMazimizer minimum on timer (15 min) enables usuage of shorter ocupancy time delays white protecting flourescent lamp life
- Default 10 miniute occupancy time delay
