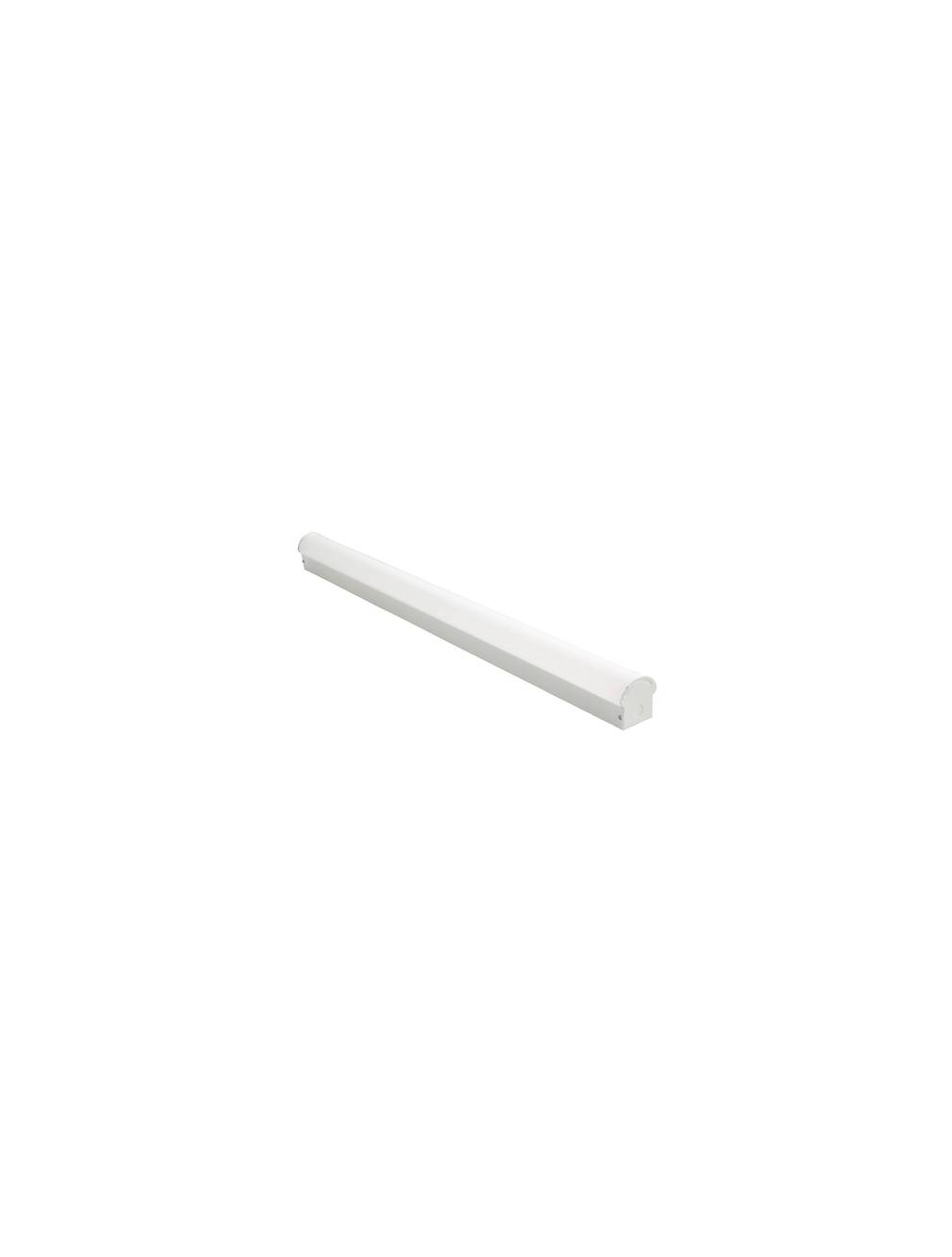

Halco's Linear Strip Retrofit Series are the ideal solution to convert outdated lighting into energy-efficient LED fixtures in a matter of minutes. One can expect immediate cost savings thru ease of installation, reduced maintenance costs, and up to 50% cut in energy consumption. Each retrofit includes all one needs for seamless installation. The products are designed to universally fit most 4.25" and 5.25" T8/T12 fluorescent wide strips. The diffused lens promotes aesthetically pleasing light output with minimal glare.
Performance
- Replaces pre-existing 4' and 8' fluorescent strip fixtures
- Driver efficiency >85%
- CRI >80
- L70 Lumen Maintenance > 60,000 hours
- 5 year limited warranty
- 0-10V Dimming Standard, dimmable down to 10%
- Universal 120-277VAC
Construction
- Universal design fits most 4.25" and 5.25" T8/T12 Fluorescent housing
- 2 of the 4' Units combine with easy-to-use bracket to make 8' unit
- Intergal LED gear tray and reflector
- Driver on board
- Diffused lens that requires no additional frame or fastener
Applications
- Commercial
- Industrial
- Retail
- Starage/Utility
- Shops
- Task Lighting
Certification
- UL Listed
- R0Hs Compliant
- DLC Premium
- Damp Location
Part Number | LS8/72U50 |
---|---|
Manufacturer | Halco Lighting |
Watts | 72 Watts |
Lumens | 9820 |
CRI | 80 |
Color Temperature | 5000 Kelvin |
Beam Angle | 120° |
Input Voltage | 120V-277V |
Rated Life | 50,000 hours + |
Minimum Operating Temperature | -40C (-40F) |
Maximum Operating Temperature | 45C (113F) |
Dimensions | 95.8" x 5.9" x 2.37" |
Warranty | 5 Year |
Certifications | , , , |
UPC Code | 807154102440 |
Lead Time | In Stock - Quick Ship |
