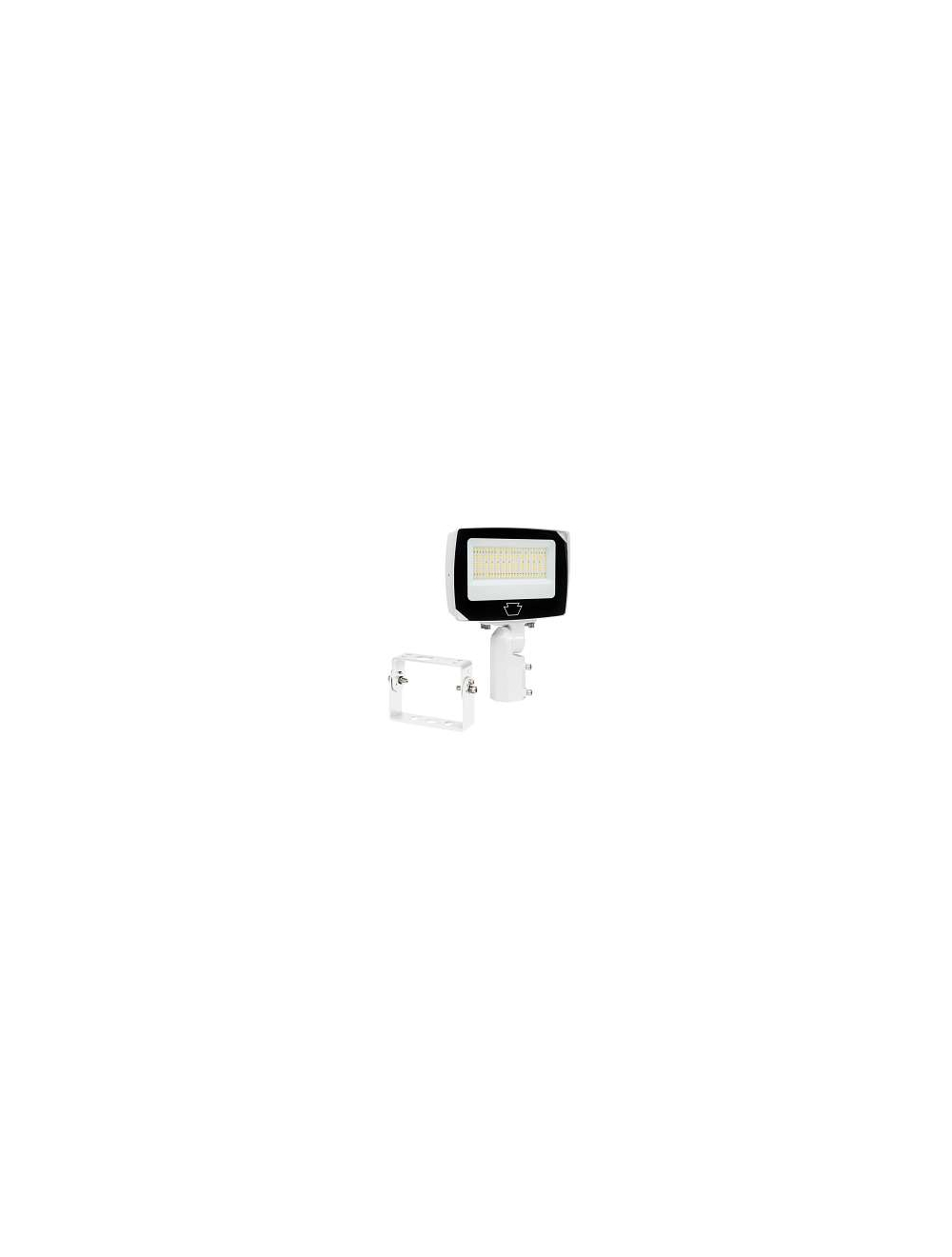

Keystone KT-FLED100PS-R4A-UNV-8CSB-VDIM-W LED Flood Light Wattage and CCT Selectable Built-In Photocell 120-277 Vac Standard Wide Flood Trunnion Mount White
LED flood light with wattage and CCT selectable settings, built-in photocell, and 120-277 Vac input. Standard wide flood distribution with trunnion mount in a white housing.
• Keystone Color Select technology (3000K/4000K/5000K)
• LED flood light with innovative design based on established floodlight principles
• Heavy-duty, die-cast aluminum housing
• Two interchangeable mount options included in each package
• Built-in dusk-to-dawn photocell under 3/4" knockout with anti-yellowing agent
• NEMA 7H x 7V wide floodlight distribution
• Keystone 0-10V dimming driver with 2.5kV surge protection (6kV surge protection on 100W fixture)
• Ambient operating temperature: -40°C/-40°F to 50°C/122°F
• UL Certified for wet locations; IP65 rated
• Power Factor > 0.95
• THD: <20%
• LED chip lifetime: L70 >100,000 hrs @25°C/77°F ambient
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
| Part Number | KT-FLED100PS-R4A-UNV-8CSB-VDIM-W |
|---|---|
| Manufacturer | Keystone Technologies |
| Watts | 80 Watts, 90 Watts, 100 Watts |
| Lumens | 14,000 |
| CRI | ≥80 |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120V-277V |
| IP_Rating | IP65 |
| Certifications |    |
| Warranty | 10 Year |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 843654160078 |
