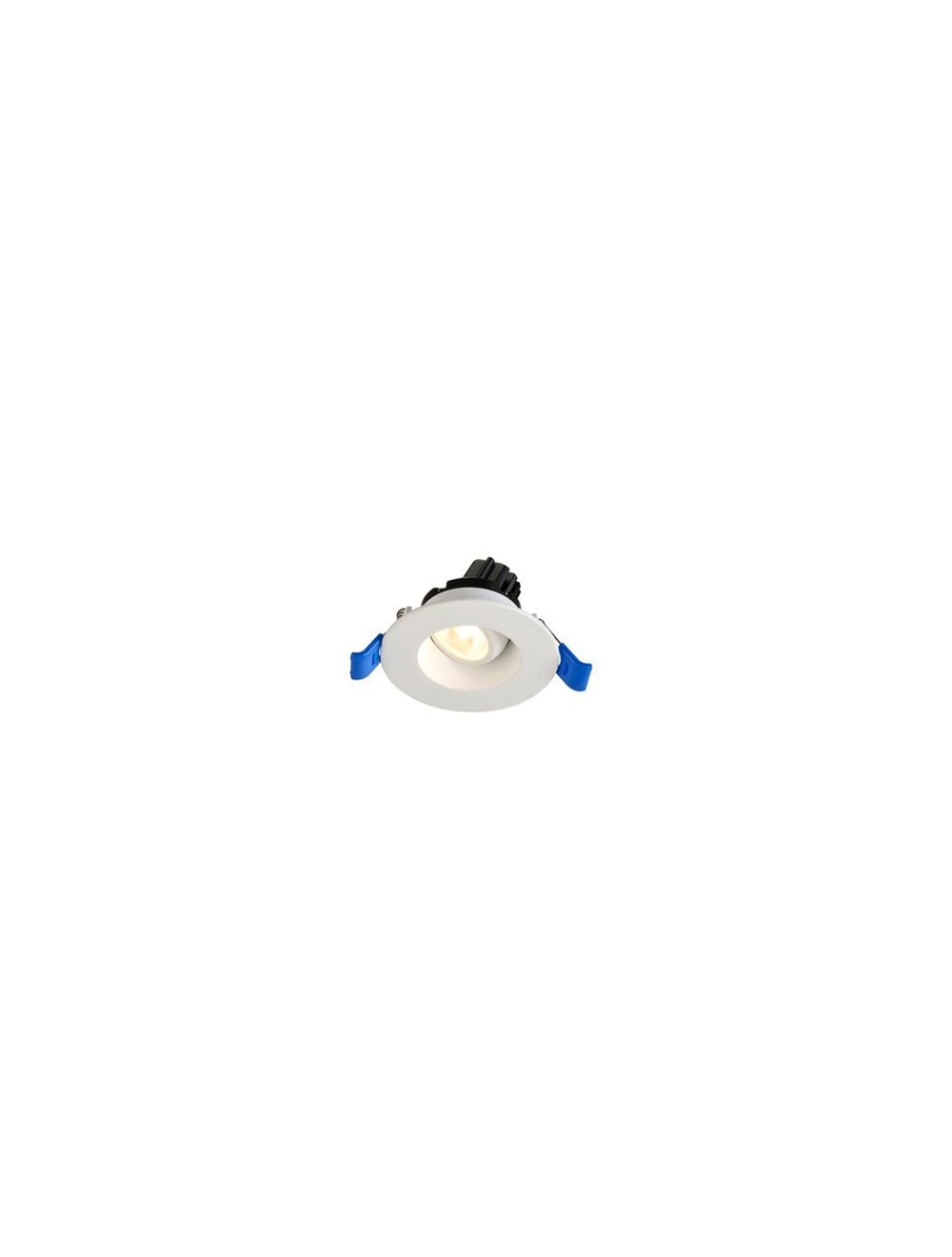

Lotus LRG2 2″ 5W Eyeball Gimbal LED Regressed Downlight
Prodcut Description: 2" Eyeball Gimbal Recessed Round LED With Integral Driver In Connection Box. Fits Where No Other Recessed Fixture Can Light Output 380 lm Unique Design: Gimbal Yet Air-Tight Without Housing Needed
Unique Design: 1/2″ Regressed Round 2″ gimbal with integral LEDs. Class 2 Isolated external driver factory installed inside junction box.
One driver for every fixture required.
Body: Durable, Die Cast Aluminum Alloy for Optimal Heat Dissipation. Paint: Oil Based Spray Painted - Scratch Resistant And Smooth Finish.
LED: Epistar COB Custom Packaged by Hongli Tronic with LM80. Guaranteed 98% Lumen Maintenance After 6,000 Hours. Strict Binning To Ensure Consistent Light Colour. CRI 90 for True and Colour Rendering.
Driver: 4th Generation Lotus Designed. Field Proven Since 2011. Connection Box: Patented Invention By Lotus LED Lights. Saves Contractors Labour On Installation.
Testing: Every Single Driver Is Powered For Minimum 24 Hours Together With The Fixture That It Is Shipped With. No Random Tests.
Mounting:Cut hole in ceiling and snap fixture in opening with attached spring clips. Ceiling Clearance Required: 1 1/2″ with driver remotely installed, 5″ if driver is next to the fixture..
-Default Driver Input Voltage: 120V AC 60 Hz (Dimmable)
-24V DC model Input Voltage: 20-28V DC (Not Dimmable)
-Power factor: > 0.95
-Energy Used: 5W
-Halogen equivalent: 35W
-Beam Angle: 24° Beam with 30° tilt and 360° rotation
-Light colour options: Warm White 2700K, Soft White 3000K, Neutral White 4100K
-Light output: Warm White 380 lm, Soft White 400 lm, Neutral White 430 lm
-CRI: 94 for the 2700K & 3000K, 92 for the 4100K
-Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
-Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
-Rated: Type IC (Direct Contact with Insulation), Energy Star, T24, Air-Tight
Part Number | LL2G |
---|---|
Manufacturer | Lotus |
Warranty | 10 Year |
Recessed Can Size | 2 Inch |
Certifications | , , |
Specification Sheet | |
UPC Code | 648044943558 |
Lead Time | In Stock - Quick Ship |
