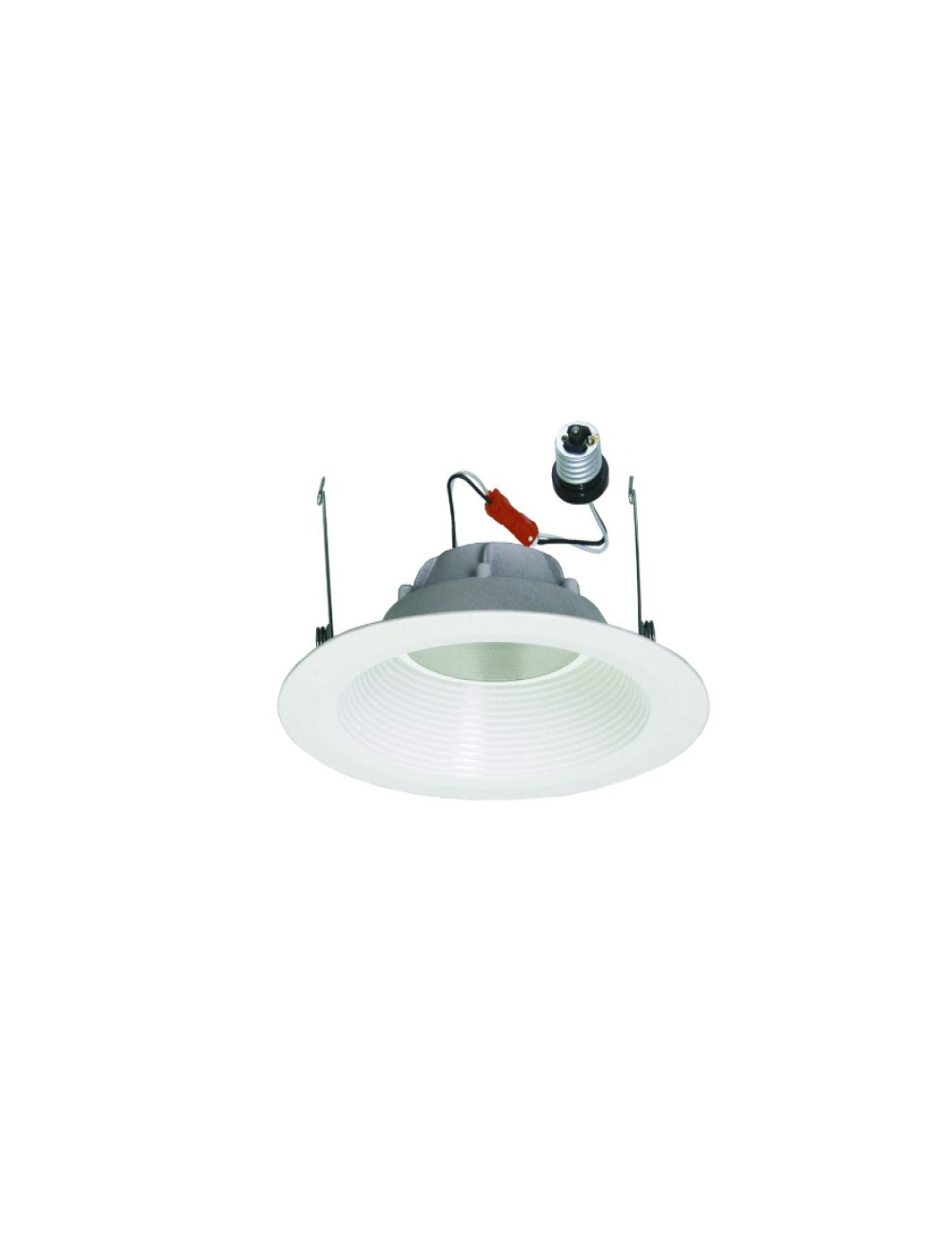

LSI 6“ LED Recessed Retrofit-Kit with E26 Base PDL6KADJ LED 07 40 120 WH

LSI 6“ LED Recessed Retrofit-Kit with E26 BasePDL6KADJ LED 07 40 120 WH

6” eyeball Retrofit LED module & trim kit with E26 medium screw base for 6” IC/Airtight and Non-IC incandescent recessed downlights. High efficacy 120V DOB (Driver On Board) Module LED with integral dimmer. The optical diffuser produces high lumen transmission and even illumination. Suitable for damp locations.

$55.00

Lead Time

Build Item 7-10 Days

SKU

PDL6KADJ-LED-07-40-120 WH

Options and Accessories

90 CRI + $10.00

Qty:

GU24 Base Adaptor + $10.00

Qty:

PDL6KADJ HSG RM 6" Remodel Housing + $28.57

Qty:

Qty:

Details

LSI 6“ LED Recessed Retrofit-Kit with E26 Base PDL6KADJ LED 07 40 120 WH

LED Module
• Aluminum extruded heat sink facilitates heat dissipation for maintaining constant light output, color and life of solid state components.
• Adjustable lamp direction in 358˚ rotation and 0~30˚ tilt.

Lens
• Impact-resistant plastic.
• High lumen transmission and diffusing for even illumination.

Mounting
• Precise formed steel torsion spring bracket.
• Torsion spring fit compatible housing with torsion spring mounting tabs.

Electrical Connection
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housing.
• Also available GU24 base twist-lock adaptor for compact fluorescent housing. (Optional)

LED Power Supply Driver
• 10-100% dimmable for 120V electronic low voltage dimmer switches.
• Power factor >.90, THD <20% and has integral thermal protection.
• Driver mounts externally to the module, allowing future replacement, if needed.

Listings
• cETLus Listed
• State of California Title 24

Warranty
• LSI LED Fixtures carry a limited 5-year warranty.

Specifications

More Information
Part Number	PDL6KADJ LED 07 40 120 WH
Manufacturer	LSI
Recessed Can Size	6 Inch
Watts	14 Watts
Lumens	772
CRI	80
Color Temperature	4000 Kelvin
Beam Angle	80°
Dimmable	Yes
Input Voltage	120V
Rated Life	50,000 hours +
Dimensions	7 3/4" W x 4 1/2 H
Certifications	,
Warranty	5 Year
Lead Time	Build Item 7-10 Days
