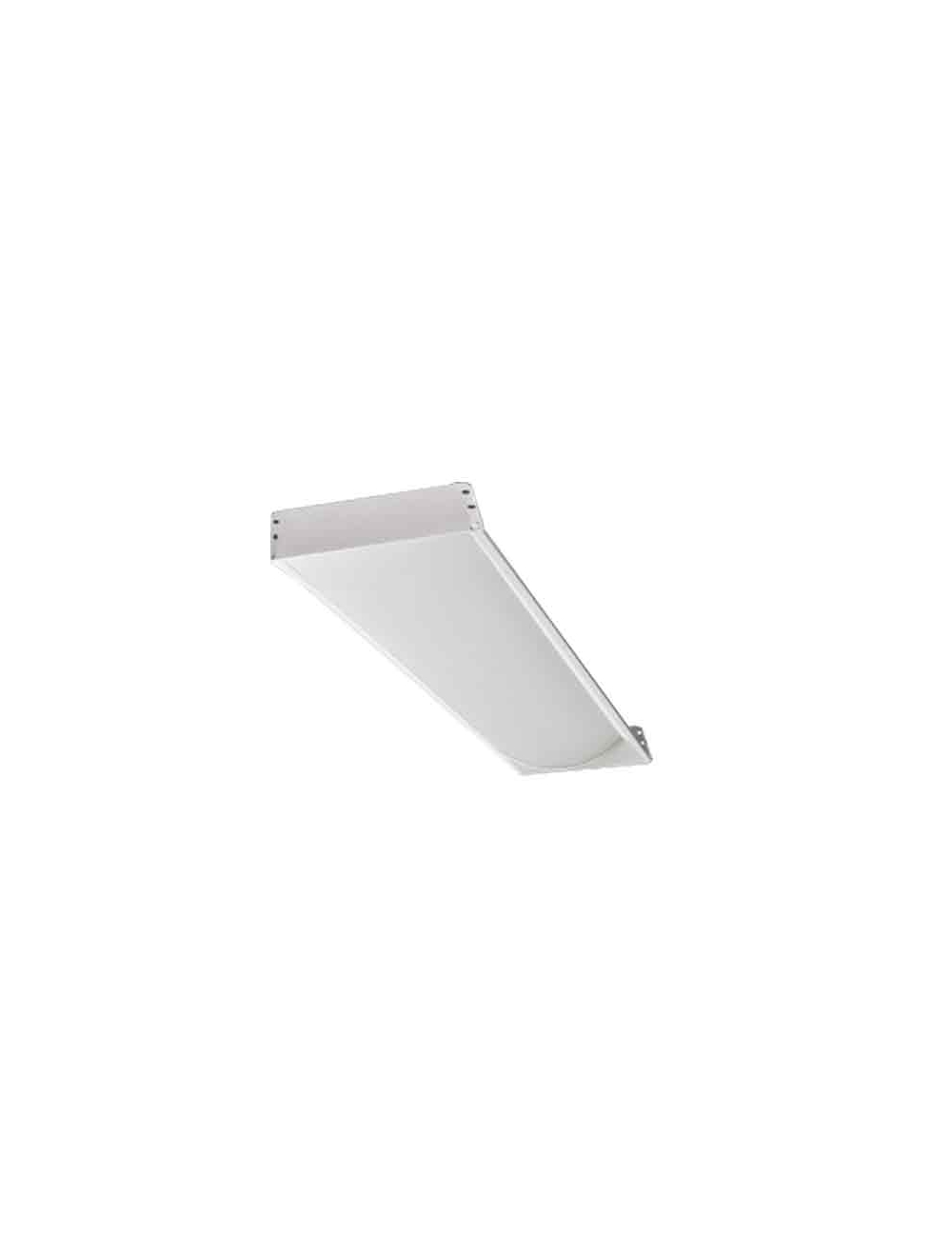

LSI LPEC LED 1x4 Low Profile Recessed Troffer

LSI LPEC LED 1x4 Low Profile Recessed Troffer

Optical System:
• High transmission impact resistant diffuse acrylic radius lens eliminates bright spots from individual LED’s and provides high vertical illumination and visual comfort.
• Use of closely spaced medium-power, high brightness chips minimizes pixelation and provides uniform lens luminance.
• Available in 5000K, 4000K, 3500K and 3000K color temperatures.
• Minimum CRI of 80. Optional 90 CRI available, consult factory for lead times

Electrical:
• High-performance driver features over-voltage, under voltage, short-circuit and over temperature protection.
• 0-10 volt dimming (1% - 100%) standard.
• Standard Universal voltage (120-277 Vac) Input 50/60 Hz or optional High voltage (347Vac).
• L70 Calculated Life: >100k Hours (See Lumen Maintenance on Page 2)
• Total harmonic distortion: <20% • Power factor: >.95
• Input power stays constant over life.
• Optional 120v-277v integral emergency battery pack is available to meet critical life-safety lighting requirements. The 90-minute batteries provide constant power to the LED system, ensuring code compliance. A test switch/indicator button is installed in the housing for ease of maintenance.

Controls:
• LSI AirLink™ controls featuring Lutron Clear Connect makes each luminaire controllable, creating a wireless communication with other AirLink™ control devices such as dimmers, switches, occupancy sensors and photocontrols. The integrated sensor is both a passive infrared motion detector and photocell.
• Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
• Sensor Ready Drivers available; consult factory for limitations.

Construction:
• Rigid housing is die-formed 20-gauge cold rolled steel for consistency and strength.
• End plates come equipped with integral NEC compliant earthquake clips.
• Ultra-slim < 4” luminaire height and lightweight design effectively target a broad range of plenum/wall spaces and allow for easy installations.
• Below plenum room side access to optical chamber and driver compartment via pressure removable radius lens and side panel.
• Luminaire is proudly manufactured in the U.S. • Luminaire is painted after fabrication following treatment with phosphate rust inhibitor. Finish coating of housing reflecting surfaces is with highreflectance white (minimum 92%) polyester powder.

Installation:
• Luminaire installs by lifting it through grid ceiling and resting it on the T-bars.
• Luminaire installs onto standard 15/16” and narrow 9/16” T-grid ceiling systems.
• An accessory flange kit is available for installing into drywall or plaster.

Warranty:
• LSI LED Fixtures carry a 5-year warranty.
• 1 Year warranty on optional Battery Back Up. Test regularly in accordance with local codes.

Listings:
• Listed to UL 1598 and UL 8750 for 25°C Ambient applications.
• IC Rated.
• DesignLights Consortium® (DLC) Premium and/or standard qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• RoHS Compliant.
• American Recovery and Reinvestment Act Funding Compliant.
• Lighting Facts Approved.
• Suitable For Damp Locations.
