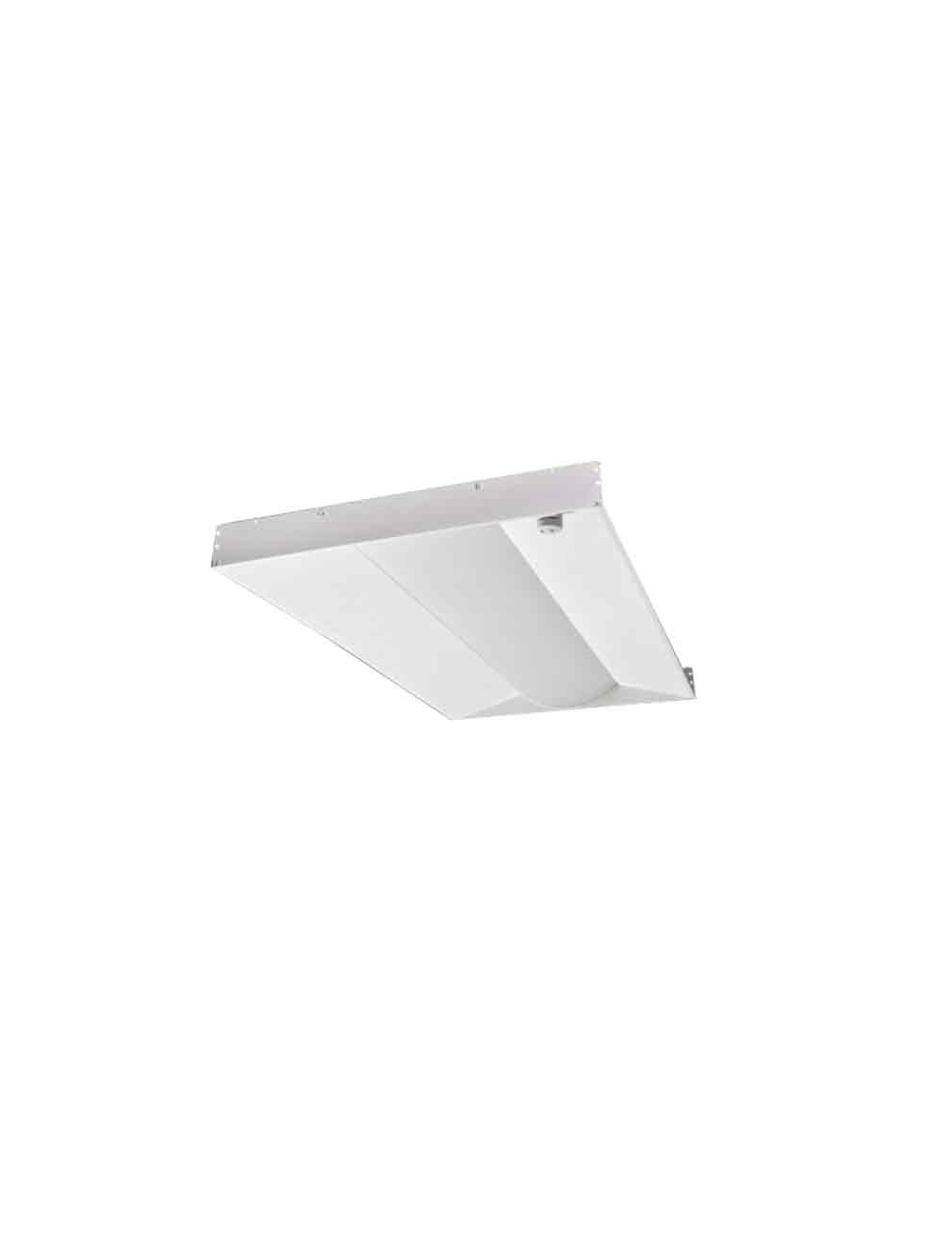

LSI LPEC LED 2x4 Low Profile Recessed Troffer
The LPEC’s low profile design makes it ideal for shallow plenum applications. Best in class configurable lumen packages and efficiencies that target DLC Standard/ Premium. This fixture delivers even illumination with excellent, low angle brightness control throughout the space. Available in 1x4, 2x2, and 2x4.
LSI LPEC LED 2x4 Low Profile Recessed Troffer
Optical System:
• High transmission impact resistant diffuse acrylic radius lens eliminates bright spots from individual LED’s and provides high vertical illumination and visual comfort.
• Use of closely spaced medium-power, high brightness chips minimizes pixelation and provides uniform lens luminance.
• Available in 5000K, 4000K, 3500K and 3000K color temperatures.
• Minimum CRI of 80. Optional 90 CRI available, consult factory for lead times
Electrical:
• High-performance driver features over-voltage, under voltage, short-circuit and over temperature protection.
• 0-10 volt dimming (1% - 100%) standard.
• Standard Universal voltage (120-277 Vac) Input 50/60 Hz or optional High voltage (347Vac).
• L70 Calculated Life: >100k Hours (See Lumen Maintenance on Page 2)
• Total harmonic distortion: <20% • Power factor: >.95
• Input power stays constant over life.
• Optional 120v-277v integral emergency battery pack is available to meet critical life-safety lighting requirements. The 90-minute batteries provide constant power to the LED system, ensuring code compliance. A test switch/indicator button is installed in the housing for ease of maintenance.
Controls:
• LSI AirLink™ controls featuring Lutron Clear Connect makes each luminaire controllable, creating a wireless communication with other AirLink™ control devices such as dimmers, switches, occupancy sensors and photocontrols. The integrated sensor is both a passive infrared motion detector and photocell.
• Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
• Sensor Ready Drivers available; consult factory for limitations.
Construction:
• Rigid housing is die-formed 20-gauge cold rolled steel for consistency and strength.
• End plates come equipped with integral NEC compliant earthquake clips.
• Ultra-slim < 4” luminaire height and lightweight design effectively target a broad range of plenum/wall spaces and allow for easy installations.
• Below plenum room side access to optical chamber and driver compartment via pressure removable radius lens and side panel.
• Luminaire is proudly manufactured in the U.S. • Luminaire is painted after fabrication following treatment with phosphate rust inhibitor. Finish coating of housing reflecting surfaces is with highreflectance white (minimum 92%) polyester powder.
Installation:
• Luminaire installs by lifting it through grid ceiling and resting it on the T-bars.
• Luminaire installs onto standard 15/16” and narrow 9/16” T-grid ceiling systems.
• An accessory flange kit is available for installing into drywall or plaster.
Warranty:
• LSI LED Fixtures carry a 5-year warranty.
• 1 Year warranty on optional Battery Back Up. Test regularly in accordance with local codes.
Listings:
• Listed to UL 1598 and UL 8750 for 25°C Ambient applications.
• IC Rated.
• DesignLights Consortium® (DLC) Premium and/or standard qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• RoHS Compliant.
• American Recovery and Reinvestment Act Funding Compliant.
• Lighting Facts Approved.
• Suitable For Damp Locations.
Part Number | LPEC24 |
---|---|
Manufacturer | LSI |
Troffer Size | 2' x 4' |
Troffer Style | Volumetric |
Color Temperature | 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
Watts | 23 Watts, 28 Watts, 32 Watts, 36 Watts, 42 Watts, 46 Watts, 49 Watts, 58 Watts, 64 Watts, 68 Watts |
Lumens | Varies |
Lumens Per Watt | Varies |
CRI | 80 |
Input Voltage | 120V-277V |
Dimmable | Yes |
Rated Life | 100,000 hours + |
Minimum Operating Temperature | -0° F |
Maximum Operating Temperature | 104° F |
Dimensions | 23.714" x 23.714" x 2.905" |
Certifications | , , , |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
