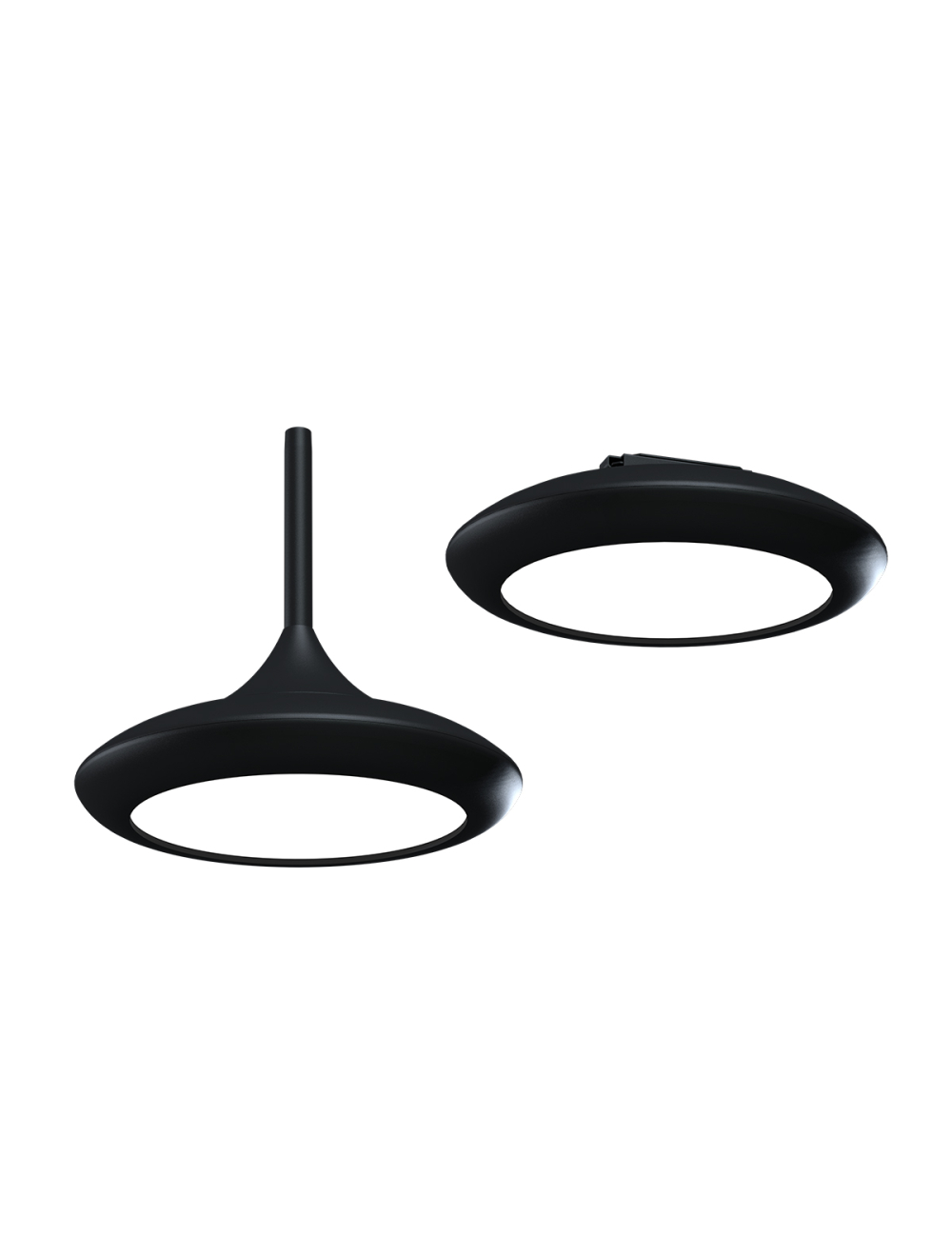

LSI Opulence – Pendant & Surface Mounted Light Multiple Variations

LSI Opulence – Pendant & Surface Mounted Light

Opulence Pendant & Surface Mount Luminaires provide versatility with a wide variety of mounting options and styles. Pendant versions mount to a 3/4″ rigid stem and are available with a decorative shroud (painted to match housing or translucent for uplight). Optional uplight delivers either 5 or 10% uplight and a 2″ stem adapter can be used for mounting to our LifeStyle classic hook brackets.  Surface/Direct mount versions are provided with a hinged 16ga galvanized mounting bracket for ease of installation and maintenance and mounts directly to a horizontal surface or 4″ junction box.

Featuring a large aperture lens with a dense array of LEDs, Opulence offers best-in-class performance with high efficacy LEDs and true IES distributions. Optional diffuse lens available for enhanced visual comfort. Available in LSI’s 8 standard painting finishes as well as custom colors.

Construction
• Rugged die-cast aluminum housing.
• Architecturally pleasing with no visible electronics, hardware, or seams from ground level.
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
• Optional spun aluminum shroud provides a streamlined transition from stem to luminaire while also deterring nesting (3/4” stem/pendant only).
• External Shield available for field installation (see accessory ordering information and dimensions for details).

Optical System
• High density LED optical system delivers industry leading optical performance and visual comfort.
• 7 distribution types 3W, 4F, 5Q, 5C, 5R, 5D & AD
• Diffused lens version provides maximum visual comfort with reduced brightness and LED pixelization.
• Zero uplight.
• Available in 5000K, 4000K, 3500K, 3000K and 2700K color temperatures per ANSI C78.377.
• Minimum CRI of 80

Electrical
• High-performance driver features overvoltage, under-voltage, short-circuit and over-temperature protection (6kV surge standard).
• 0-10V dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).
• Total harmonic distortion: <20%
• Operating temperature: -40°C to +40°C (-40°F to +104°F).
• Power factor: >.90
• Input power stays constant over life.
• Optional 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• Driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed.

Controls
• Integral passive infrared Bluetooth™ motion and photocell sensor options. Fixtures operate independently and can be commissioned via an iOS or Android configuration app.
• LSI’s AirLink™ Blue lighting control system is a simple feature-rich wireless Bluetooth mesh network. The integrated fixture sensor module provides wireless control of grouped fixtures based on motion sensors, daylight or a fully customizable schedule. Updates and modifications to the control strategy are easily implemented via an intuitive iOS app.

Installation
• Pendant mounting via rigid 3/4” stem (order stem seperately), 6’ wire leads provided.
• Direct/surface mounts to a 4” (102mm) square or octagon box (box by others).
• Hinged 16ga galvanized mounting bracket provided for ease of installation and maintenance.
• Optional stainless steel crown for mounting to 2” tenon (order tenon separately). Wire leads pass through compression seal fitting to prevent water entry. Once-piece silicone gasket provides water and dust tight seal.
• For wall mount arm please reference OPS wall mount spec sheet.

Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp.com/ resources/terms-conditions-warranty/ for more information.

Listings
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• IDA compliant; with 3000K and warmer color temperature selection.
• Title 24 Compliant; see local ordinance for qualification information. • Suitable for wet locations.
• IP66 rated Luminaire per IEC 60598-1.
• DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights. org/QPL to
