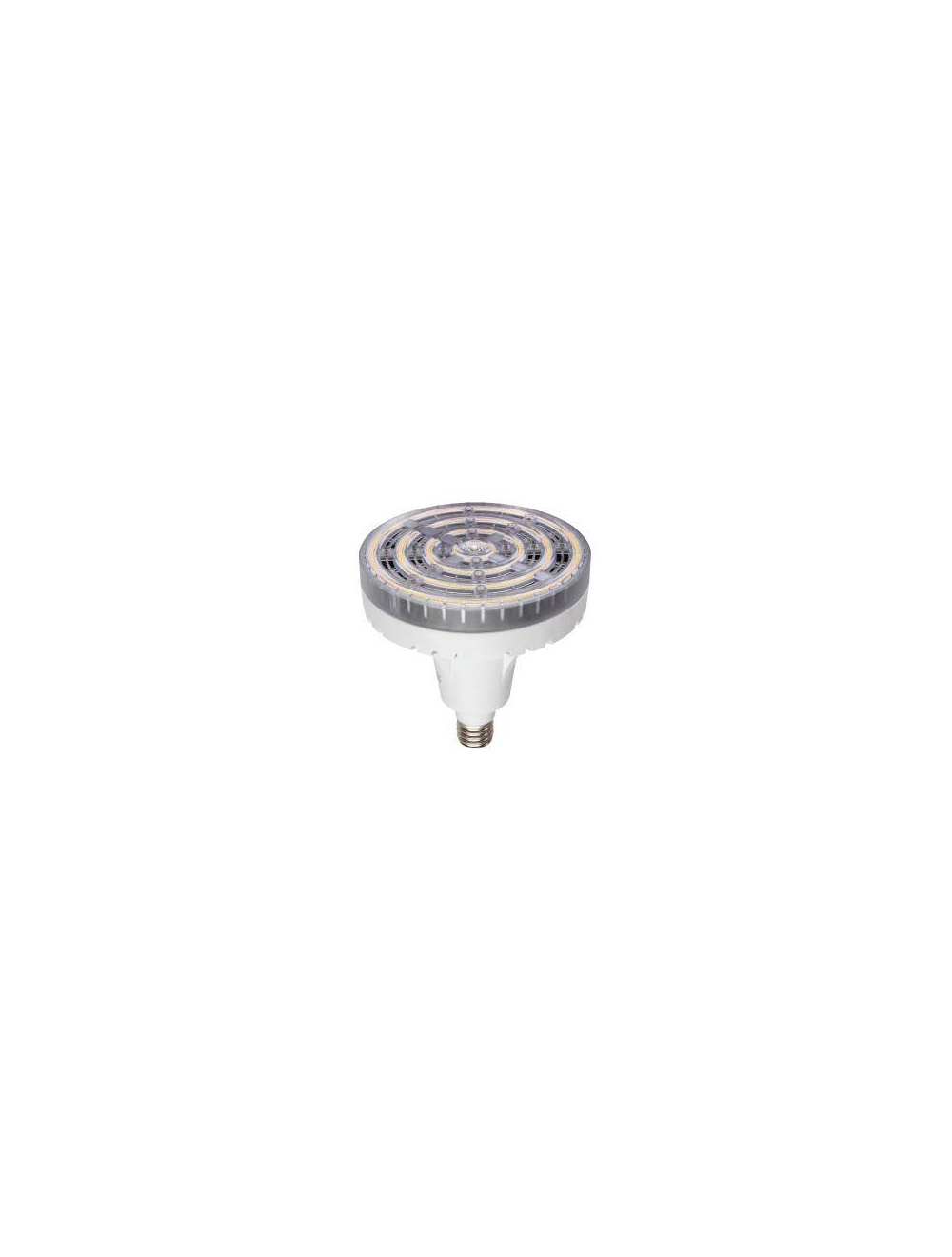

PRODUCT D E SCRIPTION: LED High Bay Retrofit Lamps are a direct replacement for HID bulbs in existing high bay fixtures. Consuming 60%-70% less energy than conventional bulbs, these ballast-bypass lamps are powered directly by the line voltage supplied to the fixture.
FEATURES :
• Replacement for metal halide Lamps
• 4kV Surge Protection
• Suitable for use with totally enclosed fixtures
• 120-277V input voltage
• Non-Dimming
CONTROLS:
Sensor port for use with Maxlite Sensors
• PIR-PT (Photocell Sensor)
• MS-PT (Microwave)
• DTDS-PT (PIR Sensor)
LISTINGS:
• UL listed for Dry/Damp Location
WARRANTY:
5-year standard warranty
Part Number | E80MH850B |
---|---|
Manufacturer | Maxlite |
Watts | 20 Watts, 80 Watts |
Lumens | 10800lm |
CRI | 80 |
Color Temperature | 5000 Kelvin |
Input Voltage | 120V-277V |
Rated Life | 25,000 hours + |
Dimmable | Yes |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 131° F |
Dimensions | 3.09"(H) x 9.25"(L) x 7.48"(W) |
Warranty | 5 Year |
Certifications | , , , |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
