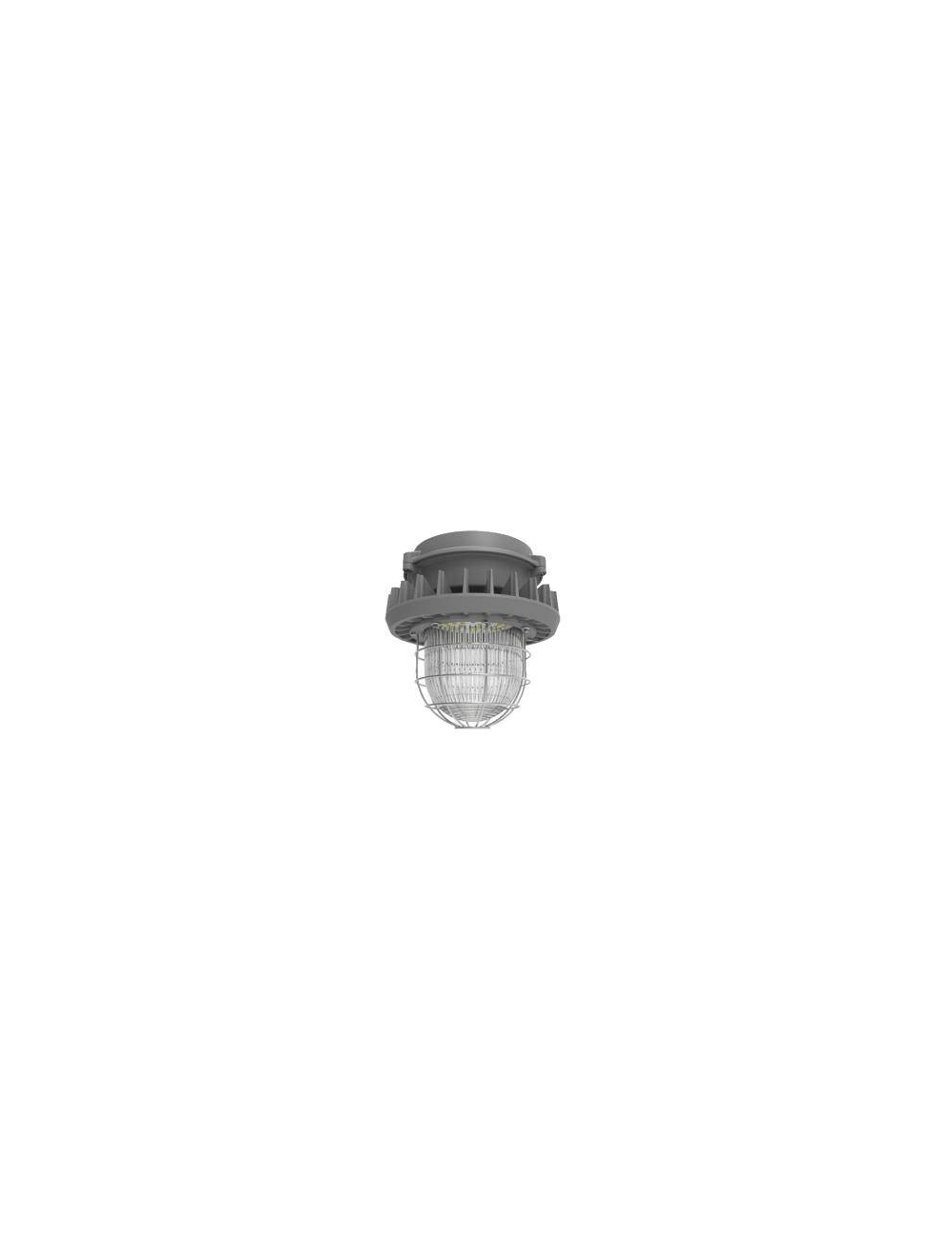

Maxlite HLRS45ULP Hazardous Area Jelly Jar, 42watts, 5000k, 103301
The HLR SERIES hazardous location family of fixtures is suitable for use in a wide range of indoor and outdoor Class I Division 2 applications. This versatily family of fixtures can be used for ceiling, pendant, wall and surface applications. The compact and low weight luminaires are safe and easy to use in harsh and hazardous locations where flammable or explosive vapors or gases are present. They are an ideal solution where long life and low maintenance are desired.
Maxlite HLRS45ULP Hazardous Area Jelly Jar, 42watts, 5000k, 103301
The HLR SERIES hazardous location family of fixtures is suitable for use in a wide range of indoor and outdoor Class I Division 2 applications. This versatily family of fixtures can be used for ceiling, pendant, wall and surface applications. The compact and low weight luminaires are safe and easy to use in harsh and hazardous locations where flammable or explosive vapors or gases are present. They are an ideal solution where long life and low maintenance are desired.
CLASSIFICATIONS & RATINGS:
• Class I, Division 2, Groups A, B, C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III, Division 1
• UL1598A Marine
• UL 8750 LED Safety
• CSA, C22.2 No. 250.0-08, 250.13
• FCC
CONSTRUCTION:
• Light weight and compact design
• Die cast aluminum body and impact resistant tempered glass
• Available in ceiling mount, wall mount (25° or 90°), adjustable bracket, adjustable pipe clamp, hanging pole options
• Stainless steel exposed fasteners • High temperature silicone gasketing
APPLICATION:
• Power Plants / Heavy Industrials
• Storage Facility / Paper Mills
• Wastewater Treatment Plants
• Loading Docks / Platforms / Shipyards
• Chemical Processing Facility
• Petrochemical Processing Facility
WARRANTY:
5-year standard warranty* (further details available at www.maxlite.com/warranties)
Part Number | HLRS45ULP |
---|---|
Manufacturer | Maxlite |
Watts | 42 Watts |
Lumens | 5760.0 |
Lumens Per Watt | 136.0 |
CRI | 70 |
Color Temperature | 5000 Kelvin |
Beam Angle | 130° |
Rated Life | 50,000 hours + |
Input Voltage | 120V-277V |
Dimmable | No |
Minimum Operating Temperature | 104° F |
Maximum Operating Temperature | 131° F |
Dimensions | 11.33" x 10.30" |
Certifications | |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
