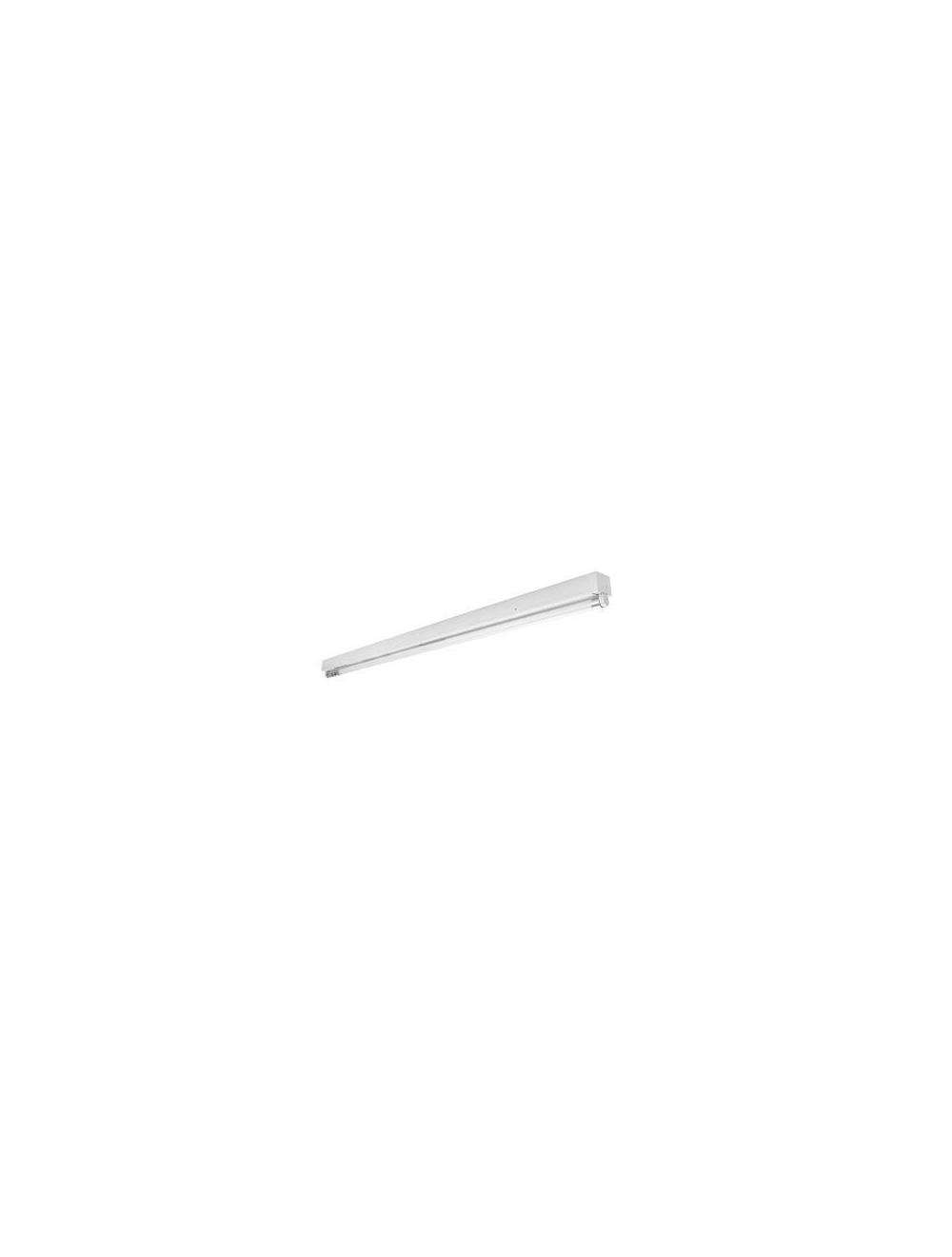

Maxlite LSS1XT5USE4802 Linear Strip Lamp Ready 1Xt5 Led 120-277V Single Ended 48L X 2W 14100561
Product Description: The Lamp Ready Linear Utility Strip provides distributors, contractors, and buyers with a UL listed fixture designed specifically for energy-saving LED T5 lamps. The fixture housing is constructed of the same durable material as commercial- and industrial-grade fluorescent versions, while adding flexibility and economy for installers in the field. Ideal for task, assembly, warehouse, and other general indoor lighting applications, the Lamp Ready fixtures support competitive light output when used with MaxLite brand T5 LED single ended lamps.
FEATURES:
• Lamps sold separately
• Lamps not included
• Five years standard warranty on parts, material, and
• workmanship
• Lead wires are 7’ for tandem wiring
• Sockets are wired in series via non-shunted sockets
• Operating humidity 10% to 80% RH non-condensing
• Suitable for Damp Locations
CONSTRUCTION:
• 24 Gauge Steel, white post painted baked on enamel
• Damp rated housings
• Supplied with ONLY non-shunted sockets and single
• ended wiring configurations. For questions contact MaxLite
• 600V rated UL Listed sockets
CONTROL:
• Optional occupancy sensor available* (on/off)
• MSO option is only for the 2 lamp strip
WARRANTY:
5-year standard warranty
| Part Number | LSS1XT5USE4802 |
|---|---|
| Manufacturer | Maxlite |
| Watts | 25 Watts |
| Dimensions | 1.58" x 46.00" x 1.97" |
| Certifications |  |
| Specification Sheet | |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
