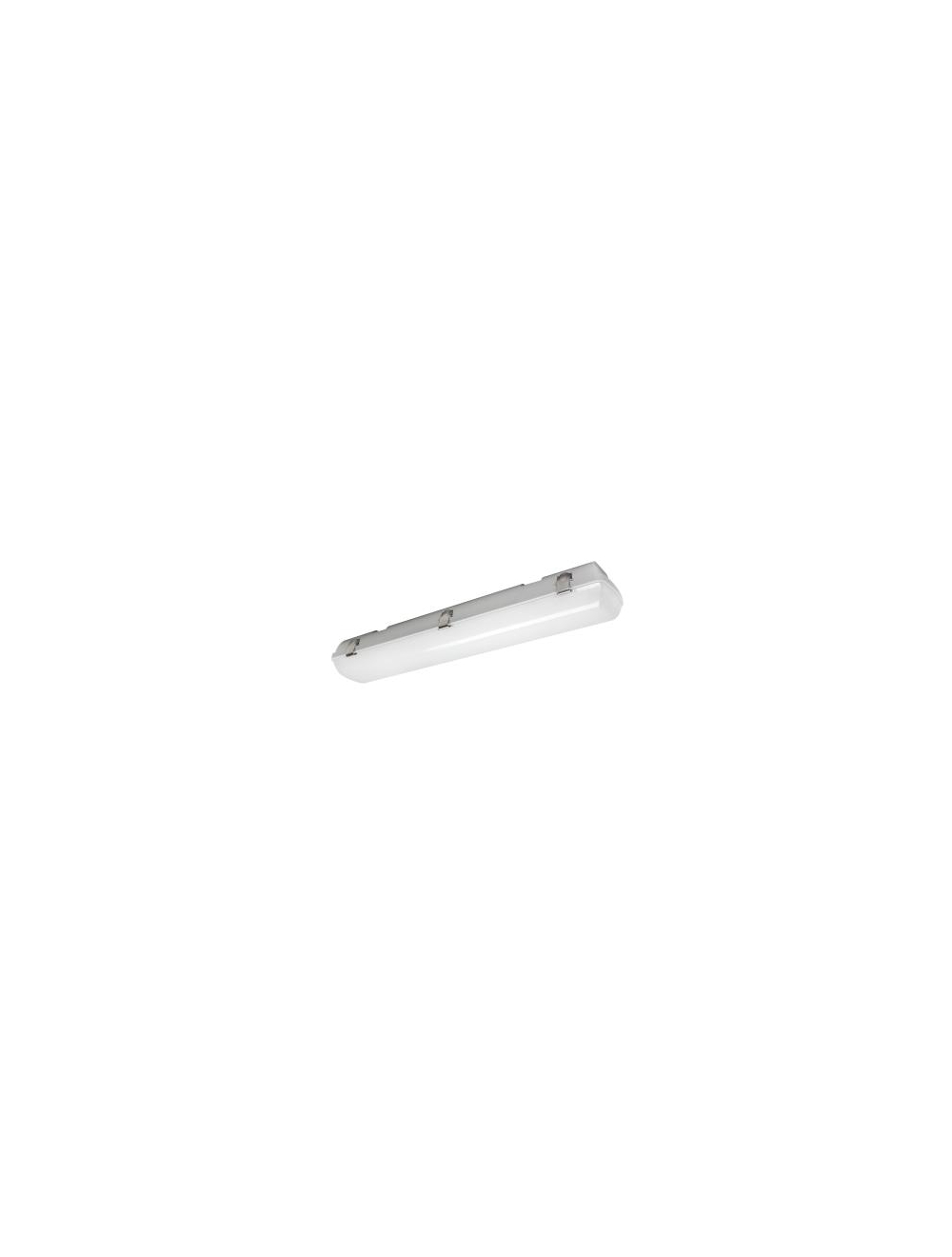

Maxlite LSV2U20WCSCR LVS Series 2' Vapor Tight 120-277 Volt Wattage and CCT Selectable - Control Ready
The MaxLite LVS Series Vapor Tight is a durable and energy-efficient LED lighting solution designed for demanding environments, offering superior protection against moisture, dust, and impact.
• CCT and Wattage selectable (9 possible combinations with each fixture)
• Controls Ready – can be paired with the new cMax controls nodes
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• L70 lumen maintenance of 100,000 hours
• Operating temperature: -40°F to +104°F , except fixtures with EM option
• Polycarbonate (PC) housing with stainless steel clips and lens hermetically sealed for IP65 rating
• ETL sanitation listed to NSF/ANSI2 standards
• On EM mode, the fixture CCT will be set to 5000K
| Part Number | LSV2U20WCSCR |
|---|---|
| Manufacturer | Maxlite |
| Watts | 20 Watts, 25 Watts, 30 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | >80 |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Input Voltage | 120V-277V |
| Dimmable | No |
| IP_Rating | IP65 |
| Rated Life | 100,000 hours + |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 40°C |
| Dimensions | 3.5" x 24.8" x 5" |
| Length | 4 |
| Width | 25 |
| Height | 5 |
| Certifications |     |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
| UPC Code | 767627008269 |
