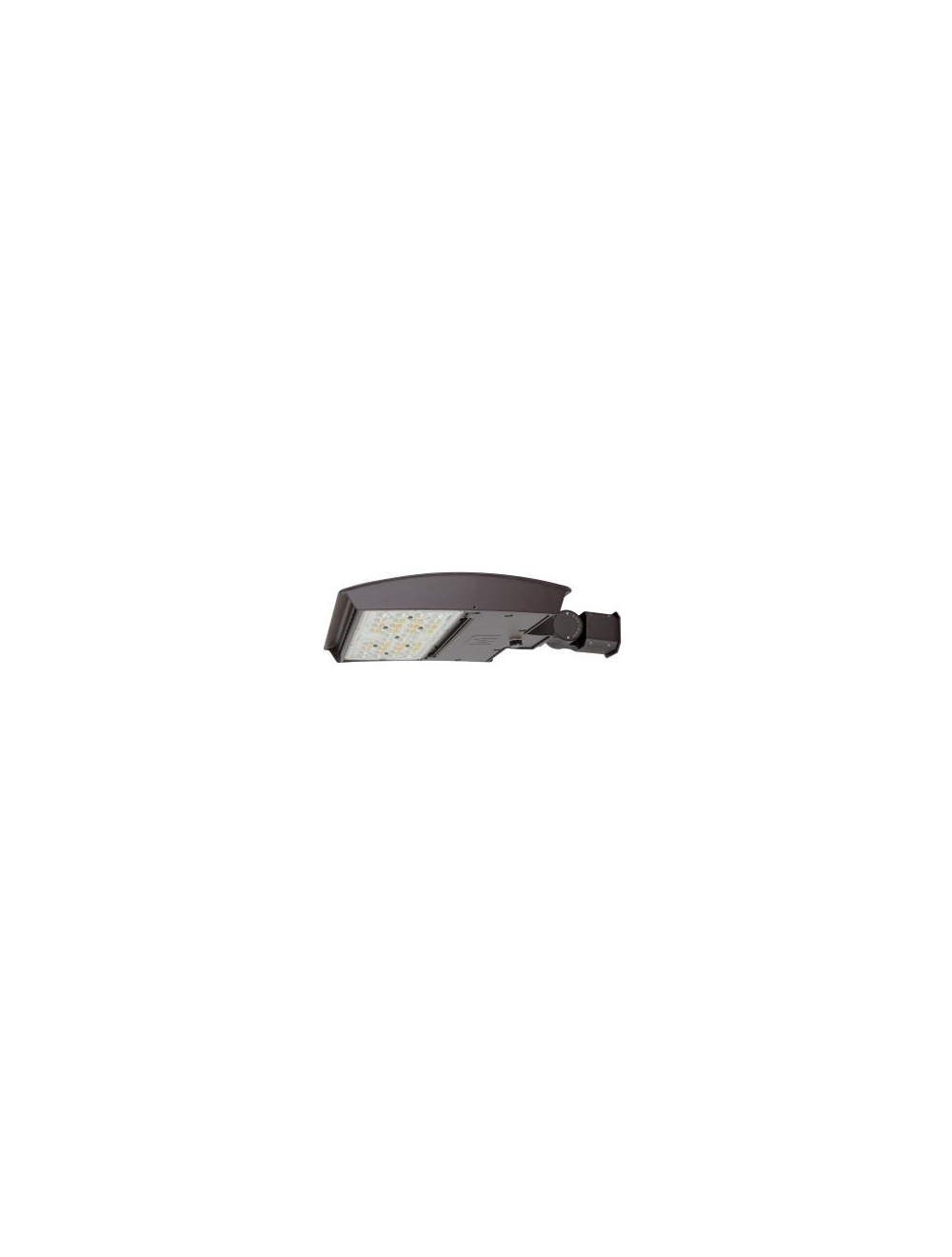

LED outdoor fixture with 75 watt output and selectable color temperature, featuring wide distribution, slipfitter mount, and durable bronze housing for area and site lighting applications.
The M Series product family provides a slim, clean design with tremendous versatility for outdoor lighting applications. A singular housing thrives as either an Area, Flood or Wall fixture depending on the optics and mounting selected. The standard product is CCT selectable, enabling the customer to choose from 3 color temperatures in a single product. It also includes a controls ready receptacle that allows the customer to add either basic controls, such as an on/off photocell or motion sensor, or network control nodes for grouping and more sophisticated control functions. Beyond the standard features, additional options and accessories include high voltage (277-480V), battery backup, visual comfort lens, back light shield and visors. The M Series family provides a comprehensive site design solution for your outdoor lighting needs.
| Part Number | M75UW-CSBKCR |
|---|---|
| Manufacturer | Maxlite |
| Watts | 75 Watts |
| Lumens | 9648 |
| CRI | ≥70 |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Dimmable | No |
| Input Voltage | 120V-277V |
| IP_Rating | IP66 |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 122°F |
| Dimensions | 12.2"x3.21"x13.5" |
| Warranty | 10 Year |
| Certifications | ![]() ![]() |
| Lead Time | In Stock - Quick Ship |
