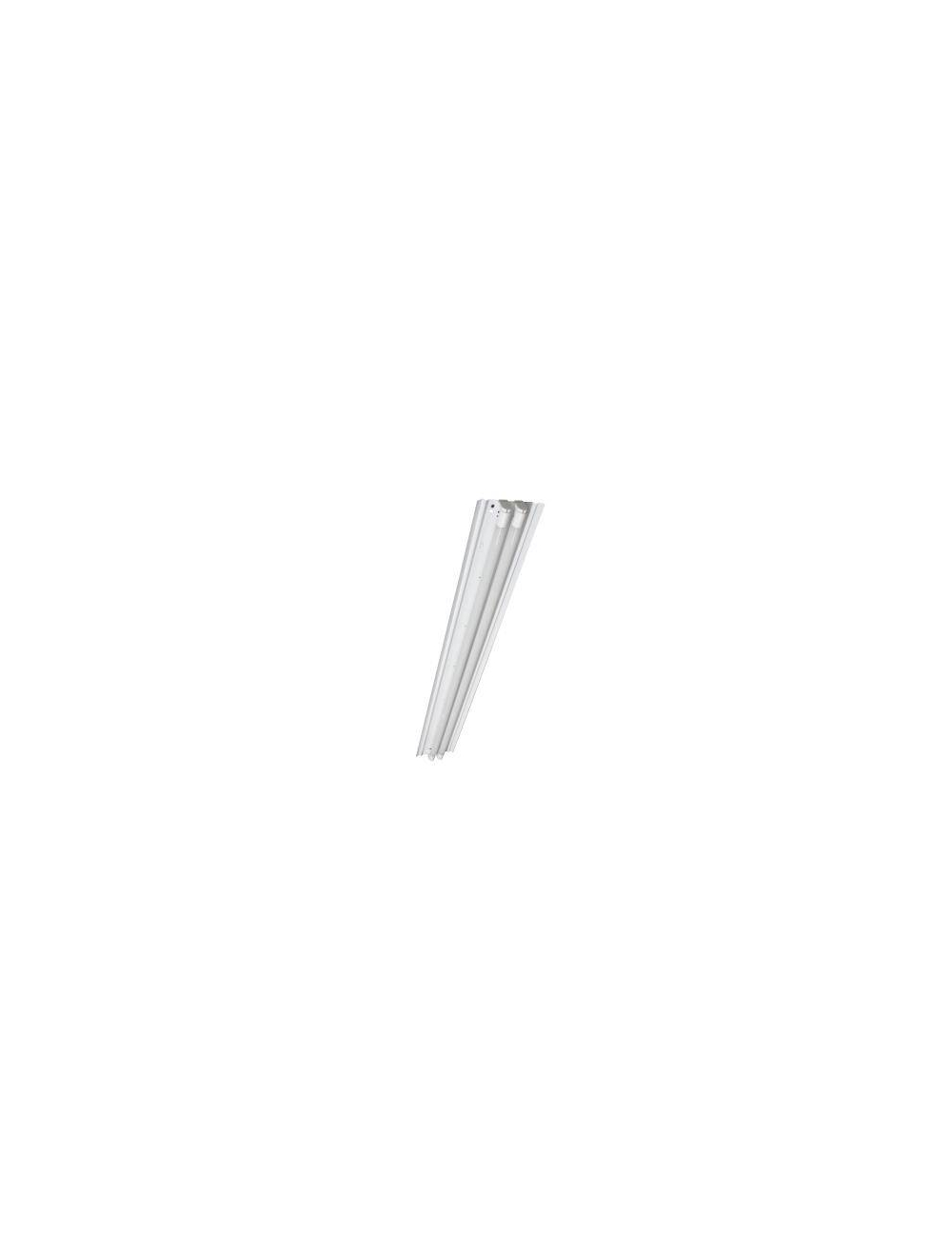

PRODUCT DESCRIPTION: The MaxLite Lamp Ready Retrofit Strip provides a UL listed retrofit kit for industrial linear fixtures that is engineered to operate the latest single ended LED T8 lamps supplied separately. Able to be used to retrofit 4’ linear fixtures or with a tandem bracket for 8’ linear fixture, these retrofit kits come pre-wired for single ended operating LED lamps for contractor ready installation. These retrofit kits are packaged in 2 packs with a tandem bracket included for ease of installation.
FEATURES:
• Sockets are wired in series via non-shunted sockets
• Retrofits into preexisting linear fixtures
• Tandem bracket can be used to turn two 4’ sections into 8’ retrofit
• Product packaged as 2 pack of 4ft strips for easier 8ft retrofit
• 5 year limited warranty
CONSTRUCTION:
• Engineered and UL rated to take up to 22w per set of lamp holders
• Wiring is 18 AWG solid to allow 120-277v operation where lamp specification allows
• Sockets rated to 660w , 600V, UL Listed
WARRANTY:
5-year standard warranty
Part Number | RS-482XT8 |
---|---|
Manufacturer | Maxlite |
Watts | 22 Watts |
Input Voltage | 120V-277V |
Dimmable | No |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 104°F |
Dimensions | 0.35"(H) x 48.23"(L) x 6.38"(W) |
Lead Time | In Stock - Quick Ship |
Certifications | , |
Specification Sheet | |
Warranty | 5 Year |
