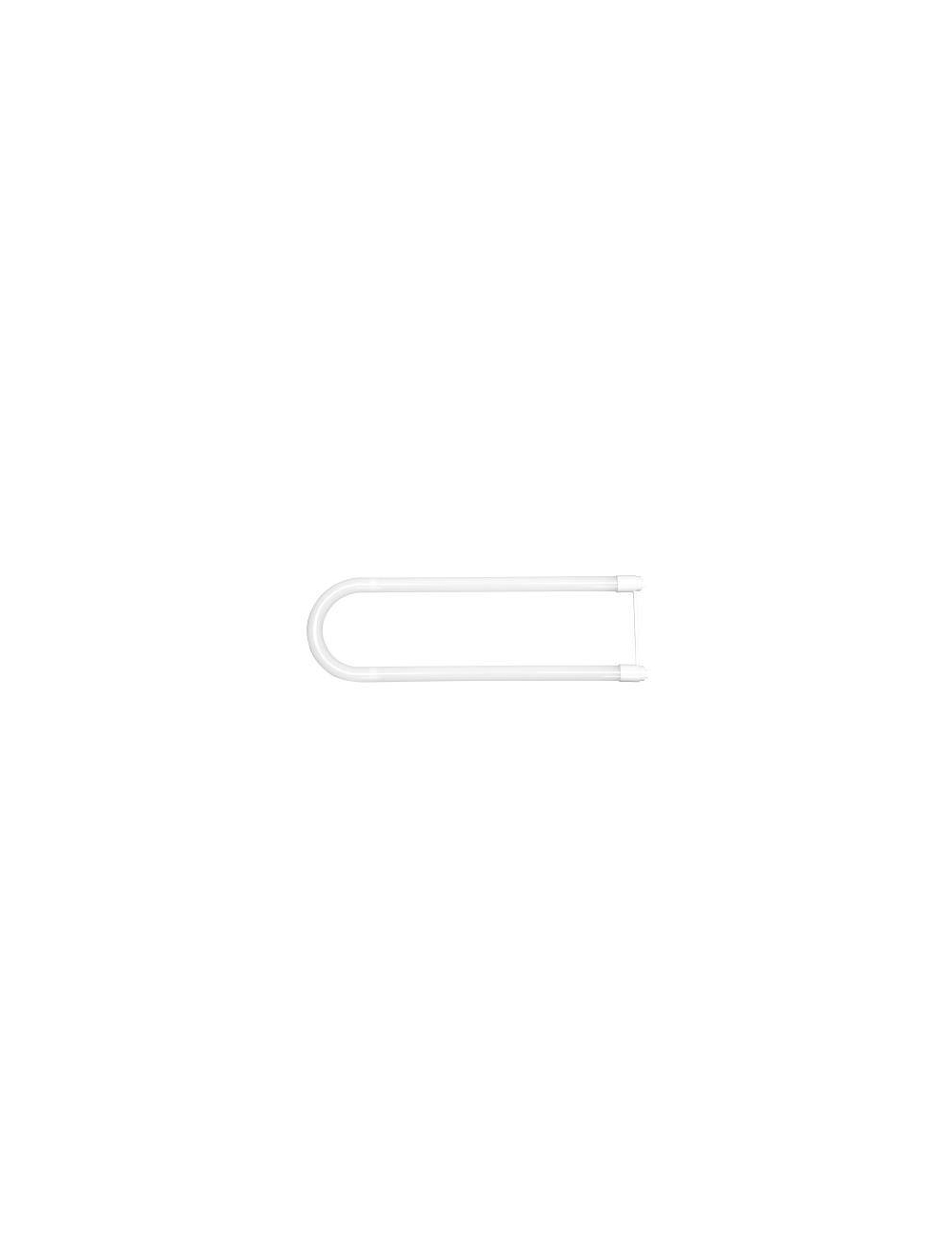

Maxlite U15.5T8SE235 LED T8 U-Bend, 15.5watts, 3500k
PRODUCT DESCRIPTION:
The MaxLite LED U-Bend Ballast Bypass Lamp is an energy-saving, long-lasting replacement for fluorescent tubes in T8 U-bend troffers, including fully enclosed luminaires. Quick and simple to install, the lamp works in bi-pin socketed fixtures once the ballast is disconnected. The lamp is designed with an ultra-compact light engine that distributes 1,800 lumens of high quality light using an extra wide, 320-degree beam angle. An integral driver is stored within the lamp’s cap to optimize thermal performance and eliminate dark spots, producing bright, even illumination that runs continuously from end to end of the U-shaped tube. The lamp is built with a shatterproof, polycarbonate lens that enhances safety in healthcare and food service applications.
Maxlite U15.5T8SE235 LED T8 U-Bend, 15.5watts, 3500k
PRODUCT DESCRIPTION:
The MaxLite LED U-Bend Ballast Bypass Lamp is an energy-saving, long-lasting replacement for fluorescent tubes in T8 U-bend troffers, including fully enclosed luminaires. Quick and simple to install, the lamp works in bi-pin socketed fixtures once the ballast is disconnected. The lamp is designed with an ultra-compact light engine that distributes 1,800 lumens of high quality light using an extra wide, 320-degree beam angle. An integral driver is stored within the lamp’s cap to optimize thermal performance and eliminate dark spots, producing bright, even illumination that runs continuously from end to end of the U-shaped tube. The lamp is built with a shatterproof, polycarbonate lens that enhances safety in healthcare and food service applications.
FEATURES:
• Power: 15.5W, 32W Fluorescent replacement
• Lumens: ≥1,800
• Efficacy: ≥116
• CRI: ≥80
• Input Voltage: 120-277V
• Color Temperature: 3500K, 4000K and 5000K
• Beam Angle: 240°
• Color Rendering Index (CRI): ≥85
• Non dimmable
• Base: Two pin (G13)
• THD <20%
• Power Factor: ≥0.90
• Mercury and Lead-free, UV and IR free
• Instant on
• Shatterproof polycarbonate frost lens construction
• Full illumination around bend, no dark spot
• Operating Temperature: -4°-113°F
• Suitable for use in damp locations
• Suitable for use in totally enclosed recessed fixture
• Easy and fast installation
• Rated Lifetime: 50,000 hours
Part Number | U15.5T8SE235 |
---|---|
Manufacturer | Maxlite |
Watts | 15 Watts |
Color Temperature | 3500 Kelvin |
CRI | 80 |
Lumens | 1800 |
Lumens Per Watt | 116 |
Beam Angle | 240° |
Rated Life | 50,000 hours + |
Input Voltage | 120V-277V |
Dimmable | No |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 113°F |
Dimensions | 25.50" x 1.10" |
Lead Time | In Stock - Quick Ship |
Certifications | , , |
Specification Sheet | |
UPC Code | 767627920127 |
Warranty | 5 Year |
