Features:
• CCT selectable between 3000K, 4000K or 5000K
• Controls Ready - simple plug and play Sensor Receptacle/Socket enables installation of c-Max control nodes without changing the fixture
• Sealed housing - control nodes are mounted internally without impacting the fixture sealing or aesthetics
• High Voltage Option: 277-480V
• Battery Backup Options - 0°C and -20°C
• Avi-On Network Controls Option available
• CRI: ≥80

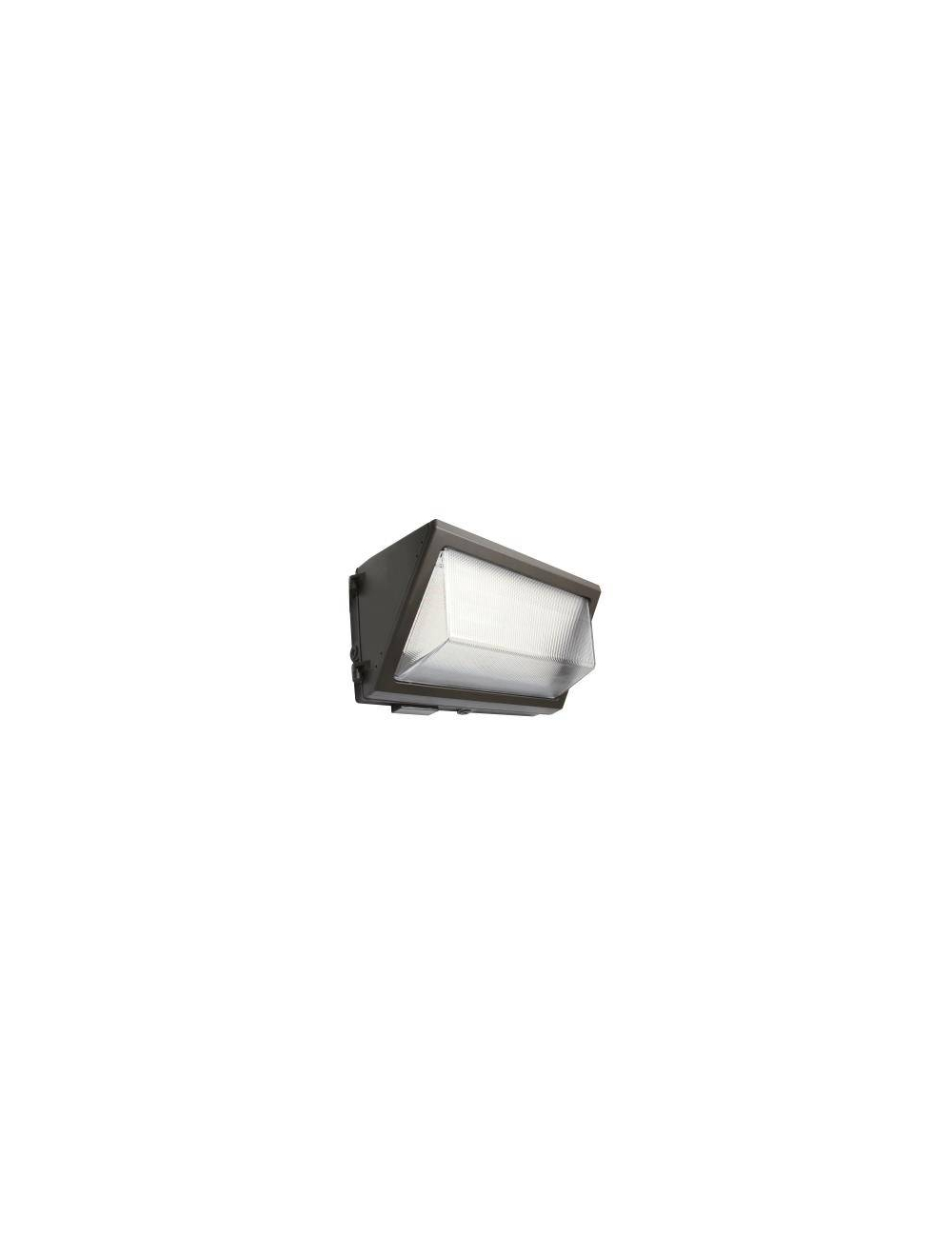

Product Description: The new generation of WallMax Open Face LED Wall Packs provides flexibility for distributors and contractors with field-selectable CCTs, wattages (55W and 120W models) and field-installable controls. The housing has been enlarged to cover HID fixture footprints and accommodate battery backup in all sizes. The Wall Packs feature a controls-ready receptacle compatible with c-Max controls. The simple plug-and-play sensor receptacle enables c-Max control nodes to be added at the time of installation, or in the future. as well as allowing for future control upgrades without changing the fixture. The receptacle is located at the bottom of the fixture and looks through a window, which minimizes the impact on the fixture aesthetics. A cover is included to hide the window when controls are not used.
Part Number | WPOP28U-CSBCR |
---|---|
Manufacturer | Maxlite |
Watts | 28 Watts |
Lumens | 3723lm |
CRI | 80 |
Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
Input Voltage | 120V-277V |
Rated Life | 54,000 hours+ |
Minimum Operating Temperature | -40° F |
Maximum Operating Temperature | 113°F |
Dimensions | 9.33 x 14.39 x 7.40 |
Certifications | , , , , |
Warranty | 10 Year |
Specification Sheet | |
Lead Time | In Stock - Quick Ship |
