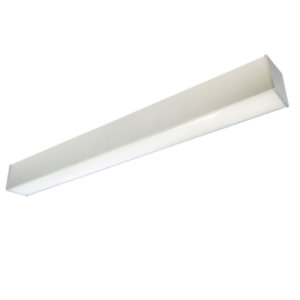

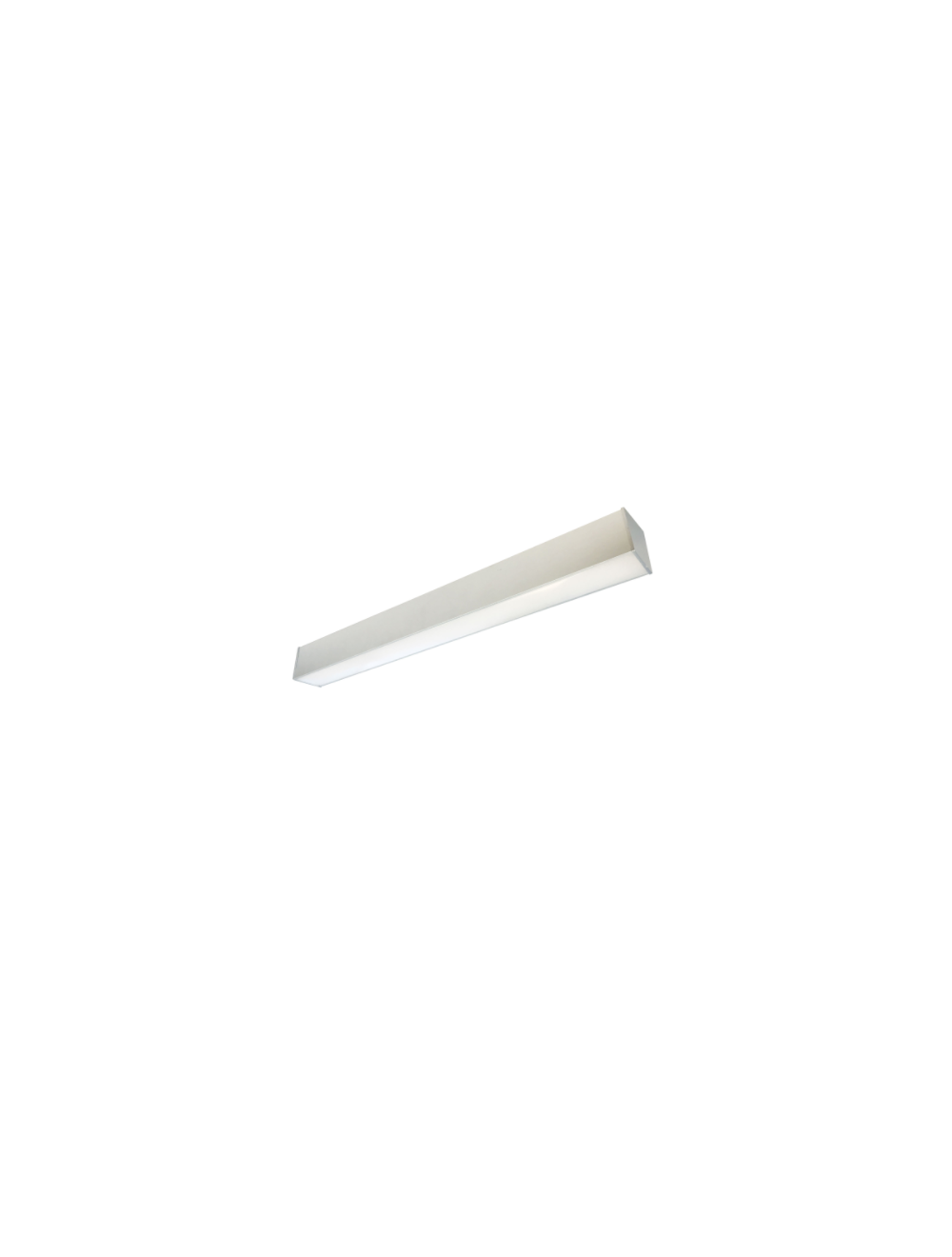

L-Line series offers a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution will evenly illuminate surfaces with a diffused lens, making the L-Line ideal for commercial, retail, healthcare and education applications. Available in surface or pendant mounting options. Series can be connected with seamless luminous L,X or T connectors.
FEATURES · 2100lm, 4200lm or 8400lm LED packages · 3000K, 3500K, 4000K · Surface mount or pendant kits available · 0-10V dimming · 120-277V input · DLC Listed
L-Line series offers a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution will evenly illuminate surfaces with a diffused lens, making the L-Line ideal for commercial, retail, healthcare and education applications. Available in surface or pendant mounting options. Series can be connected with seamless luminous L,X or T connectors.
FEATURES · 8400lm LED package · 3000K, 3500K, 4000K · Surface mount or pendant kits available · 0-10V dimming · 120-277V input · DLC Listed
SPECIFICATION
Construction: One piece extruded aluminum housing with solid end caps. Includes diffused polycarbonate lens for symmetrical light distribution. All components are aluminum finish except for surface mount J-box cover which is white.
Mounting: Luminaires include an extruded slot for surface mounting or pendant mounting. Junction box cover is available for surface mounting applications. When pendant mounting, it is recommended to use two hanging points (NLIN-CCA) per fixture. Power mounting kit includes two hanging points. The system can not be powered at the L, T, and X connectors.
ELECTRICAL
Part Number | NLIN-8 |
---|---|
Manufacturer | Nora Lighting |
Watts | 78 Watts |
Lumens | 8400lm |
CRI | 80+ |
Color Temperature | 3000 Kelvin, 3500 Kelvin, 4000 Kelvin |
Beam Angle | Not Specified |
Input Voltage | 120V-277V |
Minimum Operating Temperature | 0˚C |
Maximum Operating Temperature | 30˚C |
Dimensions | 8' L x 2-1/4" W x 2-3/8"D (see image) |
Warranty | 5 Year |
Certifications | , |
UPC Code | 732180004393 |
Lead Time | In Stock - Quick Ship |
