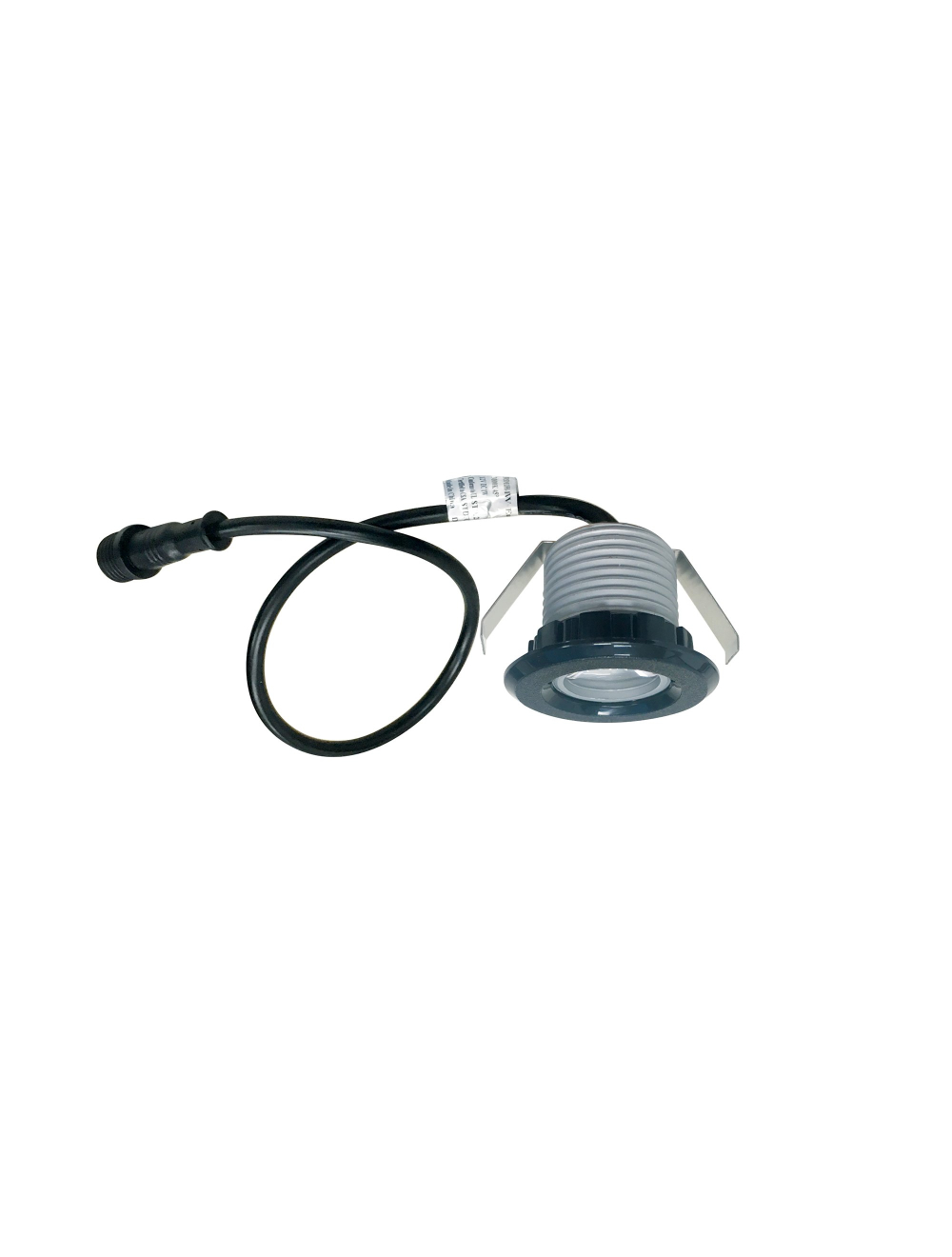

M1 miniature recessed series features quality and convenience with easy installation for indoor or outdoor applications. The IC rated M1 modules are excellent for niche lighting. Luminaires include four plastic downlight trims, four optics and 6" quick connect. Series is available in 2700K or 3000K and requires a Class 2 12V DC driver.
M1 miniature recessed series features quality and convenience with easy installation for indoor applications. Luminaires include four plastic downlight trims, three optics and 6″ quick connect. Series is available in color temperatures 2700K or 3000K and requires a 12VDC dimmable driver.
Features
Lumens / Wattage: 100lm / 2W
Color Temperature: 2700K, 3000K
CRI: 90+
Optics: Four Field Changeable Optics included with each (15° Spot, 45° Narrow Flood – installed, 60° Flood – frosted, 60° Flood – clear)
Finish: Each fixture includes (2) black and (2) white trims in round and square
Optional Trims:
NM1-RSS: Round Stainless Steel Trim
NM1-SSS: Square Stainless Steel Trim
NM1-RSSD: Round Stainless Steel Indicator Trim
NM1-RAEYELID: Round Scoop Trim
Accessories:
NM1-F: New Construction Frame-In Plate
NM1-TM6: Splitter Cable (1 input – 6 output)
NM1-WH6: Wire Harness System (1 input – 6 output)
NM1-EXT: Extension Cables (6″ to 240″)
Drivers:
NM1-DVR12: 12V 12W Non-Dimmable Hardwire Driver
NAPKED-5040HW: 12V 35W Dimmable Hardwire Driver
NAPKED-5060HW: 12V 60W Dimmable Hardwire Driver
Part Number | NM1-170 |
---|---|
Manufacturer | Nora Lighting |
Recessed Can Size | 1 Inch |
Watts | 2 Watts |
Color Temperature | 2700 Kelvin, 3000 Kelvin |
Beam Angle | 15°, 45°, 60° |
Dimmable | Yes |
Input Voltage | 12V |
Minimum Operating Temperature | 0° |
Maximum Operating Temperature | 40°C (Undercabinet installation) 25°C (Cabinet and IC installation) |
Dimensions | 1-1/4” x 3/4" x 1-5/8" |
Certifications | , , , , |
Warranty | 5 Year |
UPC Code | 732180029952 |
Lead Time | In Stock - Quick Ship |
