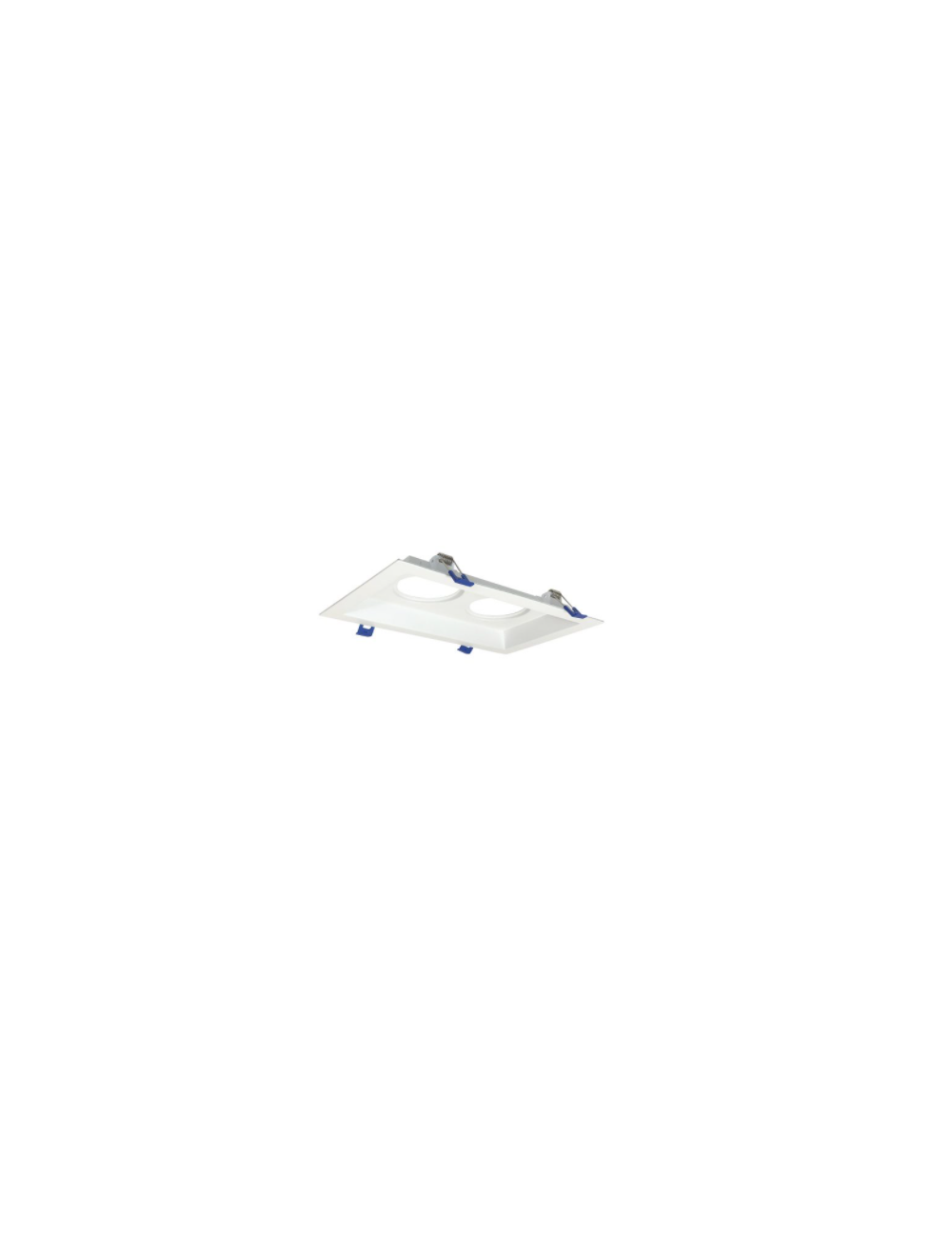

Nora NM2-MLS2 M2 Multiple Lighting System Two Head Plate
M2 Modular LED Multiple Lighting System (MLS) allows multiple LED luminaires to be installed in one recessed trim without a large housing. M2 Multple plates are IC rated and accept one, two or three round M2 LED luminaires up to 600 lumens per head.
FEATURES
- No housing required
- IC rated
- Easy installation for remodel or new construction applications
- Each luminaire includes individual drivers with quick disconnect allows for extended lengths
- 2700K or 3000K @ 90+ CRI
- Triac or ELV dimming
- 5-year limited warranty
- ENERGY STAR certified
Converts (3) M2 LED Round Luminaire into Multiple Lighting System without the need for a housing. Each M2 LED luminaire includes it’s own dedicated junction box and dimmable driver.
Lumens per head: 400lm, 500lm or 600lm per head
Finish: Matte Black or Matte Powder White
Compatible Fixtures:
NM2-2RG: M2 LED Adjustable Gimbal
NM2-2RDC: M2 LED Open Downlight
NM2-2RDCS: M2 LED Lensed Downlight
NM2-2R270: M2 LED Adjustable Elbow
| Part Number | NM2-MLS2 |
|---|---|
| Manufacturer | Nora Lighting |
| Watts | 6 Watts, 8 Watts |
| Lumens | 400lm, 500lm, 600lm |
| CRI | 90+ |
| Color Temperature | 2700 Kelvin, 3000 Kelvin |
| Beam Angle | Not Specified |
| Dimmable | Yes |
| Input Voltage | 120V |
| Rated Life | 35,000 hours + |
| Minimum Operating Temperature | 0°C ambient temperature |
| Maximum Operating Temperature | 40°C ambient temperature |
| Dimensions | See Image |
| Certifications |  ,  ,  |
| Warranty | 5 Year |
| UPC Code | 732180999446 |
| Lead Time | In Stock - Quick Ship |
