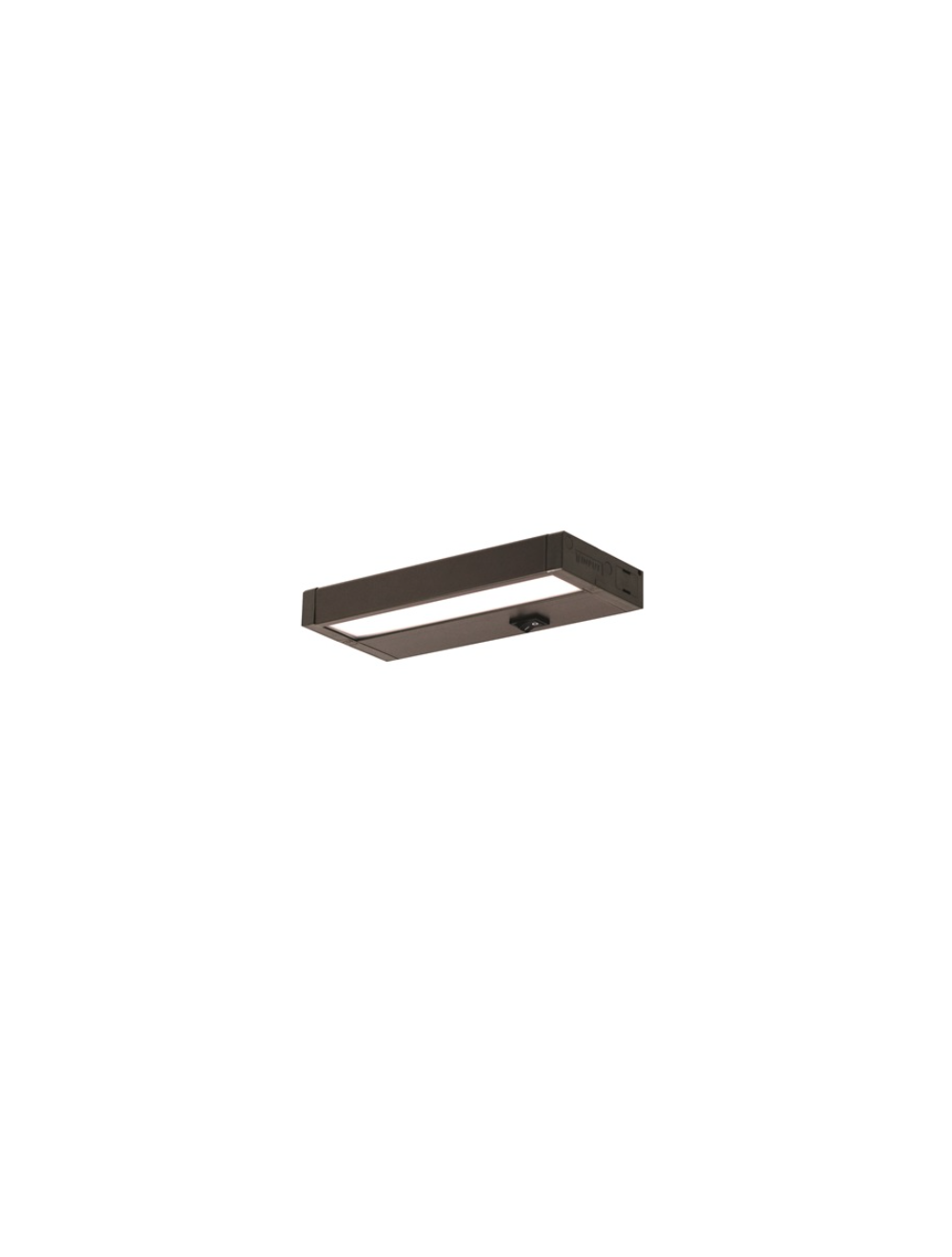

LEDUR LED undercabinet uses edge-lit placement of diodes to give a Uniform Reflectance of light. The LEDUR produces an even 360 lumens/ 7 watts average per foot. Dimmable, no UV and forward heat make LEDUR the perfect energy saving lighting solution in undercabinet and shelf lighting. The LEDUR’s uniform reflectance is excellent when used undercabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise.
FEATURES · Edge-lit design eliminates LED diode image · 2700K, 3000K or 4000K @ 90+ CRI · 360 Lumens/ 7 watts per foot average · Available in 6 different lengths; 8-3/4”, 11-1/4”, 18-1/4”, 22-1/4”, 32-3/4” & 42” · Available in Dark Bronze or White Finish · Built-in on/off rocker switch · Linkable up to 400 Watts fixtures · 3 wire grounded electrical port on both ends for power or linking · Quick connect stab-in connectors included · Captive Screws for easy moutning · Integral electronic dimmable driver
LEDUR series of 120V dimmable Under Cabinet LED lighting is easy to retrofit existing Fluorescent, Incandescent, Halogen, or Xenon undercabinet lights. LEDUR’s built in LED driver and large knockout plate in the back makes LEDUR easy to install in retrofit or new construction applications. A heavily frosted lens diffuses the LED image and softens the light output. Available in five sizes, two finishes, and warm 2700K, 3000K or cool 4000K.
Features:
• Edge-Lit design eliminate diode image
• Excellent color rendition – 90+ CRI
• 350+ Lumens and 7 Watts per foot average
• 2700K, 3000K (Warm) and 4000K (Cool) color temps
• Available in 6 lengths from 8-3/4″ to 42″
• Low 1″ depth by 3-1/2″ width
• Dark Bronze or White finish
• Frosted Lens
• Built-in On/Off switch
• 120V Dimmable
• Linkable up to 400 Watts
• 3-Wire grounded electrical port on both ends for power or linking
• Can be directly hardwired with Romex™ feed
• Each unit includes Romex™ Connector and End-to-End Connector
• Includes Stab-In quick connectors
• Easy to mount with captive screws
• Integral electronic driver
• Easy to mount with captive screws
• 50,000 hours rated lamp life
Included with every LEDUR:
(1) 120V LEDUR,
(1) End to End Connector [NUA-803],
(1) On/Off Rocker switch
Voltage: 120V DC
Power Consumption: 7W per foot
Lumens: 350+ Lumens per foot average
Color Rendering Index: 90+ CRI
Light Source: Edge-Lit LEDs
Life Expectancy: 50,000 hours
Maximum Run Length: 400 Watts linked fixtures
Color Temperature: Warm White (2700K), White (3000K), Cool White (4000K)
Dimensions:
Length: 11-1/4″
Width: 3-1/2″
Height: 1″
Listing:
cULus Listed for Dry location
Order example:
NUD-8811/27BZ: 11″ LEDUR LED 120V Under Cabinet Light, 2700K, Bronze finish
NUD-8811/27WH: 11″ LEDUR LED 120V Under Cabinet Light, 2700K, White finish
NUD-8811/30BZ: 11″ LEDUR LED 120V Under Cabinet Light, 3000K, Bronze finish
NUD-8811/30WH: 11″ LEDUR LED 120V Under Cabinet Light, 3000K, White finish
NUD-8811/40WH: 11″ LEDUR LED 120V Under Cabinet Light, 4000K, White finish
Part Number | NUD-8811 |
---|---|
Manufacturer | Nora Lighting |
Input Voltage | 120V |
Watts | 6 Watts |
Lumens | 337lm |
Color Temperature | 2700 Kelvin, 3000 Kelvin, 4000 Kelvin |
Beam Angle | Not Specified |
CRI | 90+ |
Rated Life | 50,000 hours + |
Dimmable | Yes |
Dimensions | 3-1/2" x 1" x 11-1/4" |
Certifications | , |
Warranty | 5 Year |
Lead Time | In Stock - Quick Ship |
UPC Code | 732180236985 |
